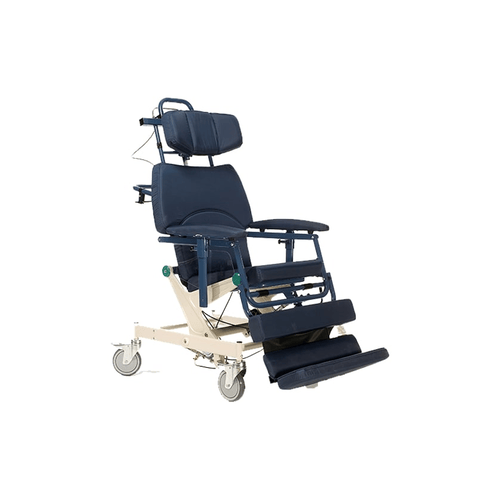

H-250 Patient Transfer and Consultation Chair

The H-250 Patient Transfer and Consultation Chair is a versatile, convertible seating solution designed specifically for safe and efficient patient transfers and consultations in clinical, hospital, and home care settings. With its innovative tilt‑in‑space functionality and no‑lift design, the H-250 easily converts from a stretcher-like prone position to an upright chair, enabling a single caregiver to perform transfers without compromising patient safety or comfort.

Key Features:

• Convertible Design:

  • Transforms seamlessly from a flat (stretcher) position to an upright, mobile chair, supporting early patient mobilization and safe lateral transfers.
  • Tilt‑in‑space capability allows unlimited repositioning, which helps improve blood circulation and reduce the risk of pressure ulcers.

• Ergonomic Construction:

  • Contoured seating with high-density foam cushioning and adjustable headrest (up to 7 inches/18 cm) for enhanced patient comfort.
  • Designed to accommodate a wide range of patient heights (approximately 127–198 cm) while maintaining proper support.

• Robust & Lightweight:

  • Weighs approximately 56 kg (123 lbs) with a durable steel or aluminum frame, ensuring longevity and ease of handling.
  • Maximum patient weight capacity of up to 250 lbs (113 kg) provides safe support for a variety of users.

• User-Friendly Operation:

  • Simple electronic or manual controls allow quick adjustments of the chair’s height (ranging from 53–60 inches or 135–152 cm in chair mode) and leg positioning.
  • Designed to be operated by a single caregiver, reducing the physical strain associated with patient transfers.

• Enhanced Safety Features:

  • Secure locking casters and integrated side rails add stability and protection during transfers and repositioning.
  • Provides a no-lift solution that minimizes the risk of injury to both patients and caregivers.

Specifications (Approximate):

• Overall Dimensions (Prone Mode):
  • Length: 72.5–80 inches (184–203 cm)
  • Height: 27 inches (68 cm)
• Overall Dimensions (Chair Mode):
  • Height: 53–60 inches (135–152 cm)
  • Width: 24 inches (61 cm)
• Seat Width: Approximately 17 inches (43 cm)
• Headrest Adjustable Height: 7 inches (18 cm)
• Weight: ~56 kg (123 lbs)
• Maximum Patient Weight: 250 lbs (113 kg)

• This portable stadiometer is simple to set up and easy to use. It is durable and lightweight all-plastic construction, disassembles quickly, pieces fold neatly into footplate for easy carrying
• There's no wall fastening necessary and it may be positioned against a wall or completely free standing due to its large floor plate
• The stadiometer measures from 8 inch – 82 inch and 20 cm – 210 cm with 0.125 in / 0.1 cm graduations visible on both sides of the height rod
• This portable height measuring rod is lightweight and easily carried - ideal for any traveling medical professional
• A window in the Stadiometer's headpiece allows for a clear view of the height reading

• Brushed Steel Finish
• 3L capacities
• Gripped pedal
• Easy clean plastic bucket
• Lip for hiding excess bag

• Weight - 105 kg
• Dimensions - 92 cm Wide x 68 cm Deep x 139 cm High (93 cm to the table surface)
• Packaging Dimensions - 105 cm Wide x 75 cm Deep x 160 cm High
• Operating voltage supply - 110 to 240 V~, 47 to 63 Hz (12 to 6 A)
• Power input - 120 W typically (max. 1.2 kW with auxiliary outlets used)
• Battery autonomy - 90 min typically
• Auxiliary power outlets - 4, with automatic protection
• O₂, N₂O and Air supply - 2.7 to 6.9 bar (39.1 to 100 psi)
• Screen - TFT 18.5" (47 cm) projected capacitive touchscreen
• Protection class - Class I, gas analyser type BF defibrillation proof
• Classification - Class II b
• Storage - One front drawer with self-brake system and two back cabinets with door
• Lighting - LED bar below the screen controlled from the touchscreen
• Auxiliary integrated systems - Auxiliary 02 flow meter (0-15 L/min), Auxiliary 02 suppy valve (NF standard) and Suction device
• Communication ports - 1 x RS-232, 2 x USB, 1 x LAN Ethernet

• Fresh gas flow - 0 and 0.1 to 18 L/min 02/N20/Air
• Accuracy - 0.1 to 0.5 L/min = ±0.05 L/min; 0.5 to 18 L/min = ±10 %
• 02 concentration - 21 to 100% vol. with Air, 25 to 100% with N20 (minimum 200 ml/min 02)
• 02 Safety fresh gas (backup) - 0-0.2-0.4-0.7-1-1.5- 2- 3- 4- 6- 8-10-12-15 L/min 02
• 02 flush (+02) - 40 L/min standard (adjustable 25 - 75 L/min upon requirement)

• Autoclavable - 134 °C
• Weight of breathing system - 9.8 kg
• C02 absorber volume - 1.5 L
• Leakage - < 150 mL/min (at 30 hPa)
• Pressure limiting valve APL - 0 to 70 hPa
• Pressure relief valve - 125 hPa
• Vacuum safety valve - 0.3 hPa
• resistance at 60L/min - 5.80 hPa
• resistance at 60L/min - 2.90 hPa
• resistance at 30L/min - 3.55 hPa
• resistance at 30L/min - 0.89 hPa
• Internal Compliance at 30 hPa - 15 mL

• Volume Controlled Ventilation (VCV)
• VC Synchronized Intermittent Mandatory Ventilation (VC-SIMV)
• VC-SIMV with Pressure Support (VC-SIMV-PS) *

• Pressure Controlled Ventilation (PCV)
• PC Synchronized Intermittent Mandatory (PC-SIMV)
• PC-SIMV with Pressure Support (PC-SIMV-PS) *

• Adaptive Pressure with Volume Guaranteed (APVG) *
• APVG Synchronized Intermittent Mandatory (APVG-SIMV) *
• APVG -SIMV with Pressure Support (APVG-SIMV-PS) *

• (other trade names: PS, ASB, SPS, IPS)

• Manual ventilation through the CABS system (Auto/Manual software controlled)
• Spontaneous ventilation either through the bellows (auto mode) or through the bag
• (manual mode) Manual ventilation through the external fresh gas outlet for non-rebreathing systems (Bain, Mapleson, ...)

• Tidal volume - 5 to 1500 mL
• Inspiratory pressure - 0 to 68 hPa
• Ventilation frequency ­- 3 to 120/min
• Inspiratory time - 0.05 to 16.6s
• l:E ratio - 5:1 to 1:8
• Inspiratory pause - 0 to 60%
• Inspiratory flow - max. 150 L/min
• PEEP - 0 to 30 hPa
• Flow trigger - 0.2 to 15 L/min
• Pressure support - 5 to 50 hPa
• Ramp time - 0.1 to 2 s
• Maximum pressure - 0 to 68 hPa

• 5" (47 cm) projected capacitive touchscreen, supported on a 360° rotating and 2 axis tilting arm.
• Measurements displayed: Peak pressure; Plateau pressure; Mean pressure; Expiratory minute ventilation; Expiratory tidal volume; Inspiratory tidal volume; Expiratory volumeter; Breathing rate; Compliance and Resistance (in VC modes); Patient info (age, weight, MAC, Class ASA); Connected sensors; Battery status; Power supply status; Gases supply pressures for 02, N20 and Air; Inspiratory and expiratory concentration of 02, N20, C02 and Anaesthetic gas*
• Parametres charted as curves (up to 3 simultaneously): Airway pressure; Expiratory flow; Inspiratory flow; Volume; Fresh gases (Rotstyle); Concentration of 02, N20, C02 and Anaesthetic gas*; Trends: Minute volume, MAC and gases (02, N20, C02 and Anaesthetic gas).
• Display for the performance of the hospital Anaesthetic Gas Scavenging System (AGSS).
• Configurable interface: bright/dark, multi-language.
• Loops (up to 2 simultaneously): Volume-Pressure, Flow-Volume, Pressure-Flow, C02-Volume.
• Fresh gas virtual rotameters for 02, N20, Air. * C02, N20 and Anaesthetic gas monitoring with the accessory multigas analyzer main-stream or side-stream; 02 real-time monitoring via paramagnetic

Click Here To Download Catalogue

• Mechanic gas mixing system
• Electronic lung ventilator with 12” TFT colour display
• Valves group: open, semi-closed, closed, heated, with soda lime absorber (1,5 Kg)
• SIARETEX rapid connection device, Selectatec compatible for 2 vaporizers
• Gas supply group
• Ventilation modalities: APCV-PCV; APCV-TV; PSV; APNEA BACK-UP; VC-VAC; VC-VAC BABY; SIMV+PS (volumetric); SPONT; MANUAL.
• Measured parameters: PAW; PEEP; Vte; ExpMV; Rate; I:E; FiO2, Pmax; Pmean; Pause; Vti; FLOWi; FLOWe; Tinsp; Tesp; Tpause; Cs; Ri
• Displayed ventilation curves: Paw, Flow, Volume, Loop (Volume/Paw ; Volume/Flow)
• Adjustable parameters: – O2 built-in Mixer device from 21% to 99% – I:E Adjustable Ratio: 1:1-1:2-1:3-1:4-2:1-3:1 – Inspiratory Flow – PEEP – Breathing Rate – Minute Volume; – Tidal Volume – Inspiratory Pressure Limit – Inspiratory Pause – Inspiratory Time – Trigger
• Breathing system: The breathing system of Morpheus guarantees to the user an absolute flexibility and easy handling thanks to the noble construction materials employed. The valves group can be drawn-up and it’s totally autoclavable at 121°C and all its parts are manually dismountable, with no need of special tools.The breathing system is made of; Calibrated APL valve, Fresh gas collecting bag, O2 cell for reading of FiO2, Removable 1 kg soda lime canister, Manually inspectionable bellows jar, Safety valve for ambience air suction in case of fresh gas failure, Flow transducer inside the group located on the expiratory line.
