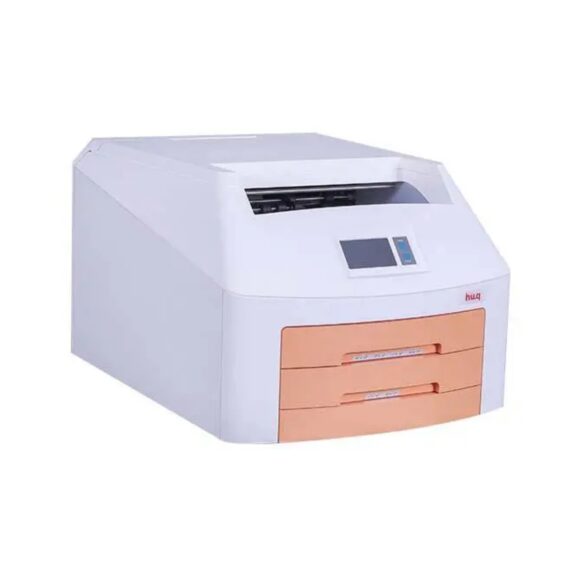

HU.Q hq-460dy Dry Image X-Ray Film Printer

Name: HU.Q hq-460dy Dry Image X-Ray Film Printer
SKU: SF10335601102
Rating: 4.00 (1 reviews)

Brands: HU.Q

4.00

(1 review)

~~$0.00~~

Shipped From Abroad

It is the one and only domestically engineered medical dry thermal imager. The HQ-DY series Dry Imager uses the latest direct dry thermal imaging technology which accommodates for a full range of applications, including CT, MR, DSA and US, as well as CR/DR applications for GenRad, Orthopaedics, Dental Imaging and more

Delivery & Availability:
Typically 14-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF10335601102

Tags:

Deal of the day / HU.Q hq-460dy Dry Image X-Ray Film Printer

Brands:: HU.Q

Description
Reviews (1)

Description

– Dry thermal technology
– Daylight load film cartridges
– Double tray, supports 4 film sizes
– Speed printing, higher efficiency
– Economical, stable, reliable
– Compact design, easy installation
– Straight forward operation, user-friendly

Usage

The HQ-DY series dry imager is a medical imaging output device. It is engineered to achieve its optimal performance when used with HQ-brand medical dry films. Different from the old method of film processors, our dry imager can be operated under daylight condition. With the elimination of chemical liquid, this thermal dry printing technology is significantly more environmentally friendly. However, to ensure the quality of output image, please keep away from heat source, direct sunlight, and acid and alkaline gas such as hydrogen sulfide, ammonia, sulfur dioxide, and formaldehyde, etc.

Technical Specification:

Print Technology	Direct thermal (dry, daylight-load film)
Spatial Resolution	320dpi (12.6 pixels/mm)
Grayscale Contrast Resolution	14 bits
Film Tray	Two supply trays, 200-sheet capacity total
Film Sizes	8’’×10’’, 10’’×12’’, 11’’×14’’, 14’’×17’’
Applicable film	Medical Dry Thermal Film (blue or clear base)
Interface	10/100/1000 Base-T Ethernet (RJ-45)
Network Protocol	Standard DICOM 3.0 connection
Image Quality	Automatic calibration using built-in densitometer
Control Panel	Touch Screen, Online Display, Alert, Fault and Active
Power Supply	100-240VAC 50/60Hz 600W
Weight	50Kg
Operating Temperature	5℃-35℃
Storage Humidity	30%-95%
Storage Temperature	-22℃-50℃

Click Here To Download Catalogue

Review(1)

4.00 average based on 1 ratings.

Umar Halilu

I need to buy the dry imager 460 and it’s film

24 October 2022 at 3:20 pm
Reply

Add a review
