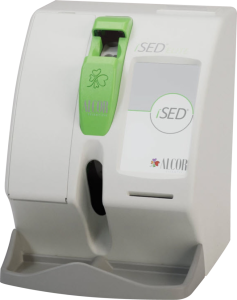

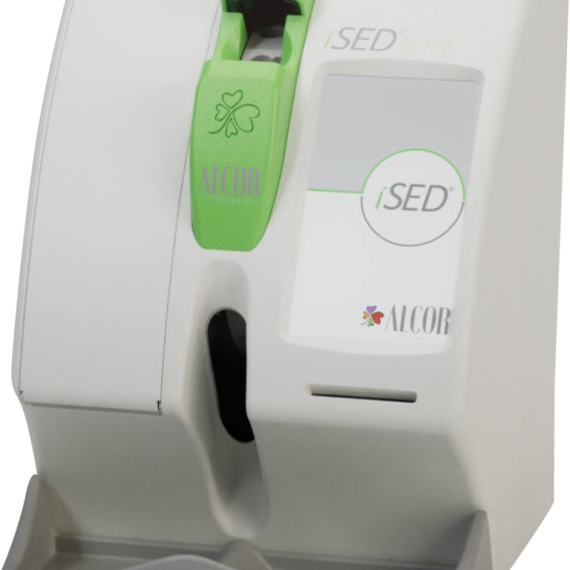

iSED Fully Automated ESR Analyzer

Brands: Alcor Scientific

~~$0.00~~

Shipped From Abroad

iSED improves laboratory efficiency by providing virtually instantaneous results with a fully automated workflow. Compared to the Westergren method, iSED® requires >96% less hands-on time and reduces turnaround time up to 94%.

iSED brings a novel approach to ESR by directly measuring RBC aggregation with capillary photometry during rouleaux formation. Results are available in seconds and highly correlated to the Westergren method. No disposables or sample setup required. Capped primary EDTA tubes can be directly inserted into the instrument, and mixing, sampling, and reading is performed by iSED for true walk-away automation.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560130145-1

Brands:: Alcor Scientific

Description
Reviews (0)

Description

Features

Results within 20 seconds
Walk-away automation / less than 3 seconds hands-on time
Sampling from primary EDTA tube
100 µl aspirated volume (500 µl total sample volume required)
Random access / continuous feed operation
Highly correlated to the Westergren method
Closed testing environment / limited impact of environmental variables
No disposables
Compatible with pediatric tubes
User-friendly and easy to implement

iSED Specifications

Principle of Measure:	Quantitative Capillary Photometry
Result Range:	1-130 mm/hr
Sample Capacity:	20 samples (random access loading)
Test Throughput:	Up to 180/hour
Sample type:	Primary EDTA tube; pediatric tube compatible
Sample volume:	500 µl whole blood (100 µl aspirated volume)
Sample Mixing:	Automated on board
Quality control:	SEDiTROL® Controls
Barcode Reader:	Internal
Printer:	Internal
Dimensions (H x W x D):	36 x 27 x 35 (cm)/14.17 x 10.63 x 13.78 (in)
Data Storage Capacity:	>4 million
LIS Connectivity:	LAN TCP/IP or serial RS232 DB9 port
Voltage:	100-240VAC
Frequency:	50-60 Hz
Power:	60W

iSED Ordering Information

Item Description	Unit	Part No.
iSED® ESR Analyzer	1 each	112-00101
Test card: 250 tests	1 each	112-00250
Test card: 1000 tests	1 each	112-01000
Test card: 2000 tests	1 each	112-02000
Test card: 5000 tests	1 each	112-05000
SEDiTROL® Quality Controls (Levels 1 & 2)	Pack of 2 x 4.0 ml	DSC01
SEDiTROL® Quality Controls (Levels 1 & 2)	Pack of 6 x 4.0 ml	DSC06
iWASH® Wash Fluid	Pack of 4	112-12-001
iWASTE® Container	Pack of 4	112-12-005
iWASTE® Container	Pack of 24	112-12-002
ALCOR® Thermal Printer Paper	Pack of 5	DS-05233

Click here to download Product Brochure
