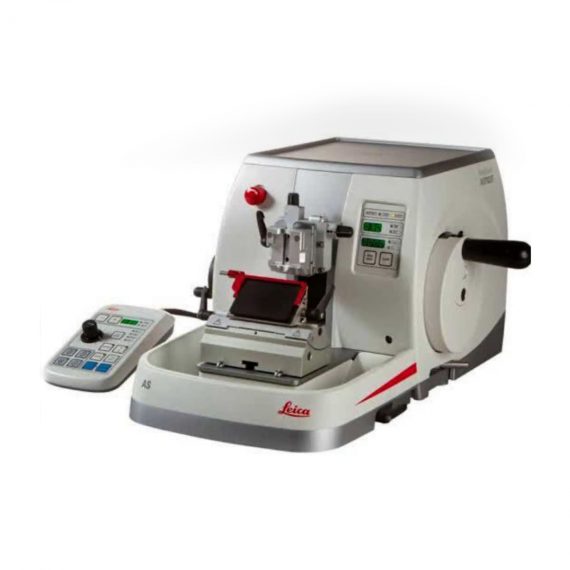

Leica Rotary Microtome

~~$0.00~~

Shipped From Abroad

The fully automated Leica RM2255 microtome embodies the latest technological innovations in microtomy and perfectly harmonizes practical features with an ergonomic design and user safety. Its two-in-one design concept, which allows motorized as well as manual sectioning, provides reproducible, quality sections.

Delivery & Availability:
Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560084-167

Tags:

Leica / Leica Rotary Microtome

Description
Reviews (0)

Description

Features:

Compact, ergonomic design
Ergonomically designed handwheel handle
Smooth-running handwheel with integrated quick-lock mechanism for safety
Enclosed micrometer feed mechanism
Low-maintenance cross-roller bearings
Two forward and backward coarse feed speeds
Alternate trimming and sectioning modes, as indicated on the display
Speed control through the cutting window for enhanced efficiency
Automatic, variable specimen retraction, depending on sectioning speed
Section thickness totalizer and section counter
Intuitive control panel
Integrated communication display
Precise specimen orientation with zero point reference
Knife holder design with red colored knife guard
Precise lateral knife holder adjustment with click stop settings
Spacious and easy-to-clean section waste tray
Wide range of accessories

Technical Specifications:

Section thickness

Setting thickness setting range: 0.5 – 100 µm

Setting values: from 0.5 – 5 µm in 0.5 µm increments

from 5 – 20 µm in 1 µm increments

from 20 – 60 µm in 5 µm increments

from 60 – 100 µm in 10 µm increments

Trimming section thickness setting range: 1 – 600 µm

Setting values: from 1 – 10 µm in 1 µm increments

from 10 – 20 µm in 2 µm increments

from 20 – 50 µm in 5 µm increments

from 50 – 100 µm in 10 µm increments

from 100 – 600 µm in 50 µm increments

Object feed: 24 mm ± 1 mm, feed motion via step motor

Vertical specimen stroke: 70 mm

Sectioning modes: 4

Specimen retraction:

In manual operation: 5 – 100 µm in 5 µm increments, can be turned off

In motorized operation: varying with the sectioning speed, can be turned of

Electric coarse feed: 300 µm/s and 800 µm/s

Sectioning speed: 0.5 – 420 mm/s ± 10%

Maximum specimen size (L x H x W): 50 x 60 x 40 mm

Specimen orientation horizontal: ±8°, vertical: ±8°

Nominal supply voltages: 100/120/230/240 V AC ± 10%

Nominal frequency: 50/60 Hz

Power draw: 340 VA

Dimensions basic instrument

Width (incl. handwheel): 413 mm

Depth (incl. waste tray): 618 mm

Height (with storage area on cover): 305 mm

Weight (without accessories): Approx. 40 kg

Dimensions control panel: W x D x H 121 x 166 x 50 mm

Weight: approx. 0.66 kg, approx. 1.45 Ibs

Click Here To Download Catalogue

Reviews

There are no reviews yet.

Be the first to review “Leica Rotary Microtome”

Quick Comparison

Leica Rotary Microtome remove IISM VPism-C (Compact Type) Vein Probe remove iSED Fully Automated ESR Analyzer remove Stratec Gemini Elisa Machine with Reader remove AGD Erma EL-120 ELectrolyte Analyzer remove Alcohol Pad Per Pack remove

Name Leica Rotary Microtome remove IISM VPism-C (Compact Type) Vein Probe remove iSED Fully Automated ESR Analyzer remove Stratec Gemini Elisa Machine with Reader remove AGD Erma EL-120 ELectrolyte Analyzer remove Alcohol Pad Per Pack remove


SKU SF1033560084-167 SF1033560090-1 SF1033560084-129 SF1033560152-1 SF1033560084-125 SF1033560084-64

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad The fully automated Leica RM2255 microtome embodies the latest technological innovations in microtomy and perfectly harmonizes practical features with an ergonomic design and user safety. Its two-in-one design concept, which allows motorized as well as manual sectioning, provides reproducible, quality sections.

Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad The iiSM VPism-C Vein Probe - Compact Unit is a compact, non-invasive infrared device to view blood vessels just beneath the skin. Includes a camera, touchscreen display, connector cable, power supply, camera stand, gooseneck arm, and instruction manual. Delivery & Availability: Typically 10 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In stock

The technical innovation of the iSED® fully-automated ESR analyzer consists of directly measuring the intensity of the red cell aggregation which is responsible for Erythrocyte Sedimentation Rate (ESR). Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad GEMINI offers cost-savings, safety and a high degree of flexibility enabling a smooth laboratory workflow, thus making it a powerful system for all. FEATURES

Ease of use in application and maintenance
Designed with sample and reagent ID-barcode reading, in-tip dilution reducing consumable costs
Intuitive and highly flexible open software with complete data reduction and LIS interfaces
Integrated PC and touchscreen eliminates the need for an external workstation
Smart time-management allows processing up to 3 microplates simultaneously

Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

Electrolyte Analyzer ERMA EL-120 is ideal for medium to high volume Laboratories and Hospitals . It offers reliable, automated samples handling and work flow offences . It also allows measurement of specific ions, accurately and precisely . This supports fast diagnosis of critically ill patients and reduces the risks of patient discomfort associated with repeated sampling Precise & Accurate Results Economical to use Large Touchscreen Display with Graphical User Interface. Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In stock Alcohol Pad (70% Isopropyl Alcohol Pre Pad, Alcohol Cleansing Swab). Clean the required area. Discard after single use. Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

Compact, ergonomic design
Ergonomically designed handwheel handle
Smooth-running handwheel with integrated quick-lock mechanism for safety
Enclosed micrometer feed mechanism
Low-maintenance cross-roller bearings
Two forward and backward coarse feed speeds
Alternate trimming and sectioning modes, as indicated on the display
Speed control through the cutting window for enhanced efficiency
Automatic, variable specimen retraction, depending on sectioning speed
Section thickness totalizer and section counter
Intuitive control panel
Integrated communication display
Precise specimen orientation with zero point reference
Knife holder design with red colored knife guard
Precise lateral knife holder adjustment with click stop settings
Spacious and easy-to-clean section waste tray
Wide range of accessories

Technical Specifications: Section thickness Setting thickness setting range: 0.5 – 100 µm Setting values: from 0.5 – 5 µm in 0.5 µm increments from 5 – 20 µm in 1 µm increments from 20 – 60 µm in 5 µm increments from 60 – 100 µm in 10 µm increments Trimming section thickness setting range: 1 – 600 µm Setting values: from 1 – 10 µm in 1 µm increments from 10 – 20 µm in 2 µm increments from 20 – 50 µm in 5 µm increments from 50 – 100 µm in 10 µm increments from 100 – 600 µm in 50 µm increments Object feed: 24 mm ± 1 mm, feed motion via step motor Vertical specimen stroke: 70 mm Sectioning modes: 4 Specimen retraction: In manual operation: 5 – 100 µm in 5 µm increments, can be turned off In motorized operation: varying with the sectioning speed, can be turned of Electric coarse feed: 300 µm/s and 800 µm/s Sectioning speed: 0.5 – 420 mm/s ± 10% Maximum specimen size (L x H x W): 50 x 60 x 40 mm Specimen orientation horizontal: ±8°, vertical: ±8° Nominal supply voltages: 100/120/230/240 V AC ± 10% Nominal frequency: 50/60 Hz Power draw: 340 VA Dimensions basic instrument Width (incl. handwheel): 413 mm Depth (incl. waste tray): 618 mm Height (with storage area on cover): 305 mm Weight (without accessories): Approx. 40 kg Dimensions control panel: W x D x H 121 x 166 x 50 mm Weight: approx. 0.66 kg, approx. 1.45 Ibs Click Here To Download Catalogue

The iiSM VPism-C Vein Probe - Compact Unit is a compact, non-invasive infrared device to view blood vessels just beneath the skin. Includes a camera, touchscreen display, connector cable, power supply, camera stand, gooseneck arm, and instruction manual. This handheld, portable device is lightweight and includes the touchscreen and camera with attached clip. The camera can be removed and handled by hand, or can clip to the touchscreen unit for a hands-free experience. The back of the device also has a kickstand, so that physicians can stand the device on its own. The VPism-C can also be mounted to an armrest, if a patient needs to be stationary, or attached to a SLism-F Specialized Light Source for patients with deeper vessels. This device can be a vital tool in providing accurate placement of injections or other vascular treatments, such as for varicose veins. The infrared video shows the location of the veins and capillaries in real time, as well as save images for further discussion or diagnosis. For patients who have difficult-to-find veins, this device will save them from incorrect or painful injection sites. Features: Probe Target: Subcutaneous blood vessels of various patients (including capillaries) Probe Method: Non-invasive infrared technology Probe Depth: Within 10 mm under the skin Magnification Function: Up to 1X, 2X and 4X Automatic Adjustment Function: Adjusts the brightness automatically based on the targeted vein Specialized Light Function: Shows the veins more clearly by using the specialized light source Operation Method: Easy to operate with touchscreen Internal Battery Support: Continuous running time: 1.5 hours Warranty: 1 year

Click Here To Download Catalogue

The technical innovation of the iSED® fully-automated ESR analyzer consists of directly measuring the intensity of the red cell aggregation which is responsible for Erythrocyte Sedimentation Rate (ESR). Unlike traditional ESR methodologies that measure the aggregation of the red blood cells indirectly, the iSED measures it directly and expresses the values in mm/hr. Features:

Results in 20 Seconds
100µL sample drawn directly from primary EDTA tube
Fully automated, walk-away operation
Random access
Positive patient identification via internal barcode reader
Compatible with pediatric tube

Technical Specifications:

Principle of Measure:	Photometrical
Results:	“Printed mm/hr, Range from 1-130 mm/hr”
Sample Requirements:	500uL whole blood, collected in EDTA anti-coagulant tested 24 hours from venipuncture at room temperature or refrigerated.
Tube Requirements:	13 x 75 mm, pierceable capped tube
Quality Control:	Barcoded Seditrol® QC
Barcode Reader:	Internal
Printer:	Internal
Interface Specifications:	serial RS232 port for LIS connection
Weight:	14 kg
Dimensions (H x W x D):	36 x 27 x 34 (cm) /14.3 x 10.5 x13.4 (in)
Voltage:	100-240VAC
Frequency Range:	50-60 Hz
Power:	160W

Click Here To Download Catalogue

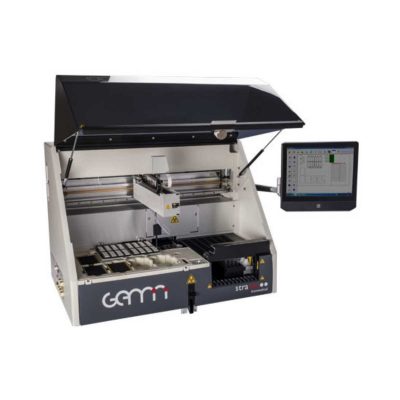

GEMINI offers cost-savings, safety and a high degree of flexibility enabling a smooth laboratory workflow, thus making it a powerful system for all. FEATURES

Ease of use in application and maintenance
Designed with sample and reagent ID-barcode reading, in-tip dilution reducing consumable costs
Intuitive and highly flexible open software with complete data reduction and LIS interfaces
Integrated PC and touchscreen eliminates the need for an external workstation
Smart time-management allows processing up to 3 microplates simultaneously

SPECIFIATIONS Reader

Photometric range: 0 to 3.0 OD
Spectral range: 400 nm to 700 nm (up to 8 filters)
Read time: < 15 sec single, < 30 sec dual
Precision: 1% CV at 1.0 OD
Accuracy: ±0.005 OD or 2.5 % (whichever is greater)
Linearity: 0 to 2.000 OD ±1 %

Pipettor

Min / max. volumes: 10 µl to 300 µl with 300 µl tip, 301 µl to 1000 µl with 1100 µl tip
Precision (single dispense): < 3 % CV at 20 µl, < 3 % CV at 100 µl
Precision (multi dispense): < 10 % CV at 16 x 20 µl, < 3 % CV at 8 x 100 µl
Features: Pipetting pressure monitoring, capacitive liquid level detection, tip detection, mixing, multiple dilution steps, archiving

Capacity

Sample and reagent capacity: Up to 192 samples (Flexible: e.g. 144 samples + 8 reagents + 16 controls)

Incubator

Temperature range: Up to 45 °C
Temperature uniformity: ±1.5 °C (with in-process temperature uniformity monitoring)
Shaking: 20 Hz

Washer

Precision: 10% CV at 300 µl
Residual volume: <2.5 µl in U-bottom (mean), <4 µl in flat bottom (mean)
Wash buffer capacity: 3 wash buffers
Modes: Sweep mode, soak, top and bottom wash, variable pump speed

Dimensions

Width x Depth x Height: 125 cm x 65 cm (without waste bag) x 75 cm with closed cover (49” x 26” x 30”)

Click Here To Download Catalogue

Parameters: Na+,K+,Cl-, iCa++ / Li
It works on ISE principle
Sample Type: Whole blood, Serum, Plasma, Urine
Low reagent consumption
Sample requirement is only 90ul
60 samples per hour
Automatic two point calibration after 4hrs and one point calibration with each sample analysis
Air bubble detection
Track reagents consumption and provides alerts
For low reagent volume
Precision testing facility to get CV and SD
Trilevel Quality Control with LJ plots of last 30days
Low aspiration volume
Fast sample processing
Accurate and Precise results

Technical Specifications:

Parameters	Na+, K+, Cl– /Ca++
Principle	Ion Selective Electrode (ISE)
Sample Type	Analyses whole blood, serum, plasma and urine
Sample Volume	≤100 µL
Analysis Time	≤60 seconds
Throughout	≤60 samples per hour
Data Link	Serial (RS232)
External Interface	USB (Keyboard, Mouse)
Operating Condition	10° C to 35° C, Relative Humidity up to 85%
Storage Condition	Temp: 10° C to 40° C
Relative Humidity	up to 85% non- condensing
Power Supply	100 to 240 VAC ±10%, 50Hz
Dimensions	395 x 260 x 375 mm
Weight	7.5 kg

Click Here To Download Catalogue

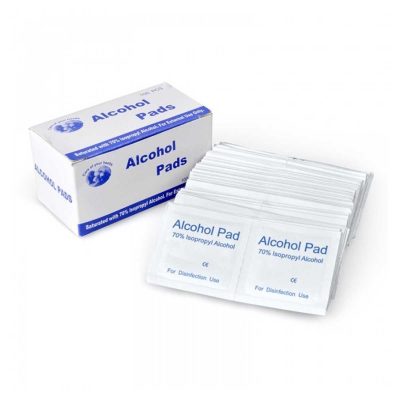

Alcohol Pad (70% Isopropyl Alcohol Pre Pad, Alcohol Cleansing Swab). Clean the required area. Discard after single use. Size and packing of Medical Alcohol pad:
