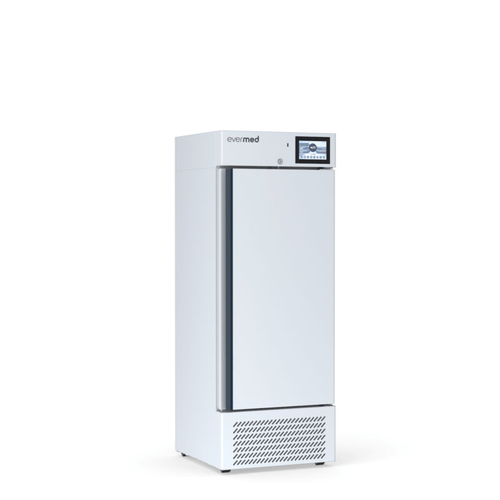

LR 270 Laboratory Refrigerator

​The LR 270 Laboratory Refrigerator is designed for the precise storage of laboratory specimens, reagents, and other temperature-sensitive materials. With a net capacity of 270 liters, it offers ample storage space while ensuring accurate temperature control to maintain the integrity of stored items.​

Technical Features:

• Product Code: ABC701T​

• Temperature Range: 0°C to +15°C​

• Refrigeration Type: Forced air​

• Climatic Class: +16°C to +43°C (T)​

• Gross Capacity: 300 liters​

• Net Capacity: 270 liters​

• External Dimensions (W x D x H): 600 x 650 x 1,620 mm​

• Packaging Dimensions (W x D x H): 660 x 800 x 1,780 mm​

Electrical Data:

• Power Supply: 220-230V / 1ph / 50Hz​

• Power Plug: Type F​

Structural Features:

• External Material: Anti-bacterial coated steel, white color​

• Internal Material: Stainless steel 18/10 AISI 304​

• Insulation Thickness: 50 mm​

• Internal Lighting Type: LED lamp under the front panel​

• Number of Shelves: 2​

• Drawers with Extractable Slides: Optional​

• Unidirectional Rollers: 4​

Control Panel:

• Display Type: 7-inch touchscreen​

• Alarm Signaling: Acoustic and visual

• Rotor capacity: 12 x 1.5/2.0 mL vessels, 2 x PCR strip
• Max. speed: 14,100 x g (14,500 rpm)
• Extremely compact footprint — measures 9”W x 4.”H x 9ó”D!
• Aluminum rotor accommodates twelve 1.5- or 2.0-mL tubes (maximum diameter of 11 mm)
• Rotor can be autoclaved at 121°C for 20 minutes
• Minimal sample heat transfer — maximum of 12°C after 20 minutes at max speed
• Eliminate costly repairs with the low maintenance drive
• Soft-touch lid closure for ergonomic lid locking — and releases automatically at the end of a run

Click Here To Download Catalogue

• Parameters: Na+,K+,Cl-, iCa++ / Li
• It works on ISE principle
• Sample Type: Whole blood, Serum, Plasma, Urine
• Low reagent consumption
• Sample requirement is only 90ul
• 60 samples per hour
• Automatic two point calibration after 4hrs and one point calibration with each sample analysis
• Air bubble detection
• Track reagents consumption and provides alerts
• For low reagent volume
• Precision testing facility to get CV and SD
• Trilevel Quality Control with LJ plots of last 30days
• Low aspiration volume
• Fast sample processing
• Accurate and Precise results

Click Here To Download Catalogue

• Made of high quality PP material with good transparency.
• Applied for Gilson/Finland/Eppendorf Pipettors.
• Carefully inspect of raw material and manufactured under strict process check, all tips are with excellent accuracy and precison.
• Special siliconizing on the inner surface ensure no liquid adhesion and accurate sample transfer.
• Standard tips and filter tips can be autoclaved, high temperature sterilization acceptable.

• Ease of use in application and maintenance
• Designed with sample and reagent ID-barcode reading, in-tip dilution reducing consumable costs
• Intuitive and highly flexible open software with complete data reduction and LIS interfaces
• Integrated PC and touchscreen eliminates the need for an external workstation
• Smart time-management allows processing up to 3 microplates simultaneously

• Photometric range: 0 to 3.0 OD
• Spectral range: 400 nm to 700 nm (up to 8 filters)
• Read time: < 15 sec single, < 30 sec dual
• Precision: 1% CV at 1.0 OD
• Accuracy: ±0.005 OD or 2.5 % (whichever is greater)
• Linearity: 0 to 2.000 OD ±1 %

• Min / max. volumes: 10 µl to 300 µl with 300 µl tip, 301 µl to 1000 µl with 1100 µl tip
• Precision (single dispense): < 3 % CV at 20 µl, < 3 % CV at 100 µl
• Precision (multi dispense): < 10 % CV at 16 x 20 µl, < 3 % CV at 8 x 100 µl
• Features: Pipetting pressure monitoring, capacitive liquid level detection, tip detection, mixing, multiple dilution steps, archiving

• Sample and reagent capacity: Up to 192 samples (Flexible: e.g. 144 samples + 8 reagents + 16 controls)

• Temperature range: Up to 45 °C
• Temperature uniformity: ±1.5 °C (with in-process temperature uniformity monitoring)
• Shaking: 20 Hz

• Precision: 10% CV at 300 µl
• Residual volume: <2.5 µl in U-bottom (mean), <4 µl in flat bottom (mean)
• Wash buffer capacity: 3 wash buffers
• Modes: Sweep mode, soak, top and bottom wash, variable pump speed

• Width x Depth x Height: 125 cm x 65 cm (without waste bag) x 75 cm with closed cover (49” x 26” x 30”)

Click Here To Download Catalogue

• Results in 20 Seconds

• 100µL sample drawn directly from primary EDTA tube

• Fully automated, walk-away operation

• Random access

• Positive patient identification via internal barcode reader

• Compatible with pediatric tube
