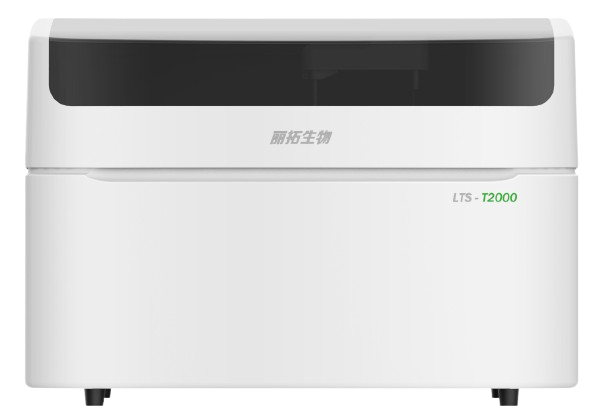

LTS-T2000-Specific Protein Analysis System

An intelligent, fully-automatic nephelometric immunoassay system that determines antibody or antigen concentrations in biological samples. It supports diagnostic, curative, and recovery evaluation applications — solving the problem of limited sample quantity through precise and thorough operation.

Product Features

Three Advantageous Platforms

1. Independent R&D Platform – reagents and analyzers are co-developed and certified to ensure accuracy and reliability.

2. Fully Automatic Operation Platform – “one-step” QR-code scanning for reagent recognition, dilution, calibration, and measurement.

3. Extensible Reagent Platform – supports multiple directions (acute phase, immune function, diabetes, kidney function, etc.).

Product Performance (Five Key Advantages)

• Smart Sample Addition – nano-addition probe avoids contamination and ensures precision.

• Automatic Operation – automated reagent pipetting, calibration, and system maintenance.

• Accurate Measurement – includes calibration, QC, and intelligent temperature control.

• Thorough Cleaning – full automatic cleaning to prevent cross-contamination.

• Rapid Detection – 20 reagent positions, 60 cuvettes; test speed ≥ 100 T/hour.

Key Project Recommendation

Immunization Pentathlon: IgA, IgG, IgM, C3, C4
Comprehensive assessment of humoral immune function.

Clinical Applications:

• Women’s & Children’s Hospitals: monitoring immune function

• Recurrent respiratory infection testing

• Differential diagnosis of diarrhea (bacterial vs. viral)

Test Items

Instrument Parameters

• Power: ≤ 450 VA

• Accuracy: Sample addition error ≤ ±5 %; CV < 3 %

• Sample Volume: 5–40 µL (0.1 µL increments)

• Reagent Volume: 200–400 µL (10 µL increments)

• Test Speed: ≥ 100 T/h

• Temperature Control: ± 1 °C precision with overheat protection

• Environment: 5–30 °C / ≤ 70 % RH / 80–106 kPa

• Weight: ≈ 73 kg

• Results in 20 Seconds

• 100µL sample drawn directly from primary EDTA tube

• Fully automated, walk-away operation

• Random access

• Positive patient identification via internal barcode reader

• Compatible with pediatric tube



• Color: Blue
• The outer diameter of the lancet: 28G
• Packing: 50 Pieces

• Made of high quality PP material with good transparency.
• Applied for Gilson/Finland/Eppendorf Pipettors.
• Carefully inspect of raw material and manufactured under strict process check, all tips are with excellent accuracy and precison.
• Special siliconizing on the inner surface ensure no liquid adhesion and accurate sample transfer.
• Standard tips and filter tips can be autoclaved, high temperature sterilization acceptable.
