csm_p_MAG-Expert_acc4_566e423ac2

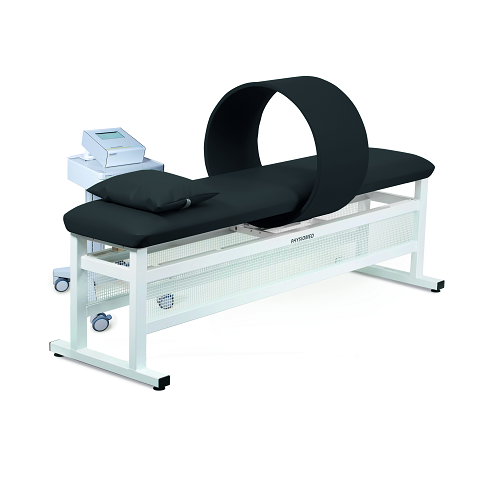

MAG-Expert with cylinder (Ø 60 cm) and therapy couch

Brands: PHYSIOMED

$0.00

Shipped From Abroad

The MAG-Expert enables magnetic field therapy with a strength of 1-100 Gauss (adjustable in steps of one Gauss) in a frequency range of 1-100 Hz in two completely independent channels including a therapy timer. For the most efficient treatment possible, two cylinders with a diameter of 30 and 60 cm as well as powerful applicators are available.

Thanks to MFC technology, the magnetic fields are focused almost exclusively on the inside of the cylinders. This avoids unnecessary exposure of the treatment staff to the field.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
SF1033560130148-9
Brands:: PHYSIOMED

Description

Magnetic field therapy
  • Magnetic field therapy from 1-100 Gauss, adjustable in steps of 1 Gauss
  • Therapy frequency 1-100 Hz
  • Two independent channels
  • MFC technology for focusing the magnetic fields
  • Synchronous transmission Ch1 and Ch2
  • Therapy time 0-60 min
  • Automatic detection of connected accessories
  • Extremely stable treatment couch with head cushion and hydraulic folding system for easy installation of the cylinder
  • Precisely manufactured slide for easy and comfortable positioning of the cylinder



General Features
  • 7“ colour screen with screen saver and display of the most important parameters of the active channels
  • 12 Favorites menu with speed dial memory for individual device functions
  • Overview of therapy parameters and therapy timers
  • Fast therapy start: directly, by channel selection, from the program memory of the indication file, individually or from the favorites menu
  • Intelligent filter functions of the indication list by body region, sorted in alphabetical order
  • Storage capacities, with the menu Individual, History and Favorites
  • LED for optical display of the active channel
  • Acoustic signal to indicate the end of treatment
  • Compatible with the PHYSIOMED app
  • Report creation and error interpretation using QR code
Therapy information

Magnetic field therapy devices can apply pulsating magnetic fields with different frequencies and intensities. Coils of different sizes or applicators are used for this purpose.



Click here to download Brochure

Reviews

There are no reviews yet.

Be the first to review “MAG-Expert with cylinder (Ø 60 cm) and therapy couch”

Your email address will not be published. Required fields are marked *

Quick Comparison

MAG-Expert with cylinder (Ø 60 cm) and therapy couch removeMedics Diabetic+ Insol removeBobath gymnastics table removeGround Control Low Arch Insole removeGel Comfort Insole removePhysiotherapy Tilt Table remove
NameMAG-Expert with cylinder (Ø 60 cm) and therapy couch removeMedics Diabetic+ Insol removeBobath gymnastics table removeGround Control Low Arch Insole removeGel Comfort Insole removePhysiotherapy Tilt Table remove
SKUSF1033560130148-9SF1033560130135-8SF1033560130137-21SF1033560130135-12SF1033560130135-1SF1033560130137-18
Rating
Price

$0.00

$0.00

$0.00

$0.00

$0.00

$0.00

Stock
Availability
Add to cart

Read more

Read more

Read more

Read more

Read more

Read more

DescriptionShipped From Abroad The MAG-Expert enables magnetic field therapy with a strength of 1-100 Gauss (adjustable in steps of one Gauss) in a frequency range of 1-100 Hz in two completely independent channels including a therapy timer. For the most efficient treatment possible, two cylinders with a diameter of 30 and 60 cm as well as powerful applicators are available. Thanks to MFC technology, the magnetic fields are focused almost exclusively on the inside of the cylinders. This avoids unnecessary exposure of the treatment staff to the field.
Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad Spenco Medics Diabetic+ Insoles feature Spenco proprietary TotalSupport technology with the added benefit of a soft, low-density PolySorb Memory Structured Foam body, friction-reducing SpenCore impact zones and a Plastazote top cover to help eliminate pressure points that can cause blisters.
Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad The gymnastics tables / Bobath tables are used in the therapeutic and nursing areas and provide the patient with the best possible support during the rehabilitation phase.
Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad The Spenco Ground Control insole aims to reduce pronation with a decoupled heel while using hybrid impact and energy return zones to work with the foot, not against it. Designed for active individuals.
Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad Advanced triple-density design provides comfort, cushioning and support. Ideal for everyday wear, especially when standing for long periods of time.
Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad
Therapy tilt tables and standing boards for the optimal treatment of diseases and injuries
Therapeutic tilt tables, also known as standing boards, can be used for various therapy methods. Among other things, they enable the patient to be raised up continuously from the shock or lying position to the almost vertical position. These models are therefore ideal for the treatment of neurological diseases as well as head and back injuries or paraplegic patients. In order to give the patient the physical and psychological safety required during treatment and when getting on and off, the combination of the upholstery cutout at the foot end with the extra-large, removable footboard was developed for the tilting tables. The therapy tilt tables are available in two widths:
  • Width 800 mm, Article No.: KT-1080/EE,
  • Width 1,000 mm, Article No.: KT-10100/EE.
Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Content
Magnetic field therapy
  • Magnetic field therapy from 1-100 Gauss, adjustable in steps of 1 Gauss
  • Therapy frequency 1-100 Hz
  • Two independent channels
  • MFC technology for focusing the magnetic fields
  • Synchronous transmission Ch1 and Ch2
  • Therapy time 0-60 min
  • Automatic detection of connected accessories
  • Extremely stable treatment couch with head cushion and hydraulic folding system for easy installation of the cylinder
  • Precisely manufactured slide for easy and comfortable positioning of the cylinder

General Features
  • 7“ colour screen with screen saver and display of the most important parameters of the active channels
  • 12 Favorites menu with speed dial memory for individual device functions
  • Overview of therapy parameters and therapy timers
  • Fast therapy start: directly, by channel selection, from the program memory of the indication file, individually or from the favorites menu
  • Intelligent filter functions of the indication list by body region, sorted in alphabetical order
  • Storage capacities, with the menu Individual, History and Favorites
  • LED for optical display of the active channel
  • Acoustic signal to indicate the end of treatment
  • Compatible with the PHYSIOMED app
  • Report creation and error interpretation using QR code
Therapy information
Magnetic field therapy devices can apply pulsating magnetic fields with different frequencies and intensities. Coils of different sizes or applicators are used for this purpose.
Click here to download Brochure
Spenco RX Diabetic+ Insole is a premium full-length insole specifically designed for the diabetic foot. Spenco RX Professional Orthotics use 3-POD GRF technology to provide ideal support for every foot. Featuring Spenco s proprietary TotalSupport technology for cushioning throughout, this insole is also has a soft, low-density Polysorb Memory Structured foam body for additional comfort. Spencore impact zones in the heel and forefoot reduce friction while a deep heel cup helps stabilize and cradle the back of your foot. A Plastazote top cover helps eliminate pressure points that can cause blisters. The Spenco RX Diabetic+ Insole is available in a variety of sizes for men and women. Half sizes should order the next size down.
  • PolySorb Memory Structured Foam provides cushioning, impact suppression and comfort.
  • Plastazote Foam Top Cover reduces friction and cushions sensitive feet.
  • Deep Heel Cushioning helps to stabilize the rearfoot.
  • Premium SpenCore Material fully-cushioning heel and forefoot impact zones.
  • Total Support Footbed provides cushioning for foot comfort.
Weight 0.26
Body Part Arch, Plantar Fascia, Calf, Achilles, Shin, Back, Heel, Ball of Foot, Knee
Condition Plantar Fasciitis, Over Pronation, Flat Feet/Arch Support, Morton's Neuroma/Ball-of-Foot, Pain, Hammer Toe, Blister or Burn Prevention, Blister or Burn Treatment, Heel Spurs/Heel Pain, Diabetes
Activity Golf, Running, Hiking, Sports, Office, Casual, Walking, Cross Training, Prolonged Standing
Insole Length Full
Shoe Type Run, Walk, Sport Specific, Work, Boots, Dress
Arch Type High
Bobath gymnastics tables
The Bobath gymnastics tables are an aid in the “Bobath concept”, which is used successfully worldwide and is used to rehabilitate people with diseases of the central nervous system. These are often accompanied by movement disorders, symptoms of paralysis and spasticity. A special table makes the treatments and therapeutic measures easier. In order to simplify these individual and everyday therapeutic activities for patients and users, the Bobath tables from AGA Sanitätsartikel are all equipped with a height adjustment mechanism as follows:
  • Manual (hand crank), Article No.: H-Bobath/H 110,
  • Hydraulics, Article No.: H-Bobath/Y 110, H-Bobath/Y 120 and H-Bobath/Y 160,
  • Electric motor, Article No.: H-Bobath/E 110, H-Bobath/E 120 and H-Bobath/E 160.
In addition, the Bobath gymnastics tables are available in three widths, 1,040 mm, 1,200 mm and 1,600 mm.
Features
  • In order to avoid rocking and swinging movements of the lying surface, the gymnastics tables are manufactured with a 200 mm stroke and precision double square profiles.
  • The Bobath tables with scissor adjustment mechanisms are characterized by the large adjustment range (420 mm) and the resulting low entry height (525 mm).
  • The manual height adjustment is done with a hand crank using maintenance-free gear with an optimal transmission ratio (i = 10mm/rev) for smooth, quick and easy operation, without much effort, even with heavier patients (up to 200 kg). After use, the crank handle can be pushed back under the tabletop.
  • The hydraulic height adjustment is operated via the built-in foot pump. The height adjustment can of course also be carried out with heavier patients (up to 200 kg) without any major effort. In order to be able to operate the hydraulics from both sides, it is possible to install an additional foot lever. This is available for an additional charge (Article No.: FPH-10).
  • The electric motor height adjustment is controlled via a foot switch (alternatively - at no extra charge - via a hand switch) and can of course also be done with heavier patients (up to 200 kg). The electric drive used is maintenance-free and extremely quiet. The adjustment system is equipped with a key lock. Motor connection values: 230V, 50/60 Hz., 3.7A, 850W, IPX4, v=11mm/s, 10,000N.
  • The stability and robustness is achieved by the gusset plates in the frame corners.
  • The 70 mm thick, one-piece and continuous comfort padding offers the patient a high level of comfort. As standard, it is equipped with 2-layer foam cuts with different thicknesses in terms of density - which also enclose the wooden support panel on the side (20 mm thick) - and is covered with high-quality synthetic leather.
  • The 1,600 mm wide Bobath gymnastics have a seam in the middle of the upholstered cover.

Technical data
Bobath tables with precision double square profiles
Article number H-Bobath/H 110  H-Bobath/Y 110 H-Bobath/E 110
Frame Lacquered
Length 1,940 mm
Width 1,040 mm
Height adjustment 650 - 850 mm (hand crank) 650 - 850 mm (hydraulics) 650 - 850 mm (electric motor)
Upholstery segments 1 section
Upholstery thickness 70 mm
Load capacity 200 kg
Bobath tables with scissor adjustments
Article number H-Bobath/Y 120 H-Bobath/Y 160 H-Bobath/E 120 H-Bobath/E 160
Frame Lacquered
Length 1,940 mm
Width 1,200 mm 1,600 mm 1,200 mm 1,600 mm
Height adjustment 525 – 945 mm (hydraulics) 525 – 945 mm (electric motor)
Upholstery segments 1 section
Upholstery thickness 70 mm
Load capacity 200 kg
The standard configuration includes:
  • Levelling feet on the chrome-plated crossbars of the Bobath tables with precision double square profiles.
  • Floor protectors (clip-on caps) on the four adjustable feet of the Bobath tables with scissor adjustments.

Accessories & additional options
Article No. Description
FPH-10 Foot pedal, with transmission shaft and connecting piece. This allows the hydraulic height adjustment to be operated from both sides.
HRM-14 Semi-circular roll, foam filling, dimensions Ø 200 x 400 mm, sewn from synthetic leather, with zipper, see upholstery colours.
KKM-16 Head wedge, foam filling, dimensions 450 x 400 x 80 / 10 mm (L x W x H), sewn from synthetic leather, with zipper, see upholstery colours.
LR/Z-125 Central locking castor system, double swivel castors Ø 125 mm,  all four castors offer excellent rolling properties and are connected to each other by rods, foot pedals are arranged diagonally at the head and foot end, easy to operate and with coloured markings (green = table ready for moving, red = table locked in place). Retrofitting is not possible.
RLM-20 RM-12 Knee roll, dimensions Ø 180 x 560 mm. Neck roll, dimensions Ø 140 x 400 mm. Round roll, foam filling, sewn from synthetic leather, with zipper, see upholstery colours.
The Spenco Ground Control insole, available in three arch heights for optimized support at fit. Aim to reduce pronation with a decoupled heel while using hybrid impact and energy return zones to work with the foot, not against it. Separating the heel from the arch support and forefoot reduces pronation during foot strike. Designed for active individuals. Ready, set, go.
  • Perforated EVA body
  • Nylon arch support
  • Polymer forefoot pad for energy return
  • Polymer heel pad for energy absorption
  • Anti-slip textured nylon fabric with Silpure Antimicrobial to reduce odor
  • Love Your Feet, fun colors hidden inside your shoe
  • Decoupled heel
The Spenco Gel Comfort Insole offers lasting comfort for those who are on their feet for long periods of time. An advanced triple-density design provides comfort, cushioning, and support for everyday wear. Ideal for workers, students, and travelers who are on their feet throughout the day, this insole works like an anti-fatigue mat to absorb shock and alleviate sore feet. Thermoplastic Rubber Comfort Gel, or TPR, combines cushioning and energy return to for daily comfort while metatarsal arch support relieves pressure from the ball-of-foot. A stability cradle supports the arch and heel for comfort, while also making the insole easier to place in the shoe. Softer gel in the heel absorbs impact with each heel strike by providing extra cushioning. Each insole is topped with a Silpure antimicrobial layer that eliminates odor causing bacteria and reduces friction and may be hand washed and air dried as needed. The Spenco Gel Comfort Insole comes with a one-year unconditional guarantee.
  • Triple Density Design comforts, cushions and supports advanced design for comfort.
  • TPR Comfort Gel thermoplastic rubber combines cushioning and energy return for comfort.
  • Metatarsal Arch Support relieves pressure from the ball-of-foot.
  • Top Cloth with Silpure Antimicrobial helps eliminate odor causing bacteria and reduces friction.
  • Stability Cradle supports the arch and heel for greater comfort. Makes it easier to place into the shoe.
  • Extra Heel Cushioning softer gel in the heel absorbs impact at heel strike.
Weight 0.68
Body Part Arch, Plantar Fascia, Calf, Achilles, Shin, Back, Heel, Ball of Foot, Knee
Condition Plantar Fasciitis, Over Pronation, Flat Feet/Arch Support, Morton's Neuroma/Ball-of-Foot, Pain, Hammer Toe, Heel Spurs/Heel Pain
Activity Golf, Running, Hiking, Sports, Casual, Walking, Cross Training, Prolonged Standing
Insole Length Full Length
Shoe Type Run, Walk, Sport Specific, Work, Boots
Arch Type Medium
Features
  • The therapy tilt tables can be adjusted by electric motors from the vertical position (90°) to the horizontal position (0°). The tilting is controlled using a hand switch (alternatively, at no extra charge, with a foot switch).
  • The electromotive height adjustment (520 – 960 mm, measured in the horizontal upholstery position) is controlled via a foot switch (alternatively, at no extra charge, via a hand switch).
  • The height and tilt adjustments are done with maintenance-free and splash-proof and extremely quiet electric drives equipped with key locks. Connection values per motor: 230V, 50/60 Hz., 3.7A, 850W, IPX4, v=11mm/s, 10,000N.
  • The wide support frame, which is equipped with a mobile base on retractable castors, ensures a high level of stability, even under stress.
  • The mobile base on retractable castors, swivel castors Ø 75 mm, locked in place using pedals are by pedals at the head and foot ends (step twice).
  • The thickness of the two upholstered segments (headrest and main surface) on the tilt tables are:
    • Article No.: KT-1080/EE, each 64 mm,
    • Article No.: KT-10100/EE, each 67 mm.
  • The headrest can adjusted up to +35° using a grid with 13 locking steps.

Technical data
Therapy tilt tables
Article number KT-1080/EE KT-10100/EE
Frame Lacquered
LengthHeadrest/main section 1,900 mm 500 / 1,400 mm
Width 800 mm (860 mm with standard rails) 1,000 mm (1,060 mm with standard rails)
Height adjustment 520 - 960 mm (electric motor)
Tilt adjustment 0º / +90º (electric motor)
Upholstery segments 2 sections
Upholstery thickness 64 mm 67 mm
Headrest adjustment +35°(grid)
Load capacity 130 kg
The standard configuration includes:
  • A pair of side-mounted surgical rails, dimensions 25 x 10 mm, made of CrNi steel, length 1,560 mm.
  • A removable footboard, dimensions 800 / 1,000 x 320 mm (W x D), frame plastic-coated, tread covered with synthetic leather.
  • The hand and foot switches.
  • A cutout at the foot of the main section to make getting on and off easier.
  • Substructure as a mobile base on retractable castors, swivel castors Ø 75 mm.
  • Floor protectors (clip-on caps) on the four adjustable feet.
  • An integrated protractor.

Accessories & additional options
Article No. Description
A-2047 Arm support, swivel-mounted, black PU-foam arm shell, dimensions approx. 400 x 120 mm (L x W), with 2 Velcro fasteners to secure the arm to the shell, chrome-plated holder with attachment for standard rail.
P-2080/A P-20100/A Paper roll holder, for table width 800 mm. Paper roll holder, for table width 1,000 mm. With mounting hardware, chrome-plated, consisting of two mounting kits (square steel tube 30 x 30 x 2 mm, length approx. 150 mm), two brackets, two clamps and a paper roll holder rod (length 795 / 995 mm, Ø 20 x 1 mm), for mounting on the upholstery frame.
PG-260

Patient belt, dimensions 2,600 x 250 mm (L x W), sewn from synthetic leather, with Velcro closure (hook and loops straps)
