Magnetic Stirrer Hot Plate

Description

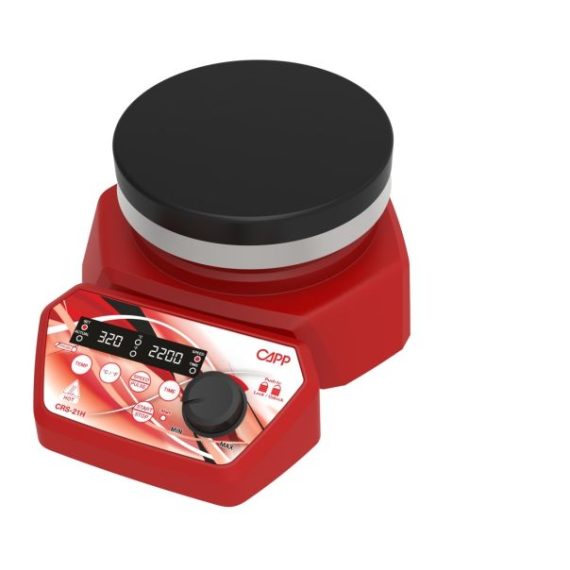

With a load capacity of 10 liters, CAPPRondo magnetic stirrer hot plate comes with a ceramic coated SS plate and a powerful motor, delivering constant speed even under varying load conditions. CAPPRondo magnetic stirrer hot plate offers variable speed setting, ranging from 200 to 2.200 rpm, increasing in steps of 10 rpm. It heats the samples from the ambient temperature up to 320°C. Once the plate temperature has reached 50°C, a LED indication will show up. Apart from the standard temperature setting, where the stirrer will heat up until the exact set up temperature is reached, CAPPRondo magnetic stirrer hot plate has a safety temperature operating mode, in which the achieved temperature will be 25°C lower than the temperature you have set up. I.e. in the safety operating mode, you can set CAPPRondo magnetic stirrer hot plate up for the temperature of 200°C, having the actual temperate not reach 175°C. Consequently, when working with the maximum temparature in the safety mode, when set up for 345°C, CAPPRondo magnetic stirrer hot plate will not exceed the maximum of 320°C. You can program CAPPRondo magnetic stirrer hot plate to run for a certain time, ranging from 1 to 999 mins, or choose the continuous mode of stirring, without any time limitation. CAPPRondo magnetic stirrer hot plate has a last run memory function, so it will automatically start in the mode, in which you have ended your work previously. For more effective mixing you can also use the new pulse mode.

To increase the user comfort, CAPPRondo magnetic stirrer hot plate is equipped with a large display, showing all critical parameters in a clearly visible way. It comes with the P1000 temperature probe along with a stand. Having connected the P1000 temperature probe to CAPPRondo magnetic stirrer hot plate, the probe temperature will appear on the display. When removing the probe, the display will switch back to its default setting, showing the plate temperature.

Technical Specifications

Click here to download Catalogue

Click here to download User Manual

• Ease of use in application and maintenance
• Designed with sample and reagent ID-barcode reading, in-tip dilution reducing consumable costs
• Intuitive and highly flexible open software with complete data reduction and LIS interfaces
• Integrated PC and touchscreen eliminates the need for an external workstation
• Smart time-management allows processing up to 3 microplates simultaneously

• Photometric range: 0 to 3.0 OD
• Spectral range: 400 nm to 700 nm (up to 8 filters)
• Read time: < 15 sec single, < 30 sec dual
• Precision: 1% CV at 1.0 OD
• Accuracy: ±0.005 OD or 2.5 % (whichever is greater)
• Linearity: 0 to 2.000 OD ±1 %

• Min / max. volumes: 10 µl to 300 µl with 300 µl tip, 301 µl to 1000 µl with 1100 µl tip
• Precision (single dispense): < 3 % CV at 20 µl, < 3 % CV at 100 µl
• Precision (multi dispense): < 10 % CV at 16 x 20 µl, < 3 % CV at 8 x 100 µl
• Features: Pipetting pressure monitoring, capacitive liquid level detection, tip detection, mixing, multiple dilution steps, archiving

• Sample and reagent capacity: Up to 192 samples (Flexible: e.g. 144 samples + 8 reagents + 16 controls)

• Temperature range: Up to 45 °C
• Temperature uniformity: ±1.5 °C (with in-process temperature uniformity monitoring)
• Shaking: 20 Hz

• Precision: 10% CV at 300 µl
• Residual volume: <2.5 µl in U-bottom (mean), <4 µl in flat bottom (mean)
• Wash buffer capacity: 3 wash buffers
• Modes: Sweep mode, soak, top and bottom wash, variable pump speed

• Width x Depth x Height: 125 cm x 65 cm (without waste bag) x 75 cm with closed cover (49” x 26” x 30”)

Click Here To Download Catalogue

Click Here To Download Catalogue

• Auto zero function: Manual blanking not required
• Dual wavelength measurement system:
• 2 wave lengths 455nm and 575nm
• Plays major role to remove the interference caused due to Hemolysis & turbidity of sample
• LED Light source:
• LED does not require replacement as it lasts longer
• As compared to Lamp, LED are more suitable as there is no intensity fluctuations
• No warm up time required.
• Flexible unit selection:
• Two units either mg/dl or umol/L are selectable, ease of reporting
• Compact slot for Capillary:
• Accuracy of results are directly related to proper alignment of Capillary
• B-111 has the easiest mode to ensure precise values
• Data transfer:
• External device can be connected to instrument through RS232 por
• USB port

• Light source - LED
• Wavelength - 455nm and 575nm
• Net weight - 1kg
• Measuring range - 0-30 mg/dl , 510 umol/L
• Display - 16×2 LCD module with backlight
• Auto calibration - Yes
• Sample type - Serum or plasma
• Sample volume - 40-80μL
• Test time - <5sec
• Units - mg/dl or umol/L
• Dimensions - 150 (W) × 115 (H) × 190 (D) mm
• Interface - RS232
• Reading cuvette - Heparinized micro capillary holder
• Storage temperature - 15-40°c
• Power supply - DC 9V(DC adapter)
• Power consumption - <2W
