MEDIVENT Flow Lamps

Brands: Famed

~~$0.00~~

Shipped From Abroad

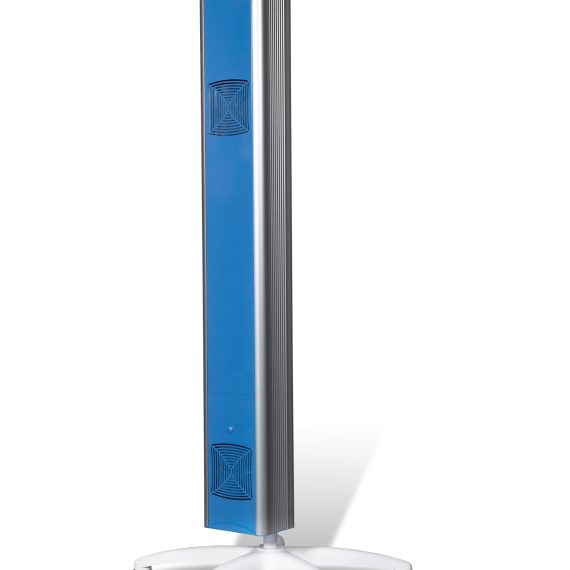

The MEDIVENT is an air-flow germicidal UV-C unit designed for continuous disinfection of indoor air. Contaminated air is drawn into a closed chamber, treated with UV-C radiation (254 nm) and returned hygienically to the room—suitable for rooms with personnel, animals or plants present.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Famed

Description
Reviews (0)

Description

UV-C radiation, including low-pressure mercury discharge (bactericidal lamps), is produced using special quartz glass. This glass has a high transmission coefficient for germicidal radiation, absorbing undesirable UV radiation at 200 nm, which creates ozone in the air. Therefore, TUV lamps produce a negligible amount of ozone, and only during the first 100 hours of operation. However, they emit 95% of their energy at a wavelength of 253.7 nm, which is close to their maximum germicidal effectiveness. The multitude of parameters that must be considered when selecting the number of lamps for a specific room (including fluctuations, temperature, humidity, and dustiness) can lead to an unambiguous formulation, simple rules that precisely explain the problems.

MEDIVENT is available in the following versions:

MEDIVENT 60W – wall-mounted germicidal lamp with two x 30W radiators
MEDIVENT 60F – germicidal tripod lamp with two x 30W radiators
MEDIVENT 110W – wall-mounted germicidal lamp with two
radiators x 55W
MEDIVENT 110F – tripod germicidal lamp with two radiators x 55W

MEDIVENT is equipped with an electronic operating time counter, it displays the following information sequentially:

Time of radiators in hours
Radiator damage indication
type of program

Main areas of application of the MEDIVENT device:

Medicine (hospitals, doctors’ offices, operating rooms, ICUs)
Laboratories ( Laboratories )
Pharmaceutical industry
Gastronomy
Food industry
Schools, kindergartens, offices, government offices
Sanatoriums, holiday homes
Warehouses (warehouses)
Beauty salons, hairdressers
Breeding (1999)

ADVANTAGES:

Provides the cheapest way to disinfect indoor air.
MEDIVENT is effective against the bacteria Pseudomonas aeruginosa (Pseudomonas aeruginosa) and fungi of the genus Candida albicans, which is confirmed by research.
MEDIVENT can work in rooms where people, animals, and plants stay without causing them harm.
MEDIVENT operates quietly, does not emit harmful substances or radiation; unlike chemical methods, disinfected rooms are not contaminated with chemicals.

Specifications

Device type	MEDIVENT 60	MEDVENT 110
Power supply (proper)	220-240V, 50-60Hz
Power consumption [W]	~90 VA	~130 VA
UV lamps (254nm wavelength radiation)	2 UV-C 30W radiators	2 UV-C 55W radiators
Radiator durability	9000 hours
Air flow	40 m3 ^/ h
Fan efficiency	150 m3 ^/h
Class of protection against electric shock	AND
Housing protection class	IP 20
Dimensions (dimensions)	1280 x 170 x 123 mm
Device weight	wall model – 10 kg tripod model – 16 kg
