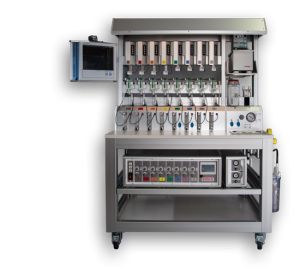

MH measuring station

The MH Measuring Station is an advanced diagnostic laboratory system developed for the investigation of Malignant Hyperthermia (MH) susceptibility through controlled in-vitro muscle contraction testing. Designed for clinical laboratories and research institutions, it enables precise force measurement, stable temperature regulation, and accurate data monitoring under standardized testing conditions. This system supports anesthesiologists and medical specialists in assessing genetic predisposition to MH, contributing to safer surgical planning and improved patient outcomes.

Key Features

• Designed for in-vitro muscle contraction testing

• Precise force measurement system

• Accurate temperature regulation and monitoring

• Controlled testing environment for standardized protocols

• High-sensitivity transducers

• Real-time data acquisition capability

• Laboratory-grade construction

• Suitable for clinical diagnostics and research use

• Reliable and repeatable test performance

Technical Specifications

• Application: Malignant Hyperthermia susceptibility testing

• Test Method: In-vitro muscle contraction assay

• Temperature Control: Precision-regulated heating system

• Force Measurement: High-sensitivity force transducers

• Data Monitoring: Digital recording and analysis interface

• Power Supply: AC mains power

• Installation: Laboratory bench-top system

• Compliance: Designed for clinical laboratory use

• Operating Environment: Controlled laboratory conditions

Click Here To Download Catalogue

• Made of high quality PP material with good transparency.
• Applied for Gilson/Finland/Eppendorf Pipettors.
• Carefully inspect of raw material and manufactured under strict process check, all tips are with excellent accuracy and precison.
• Special siliconizing on the inner surface ensure no liquid adhesion and accurate sample transfer.
• Standard tips and filter tips can be autoclaved, high temperature sterilization acceptable.

Click Here To Download Catalogue

• Ease of use in application and maintenance
• Designed with sample and reagent ID-barcode reading, in-tip dilution reducing consumable costs
• Intuitive and highly flexible open software with complete data reduction and LIS interfaces
• Integrated PC and touchscreen eliminates the need for an external workstation
• Smart time-management allows processing up to 3 microplates simultaneously

• Photometric range: 0 to 3.0 OD
• Spectral range: 400 nm to 700 nm (up to 8 filters)
• Read time: < 15 sec single, < 30 sec dual
• Precision: 1% CV at 1.0 OD
• Accuracy: ±0.005 OD or 2.5 % (whichever is greater)
• Linearity: 0 to 2.000 OD ±1 %

• Min / max. volumes: 10 µl to 300 µl with 300 µl tip, 301 µl to 1000 µl with 1100 µl tip
• Precision (single dispense): < 3 % CV at 20 µl, < 3 % CV at 100 µl
• Precision (multi dispense): < 10 % CV at 16 x 20 µl, < 3 % CV at 8 x 100 µl
• Features: Pipetting pressure monitoring, capacitive liquid level detection, tip detection, mixing, multiple dilution steps, archiving

• Sample and reagent capacity: Up to 192 samples (Flexible: e.g. 144 samples + 8 reagents + 16 controls)

• Temperature range: Up to 45 °C
• Temperature uniformity: ±1.5 °C (with in-process temperature uniformity monitoring)
• Shaking: 20 Hz

• Precision: 10% CV at 300 µl
• Residual volume: <2.5 µl in U-bottom (mean), <4 µl in flat bottom (mean)
• Wash buffer capacity: 3 wash buffers
• Modes: Sweep mode, soak, top and bottom wash, variable pump speed

• Width x Depth x Height: 125 cm x 65 cm (without waste bag) x 75 cm with closed cover (49” x 26” x 30”)

Click Here To Download Catalogue

• Lightweight, fashion design
• Can be rotating smoothly  comfortably hold up to 6 pipettes
• Comfortably hold up to 6 pipettes
