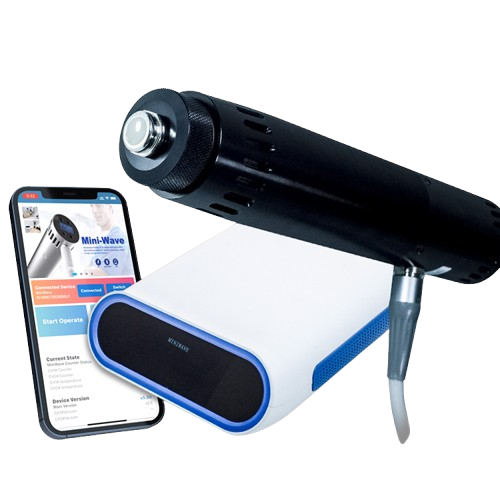

MiniWave Pro Dual Channel Radial Shock Wave Therapy Equipment

Brands: Lumsail

$0.00

Shipped From Abroad

The MiniWave Pro Dual Channel Radial Shock Wave Therapy Equipment is a portable and user-friendly device that offers painless and drug-free treatment for various conditions. With adjustable frequency and intensity, it provides lasting results and high mobility. This versatile equipment is suitable for physiotherapy, aesthetics, men’s health, and rehabilitation applications. It can be controlled manually or remotely via the smartphone app, allowing for personalised treatment.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Brands:: Lumsail

Description



MiniWave Pro Dual Channel Radial Shock Wave Therapy Equipment

Shock wave therapy does not apply electric shock. The MiniWave ESWT is applied by holding a lightweight handpiece against the skin, creating a unique radial wave that penetrates the surrounding target tissue. Energy is spread over a large surface area. The intensity of treatment can be controlled at variable hertz (Hz) or frequencies of 1 to 21 cycles/sec and provides impulses of 10 to 190 millijoules (mJ), precisely adjustable per 5mJ. It can be easily adjusted through single-finger swiping on the front panel of the main unit, pressing buttons on the handpiece, or operating on an iPhone/Android phone. Dual-channel output makes it possible to apply treatment with 2 different transmitters intervalley, or long-time treatment applications (one working and one resting with heat dispelling at the same time).

Chronic and difficult cases of plantar fasciitis, rotator-cuff tendinopathy, Achilles tendinopathy, patellar tendinopathy, and tennis elbow are some of the common conditions to treat using this ESWT Radial Shock Wave Therapy technology. All treatment histories can be traced and printed out via the app.

MiniWave Pro Dual Channel RSWT Radial Shock Wave Therapy Equipment Indications

Physiotherapy Aesthetics Men’s Health Rehabilitation
  • Plantar Fasciitis
  • Heel spurs
  • Dupuytren’s disease
  • Tendinitis of the shoulder
  • Low Back Pain
  • Muscular Imbalance, etc.
  • Cellulite
  • Body Shaping
  • Stretch marks
  • Skin Tightening
  • Buttock Tightening
  • Erectile Dysfunction
  • Peyronie’s Disease
  • Premature Ejaculation, etc
  • Diabetic Foot Ulcer
  • Lower limb wound
  • Keloid Scars
  • Burn Injury, etc.

MiniWave Pro Dual Channel RSWT Radial Shock Wave Therapy Equipment Features and Benefits

The MINIWAVE provides a durable, easy-to-use applicator system. The applicator head features a bright OLED display screen with ergonomic and intuitive power control and frequency control. The applicator has a 2 million-plus pulse lifespan and comes with 6 different-sized therapy transmitters, which are fully made of alloy (non-plastic at all). A travel case is also included. It can work alone, or with APP on a Smart smartphone together when operators want more flexible settings and rich functions, as pre-set protocols, operator/client management, intelligent cooling mechanisms, and even rebrand it.

  • Painless treatment
  • Drug-free treatment
  • Lasting results
  • High mobility
  • Easy to use
  • Pre-set protocols
  • Human-friendly design
  • Controlled manually or remotely by an app for smartphones or tablets
MiniWave ESWT Advantages:
  1. Lasting results and high mobility
  2. Wide range of applications for various conditions
  3. Traceable and printable treatment histories via the app
  4. Portable and travel-friendly with an included travel case
  5. Allows for individualized treatment with flexible settings
  6. Intelligent cooling mechanisms for enhanced comfort
  7. Can be used independently or with the smartphone app for additional functions
Specifications
  • Main unit dimension: 200 (width) x 230 (length) x 78 (height) mm
  • Main unit weight: 1.27Kg
  • Applicator dimension: 210 (length) x 50 (diameter) mm
  • Applicator weight: 0.6Kg
  • Energy: 10 – 190mJ, stepping 10mJ
  • Frequency: 1 – 21Hz, stepping 1 Hz
  • Pulse Mode: Continuous
  • Output channel: Dual-channel output, max 2 applicators connected
  • Transmitter: 6 fully alloy-made transmitters 6mm / 15mm B /15mm U / 15mm F / 25mm / 36mm
  • Applicator lifespan: 2 million shots or more
  • Transmitter lifespan: 150K shots or more
  • Control panel on main unit: Finger-swing touch control with OLED screen
  • Control panel on applicator: 5-button panel with OLED screen
  • Pre-set protocols: 5 protocols, programmable
  • Foot pedal: Optional accessory
  • Firmware upgradable: Yes, via SD card
  • Bluetooth: Yes, available on Pro or Max versions
  • Application on mobile device: Yes, available on Pro version
  • Power: 250W, AC110V-240V, 50/60Hz, or DC48V by external battery (MAX version, cordless mode)
  • Fuse: F5 AC250V, 3.15A
  • Packing:   Aluminum hand case with shaped foam or carton (white box)
