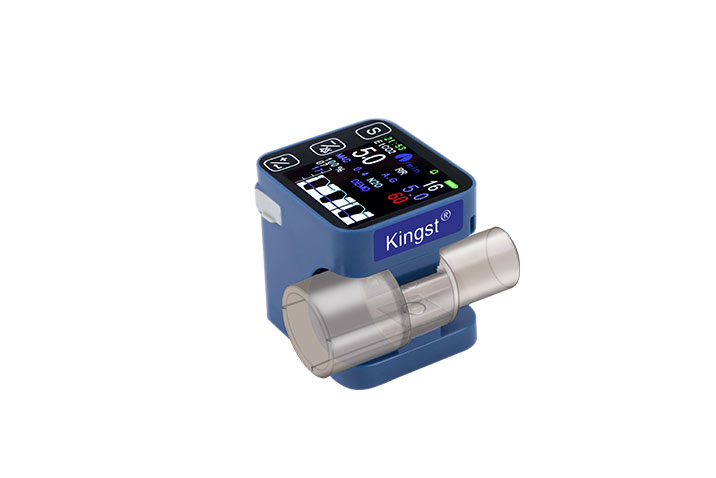

Multigas Monitor AneSure Mini
$0.00
Shipped From Abroad
AneSure Mini can simultaneously measure anesthetic gas, ETCO2, and respiratory rate. Suitable for Emergency, Pre-hospital, and Intra-hospital transport, Operating room as well as ICU.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
Features of AneSure Portable Multigas Monitor AneSure Mini
- Portable And Lightweight
Suitable for emergency, pre-hospital, and intra-hospital transfer, operating room, and ICU, enhancing the safety of anesthesia
- Alarm For Data Overrun And Suffocation
Quick warm-up with the first value displayed in 5 seconds, and accurate readings displayed in 15 seconds. 24-hour trend graphs, not lost when power off
- Large Character Mode
The data can be seen from 5 meters away;
Turn on the unit, and it is ready to use instantly with no need to calibrate;
Automatic atmospheric pressure compensation; Economical adapters reduce usage costs.
- Firm And Durable
Suitable for various medical environments (field, helicopter, etc.)
Specifications of AneSure Portable Multigas Monitor AneSure Mini
| AC Input | 100V -240V, 50Hz/60 Hz to 5VDC Adapter with 5V type-C USBadapter Cable. |
| Battery | Built-in rechargeable lithium battery pack (3.7V, 1200mAH) |
| Temperature | 5 to +50℃ |
| Humidity | ≤80% |
| Atmospheric pressure | 55 – 115 kPa |
| Technique | NDIR (Non-dispersive infrared gas analysis) |
| Sampling Mode | Mainstream |
| EtCO2, FiCO2 measurement | Range: 0 – 150mmHg or 0 – 20kPa or 0 – 19.7% (v/v)
Accuracy: ±2mmHg for CO2 range 0 – 40mmHg ±5% for CO2 range from 41 – 70mmHg ±8% for CO2 range from 71 – 100mmHg ±10% Over 100mmHg |
| Update/Averaging Time | Option of every breath or 10, 20 or 30 seconds |
| FiN2O/EtN2O measurement | Range: 0-100%
Accuracy: ± (2 vol% + 2% of reading) |
| FiHAL/EtHAL, FiENF/EtENF, FiISO/EtISO measurement | Range: 0-12%
Accuracy: 0-8%: ± (0.15 vol% + 5% of reading); 8-12%: unspecified |
| FiSEV/EtSEV measurement | Range: 0-15%
Accuracy: 0-10%: ± (0.15 vol% + 5% of reading); 10-15%: unspecified |
| FiDES/EtDES measurement | Range: 0-25%
Accuracy: 0-18%: ± (0.15 vol% + 5% of reading); 18-25%: unspecified |
| All FiAG | Update: every 2-3 breath
Trends: 24 hours on Screen Trend and Numeric |
| Atmospheric Pressure Compensation | Auto-compensation for atmospheric pressure variation |
| Respiration Rate | Range: 3 – 150 breaths/minute
Accuracy: ±1% of reading or ±1 breaths/min whichever is greater |
| Rise time | CO2 is less than70ms;
N2O is less than300ms; Anesthetic gases (halothane, enflurane, isoflurane, sevoflurane, or desflurane) are less than 300ms |
| Warm Up Time | <15 seconds |
| Agent threshold | 0.2%, When an agent is identified, concentrations will be reported even below 0.2% as long as apnea is not detected |
| Alarm limits | Apnea alarm limits:15-40 sec
High alarm limits EtCO2/ FiCO2:22-150mmHg Low alarm limits EtCO2/ FiCO2: 00-60mmHg High alarm limits FiHAL/EtHAL, FiENF/EtENF, FiISO/EtISO:1.0-8.0% Low alarm limits FiHAL/EtHAL, FiENF/EtENF, FiISO/EtISO:0-6.5% High alarm limits FiSEV/EtSEV:1.0-10.0% Low alarm limits FiSEV/EtSEV:0-6.5% High alarm limits FiDES/EtDES:1.0-18.0% Low alarm limits FiDES/EtDES: 0-6.5% High alarm limits FiN2O/EtN2O:26-100% Low alarm limits FiN2O/EtN2O: 01-78% The high alarm limits of respiration rate:4-150 breaths/min The low alarm limits of respiration rate:0-140 breaths/min |
| Size | 38 x 42 x 44mm (W x H x D) |
| Weight | 80g (including lithium battery and adult airway adapter) |
| Airway Adapter | Dead Space: 5ml (Adult/Pediatric)
1ml (Neonate) |
| Warranty & Maintenance/ Calibration | One-year warranty on the Main Unit and Lithium Ion Rechargeable Battery |
Application Scenarios of AneSure Portable Multigas Monitor AneSure Mini
- Portable, accurate, and real-time anesthetic multi-gas monitor
- AneSure-Mini can simultaneously measure anesthetic gas, ETCO2, and respiratory rate. It is suitable for Emergency, Pre-hospital, and Intra-hospital transport, Operating room as well as ICU.
- It has an alarm function, which will alarm when the measured value reaches the alarm limits or when suffocation occurs.
- The first data can be obtained within 5 seconds after power-on, and full accurate data can be obtained within 15 seconds; the 24-hour Etco2 graph will not be lost when power is off.
- It has a large-character display mode, and the data can be clearly seen from more than 5 meters away.
- It is ready to use after the power is on.
- With simple maintenance and a sturdy structure, suitable for various harsh environments.
