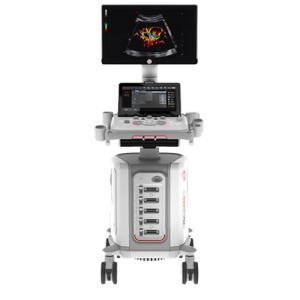

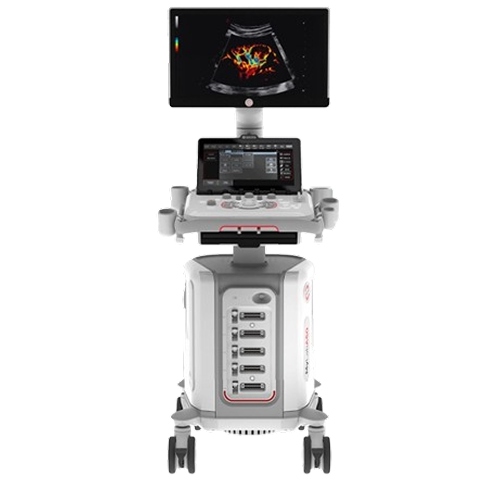

MyLab A70 Ultrasound System
$0.00
Shipped From Abroad
AI-driven ultrasound machine
Agility is the capability to move quickly and easily. With that in mind, we introduce MyLab™A70, an ultrasound system that sets the standard by providing high-quality imaging for advanced patient care while adapting to any clinical setting. Our advanced ultrasound system is designed for ease of use. With an intuitive interface and smooth workflow, it aims to enhance your comfort during scans and boost your confidence in diagnoses. The integrated A.I.-driven tools act as a co-pilot in your daily routine, helping you to focus on what really matters: the health of your patients.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
The Esaote MyLab™A70 is a sophisticated, AI-driven ultrasound system engineered for agility across all clinical settings. It adapts to the user by offering two distinct interfaces and features an optional 24-inch OPTI-LIGHT BARCO monitor for superior detail, paired with a wide, intuitive 13.3-inch multi-function touchscreen. The system prioritizes workflow with 5+1 active probe connectors for instant switching, and its ergonomic keyboard is designed to minimize musculoskeletal strain. Built on robust R&D, the MyLab™A70 is equipped with advanced clinical tools like AutoEF and XStrain RV, making it ideal for a comprehensive range of applications, including General Imaging, Cardiovascular, Women’s Health, and Musculoskeletal. Its battery support option ensures mobility and high performance when unplugged.
Key Features and Benefits
System Design & Usability
-
AI-Driven Tools: Integrated Artificial Intelligence acts as a co-pilot to streamline routines and enhance diagnostic confidence.
-
User Interface: Offers two distinct interfaces on a single platform for optimized user comfort and workflow.
-
Connectivity: 5+1 active connectors for rapid, immediate switching between probes in fast-paced environments.
-
Ergonomics: Redesigned keyboard to reduce musculoskeletal stress; easy-to-clean, corrosion-resistant casing.
-
Mobility: Optional battery support provides fast boot-up and over one hour of full-performance scanning when unplugged.
Imaging & Visualization
-

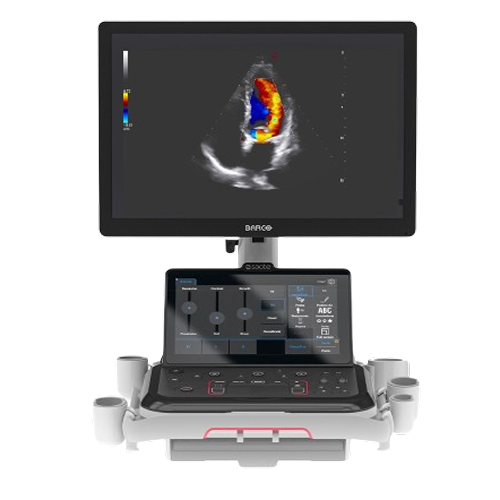

Main Monitor: 24” OPTI-LIGHT BARCO MONITOR (optional) for superior detail enhancement and real-time lighting adjustment via the backlit OptiLight feature.
-
Touchscreen: Wide 13.3” multi-function touchscreen for intuitive, tablet-like operation.
-
Advanced Features (Examples):
-
QAI (Quantitative Analysis Imaging)
-
AutoCM
-
AutoEF (Automatic Ejection Fraction)
-
XStrain RV (Right Ventricle Strain Analysis)
-
BrightFlow
-
3D/4D Imaging (including “Baby face” feature)
-
Clinical Applications
The MyLab™A70 is a versatile system suitable for a wide range of clinical applications, including:
-
General Imaging
-
Cardiovascular (Echocardiography, Vascular)
-
Women’s Health (Obstetrics and Gynecology)
-
Musculoskeletal (MSK)
-
Small Parts
-
Liver Care
-
Interventional/Surgical Procedures
Probe Compatibility (Examples by Type)
The system supports a broad range of transducers for various applications:
| Probe Type | Frequency Ranges (Examples) | Primary Applications (Examples) |
| Convex & Microconvex | C 2-9, mC 3-11, C 1-8A | Abdominal, OB/GYN, Neonatal, Deep Vascular |
| Linear | LX 3-15, L 3-11, L 8-24, IHX 6-25 | MSK, Small Parts, Vascular, Rheumatology, HIP |
| Phased Array | PX 1-5, P 2-9, TE 3-8 | Cardiac, Transcranial, Vascular, Pediatrics |
| Endocavitary | E 3-12 | Gynecology, Obstetrics, Urology |
| Volumetric (3D/4D) | SB3123, VC 2-9 | Obstetrics, Gynecology |
| Interventional | IL 4-13, LP 4-13, SI2C41 | Surgical, Biopsy, Abdominal |
Technical Specifications
| Component | Specification | Notes |
| System Type | AI-driven Cart-based Ultrasound | On-platform system. |
| Probe Connectors | 5 + 1 Active Ports | Allows for immediate probe switching. |
| Main Display | 24″ OPTI-LIGHT BARCO LCD Monitor (Optional) | High-contrast, superior detail enhancement, real-time lighting control. |
| Touchscreen | 13.3″ Wide Screen Multi-function Touchscreen | Used for gesture-based control and intuitive operation. |
| Transducer Technology | New Probe Generation up to 24 MHz | Supports high-frequency imaging for superficial structures. |
| Imaging Modes | B-mode, M-Mode, Color Doppler, Spectral Doppler (PW/CW), 3D/4D, Elastography (ElaXto, QElaXto 2D), Needle Guidance. | Comprehensive imaging capabilities. |
| Power Supply | 110-240 VAC, 50/60 Hz, < 200 VA | Standard AC electrical requirements. |
| Battery Support | Optional; > 1 hour of full performance scanning | Enables continuous operation and mobility. |
| AI Workflow Tools | Augmented Insight™ Suite, Automatic Optimization (eScan, Autoscan, eDoppler), Fast Start (one-probe presets). | Focuses on speed and efficiency. |
| Keyboard | Dual Interface Option: Standard or Cleanable | Customizable to fit working style and hygiene needs. |
| Dimensions (Example System) | Approx. 13.4” w x 14.9” – 15.7” d x 3.8” – 13.4” h | Note: This measurement is for a highly compact configuration (potentially MyLab Alpha) and should be confirmed for the full A70 cart. |
| Weight (Example System) | ~12.4 lbs (system only); ~16 lbs maximum (with battery) | Note: This suggests a highly compact or modular design, but the full cart system will be heavier. |
| Physical Ergonomics | Fully articulated monitor arm (optional), Modular probe holders (optional), Gel warmer (optional). | Designed to prioritize user comfort and strain reduction. |
