MyLab™9 Platform
$0.00
Shipped From Abroad
Shared service ultrasound system
MyLab™9 Platform ultrasound system is designed to support a full range of shared service diagnostic imaging environments. Take ultra-control of your images with unique visualization tools, and view results with clarity and sensitivity to help make more informed clinical decisions. Experience the ultra-comfort of Italian-designed ergonomics and an ultra-easy user interface that increases productivity.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description

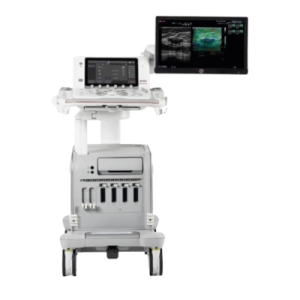

The Esaote MyLab™9 Platform is a high-performance console system designed to bring “ultra” quality, comfort, and ease to shared-service diagnostic environments. The system provides superior image clarity, color, and contrast via its powerful Ultra-Engine architecture, Single Crystal probe technology, and an exceptional 24-inch Full HD monitor.
Ergonomics are maximized through Italian design, featuring a floating keyboard and the innovative APPLEPROBE design to reduce operator strain by up to 70%. Workflow is drastically accelerated by unique features like easyMODE, which intelligently optimizes over 40 imaging parameters in just three quick swipes, ensuring precision and speed in every examination.
Features
-
Ultra-Engine Platform: Powerful imaging backbone delivering precision, contrast, and depth.
-
Superior Visualization: Large 24-inch Full HD Medical-Grade Monitor (optional BARCO™) and a full HD tablet-style touchscreen for control.
-
Advanced Ergonomics: Italian-designed console with a floating keyboard, Opti-light integrated illumination, and APPLEPROBE technology for up to 70% reduction in musculoskeletal strain.
-
Workflow Automation: easyMODE unique touch-tool for intelligent real-time image optimization, and i-motion technology for sustained high frame rates.
-
Comprehensive Clinical Tools: Includes CnTI™ (Contrast Enhanced Ultrasound), QElaXto (Point and 2D Shearwave Elastography), microV (micro-vascular flow), XStrain™ 2D/4D (advanced cardiac analysis), and Virtual Navigator (fusion imaging).
-
High-Frequency Imaging: Supports imaging up to 24 MHz for high-resolution superficial and musculoskeletal applications.
-
Connectivity: Full DICOM support, PACS integration, and remote technical support.
-
Probes: Wide range of high-quality iQProbes, including Single Crystal technology.
Imaging & Visualization Technologies
The MyLab™X90 utilizes exclusive technologies to deliver outstanding image clarity and detail, even in challenging cases.
-
XCrystal Transducer Technology: This is Esaote’s latest generation of probes that dramatically increases sensitivity and penetration, resulting in sharper images and homogeneity from the near-field (superficial) to deeper areas. The technology supports high-frequency imaging up to 25 MHz.
-
ClearWave Architecture: This advanced signal processing framework combines XPower Beamforming and XSmart Postprocessing to set a new standard for image quality. It ensures superior detail enhancement and uniform image rendering.
-
eLED High Dynamic Range Monitor: The system features a large 23.8-inch Full HD monitor (developed with Barco) with Dual-Layer LCD technology. This offers:
-
Brilliant colors and infinite contrast.
-
A contrast resolution ratio up to 40 times higher than conventional LCDs.
-
Higher stability over time for reliable image viewing.
-
-
Opti-Light: An ambient light sensor and integrated backlit lighting feature that automatically optimizes display brightness to the scanning environment, improving comfort and visibility.
Clinical Applications & Advanced Tools
The MyLab™X90 is designed as a 360° shared-service solution, meaning it excels across numerous medical specialties and integrates AI tools—called Augmented Insight™—to automate complex tasks.
1. Cardiovascular (CV)
-
XStrain™: Provides zero-click detection of endocardial border profiles in the Left Ventricle (LV) and detailed exploration of strain in the LV, Right Ventricle (RV), and Left Atrium (LA).
-
AutoEF: Automatic AI-driven contouring of the left ventricle in 4 and 2 chambers to accurately assess the Ejection Fraction (EF).
-
HyperDoppler: Advanced tool for visualizing intracardiac flows and vortices, offering deeper insights for cardiac dynamics research.
2. General Imaging & Interventional (GI)
-
CnTI™ Clear: The latest evolution of Contrast Enhanced Ultrasound (CEUS) technology, which increases the persistence of contrast media and improves coverage of the deepest areas for microperfusion information (e.g., in liver and prostate).
-
LiverFusion & UroFusion: Fusion Imaging technologies that enable the real-time combination of ultrasound data with pre-acquired images (like MRI/CT) for targeted biopsies and navigation procedures, especially in the prostate and liver.
-
QAI (Quantification Attenuation Imaging): Provides mapping and quantification of sound attenuation along the liver depth to evaluate hepatic steatosis (fatty liver).
-
QElaXto 2D: Sophisticated Shear-Wave Elastography software for non-invasive assessment of tissue stiffness, widely used in liver and breast disease management.
3. Women’s Health (OB/GYN)
-
AutoOB: Integrates AI for primary fetal biometric measurements (like BPD, HC, AC, FL) with automatic plane recognition, speeding up the standard examination workflow.
-
3D/4D Imaging: Offers complete volumetric representation solutions for comprehensive fetal and gynecological examinations.
4. Breast & Small Parts
-
Breast Mass Analyser (BMA): Provides automatic AI-driven proposals for breast lesion classification in regions of interest.
-
Automatic Contouring: AI-based automatic contouring of thyroid and breast lesions in suspicious areas.
Probe Types & Compatibility
The MyLab™X90 platform supports a very wide variety of XCrystal and high-frequency probes for a multidisciplinary approach, with five transducer connectors for immediate switching.
The system is compatible with several probe types, including:
| Probe Type | Key Application Areas | Example Probes (General Type) |
| Linear Array | Vascular, Musculoskeletal (MSK), Small Parts (Thyroid, Breast), high-frequency superficial imaging (up to 25 MHz with the LMX 4-20 HD Single Crystal probe) | LMX, LX, L, IH |
| Convex & Microconvex | Abdominal, General Imaging, Obstetrics/Gynecology, Deep Vascular, Pediatrics | CX, C, mC |
| Phased Array | Cardiac (Adult & Pediatric), Transcranial Doppler (TCD) | PX, P, P2, TE |
| Volumetric | 3D/4D imaging for Obstetrics/Gynecology and volume acquisitions | SB |
| Endocavitary | Transvaginal (Gynecology/Obstetrics), Transrectal (Urology) | E, TLC |
