Neuron Spectrum 65 Video EEG Monitoring System
$0.00
Shipped From Abroad
The Neuron-Spectrum-65 Video EEG Monitoring System by Neurosoft is an advanced 39-channel EEG system designed for comprehensive neurophysiological diagnostics, including video EEG monitoring, polysomnography (PSG), and long-term studies. It features high-quality signal acquisition, real-time impedance monitoring, and multimodal data integration for clinical and research applications.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
Features
- long-term video EEG monitoring
- EEG workstation and mobile system
- up to 3 Full HD video cameras
- special electrode caps
- EEG analysis during acquisition
- pre-surgical monitoring to localize pathologic activity in the brain
- data storage on removable media
Advantages
Long-term video EEG monitoring
Neuron-Spectrum-64 provides synchronous long-term video and EEG monitoring even for several days. The high-quality EEG signal and frame-accurate video synchronization are guaranteed. You can also connect the recording unit to a local area network (LAN) to place the patient in one room, and the analysis and data processing unit to another one.
EEG workstation and mobile system
Depending on your needs, we can offer you stationary or mobile system for video EEG monitoring.
If you have a special room, you can place EEG workstation here. In this case, the patient’s room and the room for EEG review and analysis can be removed from each other at any distance.
If there is no such room, the mobile system for video EEG monitoring is a perfect choice that allows you to perform examinations in any suitable room of your medical facility.
Up to 3 Full HD video cameras
In your EEG lab, you can perform continuous synchronous video EEG recording using up to 3 network cameras with maximum resolution of 1920*1080 (Full HD), automatic day and night video recording with infrared lighting, and a built-in microphone. With such functionality, you will never miss a single detail. The storage and review of recorded video is ensured by modern video compression algorithms and editing tools.
Special electrode caps
The special electrode caps with built-in electrodes are a perfect choice for long-term EEG monitoring. There is no need to use adapters or other devices, just connect the cap to the standard connector on the EEG system. Our systems are delivered with special extension cables for electrode caps for the patients to feel comfortable and move freely within the place they are examined.
The quality of electrode placement is very important during the whole acquisition process. The function of continuous impedance monitoring is implemented in Neuron-Spectrum-64. If the impedance of any electrode increases, the software informs the operator immediately. Throughout the examination, the impedance of each electrode is saved and displayed as a trend. So, you can always see the impedance value at the required time moment.
EEG analysis during acquisition
To save your time on routine operations, EEG search and analysis algorithms are built into Neuron-Spectrum.NET. And you can focus on really important things. During the acquisition, the software is already recording suspicious phenomena and making calculations and analysis of EEG signal. So, you can view the recorded video and EEG traces directly during the acquisition. By the time the examination is finished, you can create a report generated automatically according to a preset template.
Pre-surgical monitoring to localize pathologic activity in the brain
Before surgical therapy of pharmacoresistant epilepsy, it is important to localize the pathological activity in the brain. Using Neuron-Spectrum-64, you can perform the pre-surgical monitoring with both scalp and invasive (cortical or subcutaneous deep) EEG electrodes and calculate the location of pathological areas with a special 3D localization software.
During the acquisition, the monopolar, bipolar or mixed montages can be used in the 10-20 or 10-10 systems. You can change the montage at any moment: before or during the acquisition or during the review and analysis of EEG record. You can also change the channel settings. For example, if you cannot remove the EEG baseline in frontal leads, specify the higher values for high-pass filter only for them. Change the parameters of any channel directly during the acquisition.
Data storage on removable media
When the exam is finished, you can record it on a removable media and give it to the patient or send to another medical facility. Using Neuron-Spectrum.NET, you can save the study to DVD or a flash card with a special viewer program and view the examination on any computer without installation.
Specifications
| Specification | Details |
|---|
| EEG Channels | 39 referential channels |
| Differential Channels | 8 AC/DC channels (ECG, EOG, EMG, etc.) |
| Dedicated Channels | Separate ECG and EOG channels |
| Sampling Rate | 16 kHz ± 1% |
| A/D Conversion | 24-bit resolution |
| Input Voltage Range | –1.1 V to 1.1 V (software configurable) |
| Input Impedance | >100 MΩ |
| External Connections | SpO₂ integration support |
| Connectivity | USB interface for data transfer |
| Continuous Impedance Monitoring | Real-time electrode contact assessment |
| Synchronous Video Recording | Supports up to 3 network cameras |
| Auditory Stimulator | Supports event-related potentials (ERP) studies |
| Dimensions | 200 mm (W) × 135 mm (D) × 45 mm (H) |
| Weight | ~767 grams |
Quick Comparison
| Neuron Spectrum 65 Video EEG Monitoring System remove | BRAINSWAY Deep TMS H7 Coil remove | BRAINSWAY Deep TMS H4 Coil remove | Nitrogen Generator/Plant remove | Retractors remove | BRAINSWAY Deep TMS 104 RCT System remove | |||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | Neuron Spectrum 65 Video EEG Monitoring System remove | BRAINSWAY Deep TMS H7 Coil remove | BRAINSWAY Deep TMS H4 Coil remove | Nitrogen Generator/Plant remove | Retractors remove | BRAINSWAY Deep TMS 104 RCT System remove | ||||||||||||||||||||||||||||||||||||
| Image |  |  |  |  |  |  | ||||||||||||||||||||||||||||||||||||
| SKU | SF1033560130187-2 | SF1033560130162-5 | SF1033560130162-7 | SF103356013077 | SF1033560130176-9 | SF1033560130162-3 | ||||||||||||||||||||||||||||||||||||
| Rating | ||||||||||||||||||||||||||||||||||||||||||
| Price |
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||
| Stock | ||||||||||||||||||||||||||||||||||||||||||
| Availability | ||||||||||||||||||||||||||||||||||||||||||
| Add to cart | ||||||||||||||||||||||||||||||||||||||||||
| Description | Shipped From Abroad
The Neuron-Spectrum-65 Video EEG Monitoring System by Neurosoft is an advanced 39-channel EEG system designed for comprehensive neurophysiological diagnostics, including video EEG monitoring, polysomnography (PSG), and long-term studies. It features high-quality signal acquisition, real-time impedance monitoring, and multimodal data integration for clinical and research applications.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
| Shipped From Abroad
The H7 Coil stimulates the anterior cingulate cortex and the medial prefrontal cortex. Complementing a large-scale, double-blind, multicenter randomized controlled trial, which demonstrated strong response rates, greater than 1 in 2 OCD patients who completed 29 sessions in real clinical practice achieved sustained response.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
| Shipped From Abroad
The H4 Coil stimulates the bilateral insula and prefrontal cortex. Nearly 1 in 3 patients who completed 18 sessions achieved 4 or more weeks of abstinence from smoking in a large scale, double-blind, multicenter randomized controlled trial. 2 out of 3 patients who quit smoking by the end of treatment remained abstinent for at least an additional three months
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
| Shipped From Abroad
PSA Industrıal nitrogen generator systems produce gas nitrogen from compressed air from the field where they work, and switch compatible to conventional nitrogen gas source such as tubes or cryogenic liqiud.
Delivery & Availability:
Typically, 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
| Shipped From Abroad
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
| Shipped From Abroad

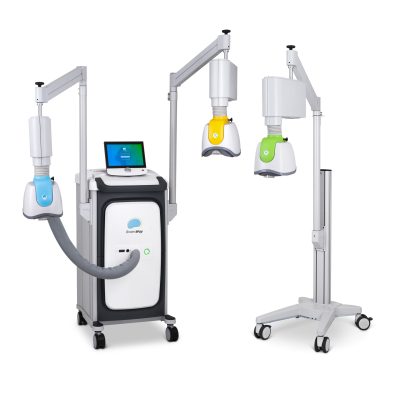

BrainsWay's 104 RCT System enables blinded clinical research via a card reader that randomizes selection of sham or Deep TMS stimulation. The sham coil is integrated into the helmet with the treatment coil, producing similar sounds and sensations.
