Radiology

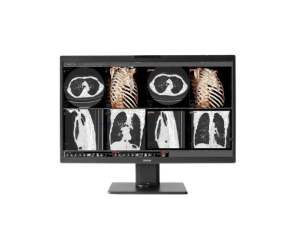

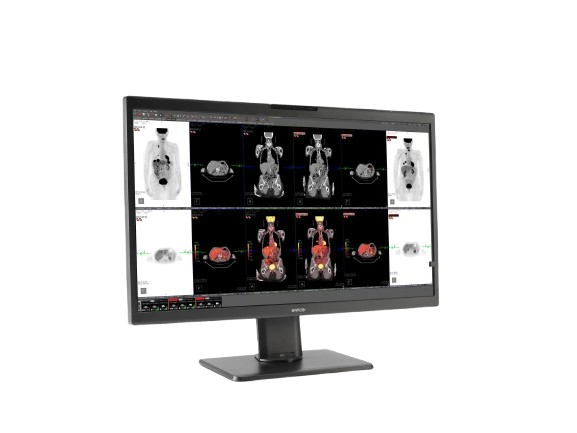

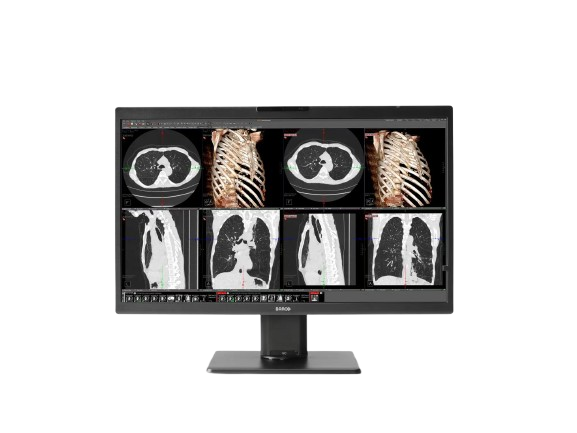

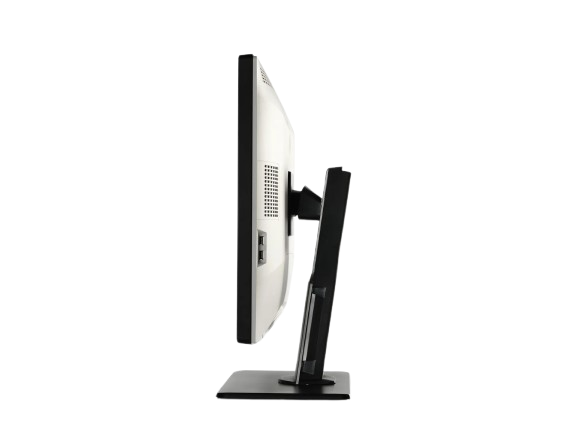

Nio Color 8MP (MDNC‑8132)

Brands: Barco-Health

~~$0.00~~

Shipped From Abroad

The Barco Nio Color 8MP (MDNC-8132) is a 32-inch IPS diagnostic display offering native 8-megapixel resolution, high luminance, wide color gamut, built-in QA functions, and image uniformity — ideal for radiology, mammography, and multi-modality imaging.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Barco-Health

Description
Reviews (0)

Description

The Nio Color 8MP (MDNC-8132) by Barco is a premium diagnostic monitor designed to consolidate multiple images and clinical data on a single screen without losing detail. With a native resolution of 6848 × 4560 on a 32-inch IPS panel, it enables radiologists to view mammography, CT, MRI, and PACS images together. The display supports advanced calibration, uniformity correction (PPU), ambient light adaptation, and built-in QA via I-Guard and Barco’s QAWeb. High brightness, color/gray fidelity, and ergonomic design make this display suitable for critical diagnostic environments.

Barco’s Nio Color 8MP display is the ideal choice for radiology image interpretation in various settings. It seamlessly merges our acclaimed image quality and detail with built-in features that make collaboration with peers – from any location – easy and clutter-free.

Excellent 8MP image quality on a large 32” screen

Whether you’re working in an office, at home, or any other location, a solid setup is crucial. With its remarkable 8MP resolution and generous 32” screen, Nio Color 8MP empowers you to combine the information and images you need on a single screen.

The monitor includes our Intuitive Workflow Tools and cutting-edge technologies:

SteadyGray for precise and consistent representation of grays
SteadyColor for accurate and consistent representation of colors
I-Guard for stable performance across the display’s full lifetime
Uniform Luminance Technology for screen-wide uniformity correction
Ambient Light Compensation for optimal viewing in various lighting conditions
RapidFrame for sharp and fast image rendering when scrolling through cine images

Your perfect fit for reading radiology images, anywhere

In addition to the Nio Color 8MP’s exceptional core features, you also get:

Integrated camera, speaker, and microphone
Our advanced screensharing tool, Multi-Display Confer, for smooth virtual collaboration
KVM functionality for effortless switching between multiple workstations
Daisy chaining to keep your desk free of cable clutter

Stable performance, remotely managed

Enjoy automated QA and compliance for a stable performance anywhere, during the full lifetime of your monitor, thanks to QAWeb Enterprise. Finally, Barco’s all-inclusive warranty assures you a full return on investment over at least 5 to 7 years of your display.

A+ ecolabel for Nio Color 8MP

The Nio Color 8MP has been subjected to Barco’s ecoscoring protocol and has received an A+ rating. Some key factors that contributed to this rating are:

Automatic standby mode when the device is not in use
Use of plastics containing 35% post-consumer recycled content
>50% halogen-free cables & >65% halogen-free PCBs
>90% recyclable packaging
5 years all-inclusive warranty, extendable to 7 years

Key Features

8MP resolution (6848 × 4560) on a 32-inch IPS
Supports both color and grayscale imaging
Uniformity correction via PPU (Pixel Perception Uniformity)
SteadyGray™ and SteadyColor™ for stable luminance and color (with matching Barco controller/driver)
RapidFrame™ support for smooth display of motion/cine images
I-Guard front sensor for automatic QA / calibration
Ambient light presets and front light sensor
High color gamuts: 117% NTSC, 140% sRGB, 107% DCI-P3
Max Panel Brightness: ~2300 cd/m², calibrated 1200 cd/m² DICOM
Connectivity with 4× DisplayPort 1.4
Medical/electrical safety certifications

Specifications

Category	Specification
Screen Technology	IPS
Active Screen Size	32.0″ (812.80 mm); 708.48 × 398.52 mm (27.9 × 15.7″)
Aspect Ratio	16:9
Resolution	8 MP (3840 × 2160 pixels @ 60 Hz)
Pixel Pitch	0.1845 mm
Color Imaging	Yes
Gray Imaging	Yes
Bit Depth	30-bit
Viewing Angle	170° (H/V)
Uniformity Correction	ULT
SteadyGray	Yes
SteadyColor	Yes (with MXRT Display Controller & QAWeb Enterprise)
Pathology Setting	Yes
Color Gamut	NTSC: 94%, sRGB: 132%
sRGB Delta E2000	Average < 3, Max < 5
RapidFrame	Yes
Ambient Light Presets	Yes, reading room selection
Ambient Light Sensor	Yes
Front Sensor	Yes (I-Guard)
Presence Sensor	Yes
Maximum Luminance	850 cd/m²
DICOM Calibrated Luminance	420 cd/m²
Contrast Ratio	1350:1
Response Time	12.7 ms ((Tr + Tf)/2)
Housing Color	Black (RAL 9004) / White (RAL 9003)
Video Input Signals	2 × DisplayPort 1.4
Video Output Signals	1 × DisplayPort (MST)
USB Ports	2 × USB-B 2.0 upstream; 5 × USB-A 2.0 downstream (1 charging)
KVM Switch	Yes
Power Rating	24 VDC, 8.3 A
Power Requirements	Adapter Tech ATM200T-P240 (100–240 Vac, 50–60 Hz, 2.5–0.9 A; Output: 24 VDC, 8.3 A)
Power Consumption	60 W (nominal); <0.35 W (hibernate/off)
Dimensions with Stand	743 × 518~618 × 238 mm
Dimensions without Stand	743 × 459 × 63 mm
Packaged Dimensions	898 × 752 × 358 mm
Net Weight with Stand	13 kg
Net Weight without Stand	8.4 kg
Packaged Weight	21 kg (without optional accessories)
Tilt / Swivel / Pivot	Tilt: -5° to +25°; Swivel: ±30°; Pivot: N/A
Height Adjustment Range	100 mm
Mounting Standard	VESA (100 mm)
Screen Protection	N/A
Recommended Modalities	All digital images, except digital mammography
Certifications	CE0123, FDA 510(k) K233693, CCC, KC, INMETRO, BIS, EAC (Pending)
Safety Standards	IEC/EN/AAMI/CSA 60950-1, 62368-1, 60601-1
EMI Compliance	IEC/EN 60601-1-2, FCC Part 15 Class B, ICES-001 Level B, VCCI (Pending)
Environmental Compliance	EU RoHS, China RoHS, REACH, Canada Health, WEEE, Packaging Directive
Supplied Accessories	User Guide, Quick Install Sheet, Documentation Disc, System Sheet, Video & USB cables, External Power Supply
Optional Accessories	Display Controller, Touch Pad, QA Software, QAWeb Enterprise
Warranty	5 years, including 20,000 hours backlight warranty
Operating Temperature	0–35 °C (specs: 20–30 °C)
Storage Temperature	-20–60 °C
Operating Humidity	8–70% (non-condensing)
Storage Humidity	5–70% (non-condensing)
Operating Pressure	70 kPa
Storage Pressure	50–106 kPa
