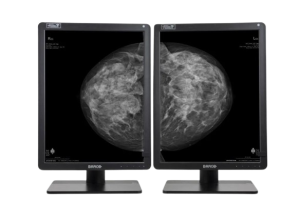

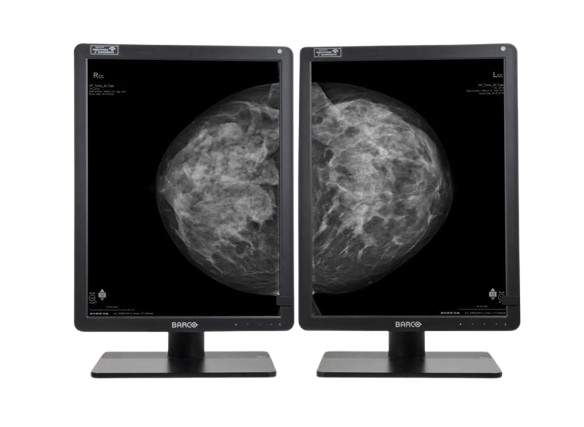

Nio-58MP-Gray-dualhead-mammopreview-jpg-removebg-preview

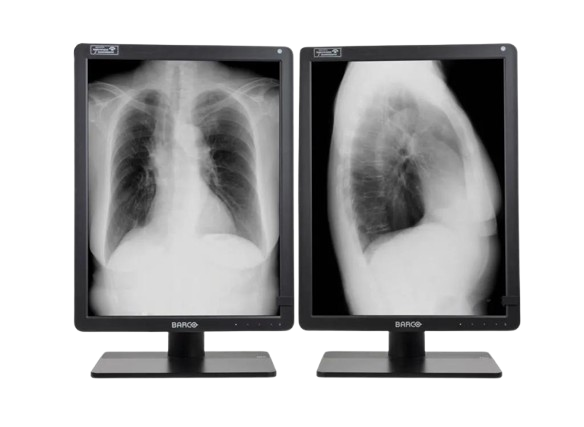

Nio-58MP-Gray-dualhead-chestpreview-jpg-removebg-preview

Nio Gray 5.8MP (MDNG‑6221)

Brands: Barco-Health

~~$0.00~~

Shipped From Abroad

The Barco Nio Gray 5.8MP (MDNG-6221) is a high-performance grayscale medical display designed for mammography and diagnostic imaging. It ensures superior image clarity, consistent luminance, and advanced calibration for precise and reliable clinical interpretation in breast imaging and radiology.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Barco-Health

Description
Reviews (0)

Description

The Barco Nio Gray 5.8MP (MDNG-6221) is a premium grayscale diagnostic display optimized for mammography and breast imaging. With a 5.8-megapixel resolution, exceptional luminance, and DICOM compliance, it delivers outstanding image quality for accurate detection and interpretation. Equipped with I-Guard for continuous quality assurance and QAWeb for remote management, this display ensures long-term consistency and reliability. Its ergonomic design and advanced grayscale rendering make it the ideal solution for radiologists requiring precise visualization in demanding diagnostic environments.

Bigger image, more details

Reliable reading

The Nio Gray 5.8MP offers you more Just Noticeable Differences, thanks to its high brightness and contrast ratio. Our integrated stability, calibration, and uniformity technologies make sure that image quality, light output and DICOM compliance remain consistent over the years. The ambient light measurement sensor helps you stay in control of the environment you work in.

Efficient workflow

The Nio Gray 5.8MP is more than a grayscale display alone. It offers many ways to personalize settings to your liking, such as preferred tints of white or viewing angle. The KVM option helps you switch between workstations at the touch of a button.

On top of that, the display can help you improve your efficiency and speed, thanks to the set of Intuitive Workflow Tools included with our MXRT medical display controllers.

Did you know that SpotView, for example, makes it possible to make an area you choose twice as bright as it was originally? It’s been proven to help radiologists reduce their reading time by as much as 15.5%.

Long lifetime, clear view

Install our free and secure QAWeb Enterprise application, and rely on intervention-free, remote quality assurance.

To summarize, your Nio Gray 5.8MP is a functional, easy-to-use diagnostic display system, fully up to date with today’s innovations in general grayscale radiology, as well as 2D and 3D mammography. It comes with a 5-year warranty on all its components.

Ensuring diagnostic confidence with MDR Class IIa

Our radiology displays are MDR-certified as Class IIa. Their product information has been reviewed and cleared by independent medical and technical experts, and is audited yearly. In other words, we ensure diagnostic confidence and peace of mind for our users.

Technologies that enhance image quality:

More detail on your screen, with 5.8MP resolution
Designed to show breast images entirely, with a 3:4 aspect ratio
Increased contrast, with a 1400:1 contrast ratio and 600 to 1000 cd/m² calibrated luminance
Consistent brightness and grays, with Uniform Luminance Technology and SteadyGray
Always stable DICOM images and auto QA, with I-Guard front sensor and optionally, QAWeb Enterprise
Possibility to boost luminance, with I-Luminate and SpotView
Optional settings and tools to adjust the display to your workflow, with Intuitive Workflow Tools

Ecolabel A for Nio Gray 5.8MP

The Nio Gray 5.8MP has been subjected to Barco’s ecoscoring protocol and has received an A rating. Some key factors that contributed to this rating are:

Energy-efficient power supply, energy-efficient standby, and off modes
Possibility to automatically switch to standby mode when the device is not in use
Halogen-free cables and plastics
Use of recycled cardboard in packaging (>85% recycled content)
Product design optimized for disassembly with common tools

Features

5.8MP high-resolution grayscale medical display
Optimized for mammography and diagnostic imaging
High luminance and contrast for clinical accuracy
I-Guard sensor for real-time quality assurance
DICOM calibration for consistent grayscale performance
QAWeb for remote quality and compliance management
Ergonomic design for comfortable, extended use

Specifications

Category	Specification
Screen Technology	LCD
Active Screen Size	21.3″ (541 mm); 324 × 433 mm (12.77″ × 17″)
Aspect Ratio	3:4 per display (portrait), 3:2 overall
Resolution	5.8 MP (2100 × 2800 pixels)
Pixel Pitch	0.1545 mm
Color Imaging	No
Gray Imaging	Yes
Bit Depth	10-bit
Viewing Angle	178° (H/V)
Uniformity Correction	ULT
SteadyGray	Yes
SteadyColor	N/A
I-Luminate	Yes
Ambient Light Presets	Yes, reading room selection
Ambient Light Sensor	Yes
Front Sensor	Yes (I-Guard)
Presence Sensor	N/A
Maximum Luminance	1560 cd/m²
DICOM Calibrated Luminance	Factory default: 600 cd/m²; Warrantied max: 1000 cd/m²
Contrast Ratio	1400:1
Response Time	12.5 ms ((Tr + Tf)/2)
Housing Color	Black (RAL 9004) / White (RAL 9003)
Video Input Signals	2 × DisplayPort 1.4
Video Output Signals	N/A
USB Ports	2 × USB-B 2.0 upstream; 5 × USB-A 2.0 downstream (1 charging)
KVM Switch	Yes
Power Rating	24 VDC, 5 A
Power Requirements	AdapterTech ATM160T-P240 (100–240 Vac, 50–60 Hz, 1.8–0.9 A; Output: 24 VDC, 6.6 A)
Power Consumption	60 W (nominal); 0.4 W (hibernate/off)
Dimensions with Stand	Portrait: 378 × 528~628 × 235 mm; Landscape: 491 × 472~572 × 235 mm
Dimensions without Stand	Portrait: 378 × 491 × 84 mm; Landscape: 491 × 378 × 84 mm
Packaged Dimensions	500 × 280 × 670 mm
Net Weight with Stand	With cover: 11.9 kg; Without cover: 10.6 kg
Net Weight without Stand	With cover: 6.9 kg; Without cover: 5.6 kg
Packaged Weight	With cover: 16.9 kg; Without cover: 15.6 kg
Tilt / Swivel / Pivot	Tilt: -10° to +30°; Swivel: ±45°; Pivot: 90°
Height Adjustment Range	100 mm
Mounting Standard	VESA (100 mm)
Screen Protection	Optional protective, anti-reflective glass
Recommended Modalities	All digital images, including digital mammography
Certifications	FDA 510(K) K170476, CE0123, CCC, KC, INMETRO, BIS
Safety Standards	IEC/EN/AAMI/CSA 62368-1, 60601-1
EMI Compliance	IEC/EN 60601-1-2, FCC Part 15 Class B, ICES-001 Level B, VCCI
Environmental Compliance	EU RoHS, China RoHS, REACH, Canada Health, WEEE, Packaging Directive
Supplied Accessories	User Guide, Documentation Disc, System Sheet, DisplayPort Cable, USB Cable, Mains Cable(s), External Power Supply
Optional Accessories	Graphics Board, QA Software, QAWeb Enterprise
Warranty	5 years, including 40,000 hours backlight warranty
Operating Temperature	0–40 °C (specs: 15–30 °C)
Storage Temperature	-20–60 °C
Operating Humidity	8–80% (non-condensing)
Storage Humidity	5–85% (non-condensing)
Operating Pressure	70 kPa
Storage Pressure	50–106 kPa
