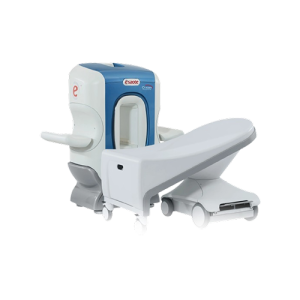

O-scan: The ideal solution for extremities MRI

Engineered for performance

Imaging & Visualization

The O-scan system is engineered for maximum performance and patient experience in a compact footprint.

• Compact & Efficient: It is a very compact system, requiring only 9 m² of installation space, and can be installed in virtually any office or practice with ease.

• High Throughput: The system is capable of scanning up to 3 patients per hour, significantly enhancing workflow and productivity in clinics.

• Patient Comfort: It offers an optimal patient experience with a design that eliminates claustrophobia—only the extremity being examined is inside the magnet, while the patient sits comfortably. It also features a low acoustic noise level (59.7 dB).

• Sustainability & Economics: It is an eco-friendly and efficient system with low power consumption (1 kW), contributing to cost containment and low running costs.

Clinical Applications

The O-scan is the ideal solution for MRI of the extremities, providing high-quality imaging for musculoskeletal (MSK) pathology.

• Extremity MRI: It provides a complete range of high-quality imaging capabilities for the upper and lower limbs.

• Targeted Use: Its efficiency and economics make it an ideal solution for:

  • Standalone Specialty Clinics

  • An add-on unit in the main Radiology Department to divert suitable patients and reduce waiting lists.

• High-Throughput Environments: It is designed for high-throughput in Radiological settings and Orthopedic practices, allowing direct access to MRI for musculoskeletal diagnosis.

Coils (Probe Types)

The O-scan utilizes a complete set of dedicated Dual Phased Array (DPA) coils for high-quality extremity imaging.

The system's coils are specifically designed for the limbs:

• Knee coil DPA O-scan

• Hand-Wrist coil DPA O-scan

• Ankle-Foot coil DPA O-scan

• BILIPOD LED Double Surface Phototherapy Unit Sturdy Baby Trolley consists of –  Collapsible Acrylic Side Panels  Transparent Baby Tray with Bubble Mattress  Height Adjustment and Angle Adjustment for Overhead LED Module  Four Swivelling castor wheels with brakes Certified Also available - Bilipod Double Surface Phototherapy Unit with Detachable trolley
• Uniform Light Distribution with 11 High Intensity LED Lamps uniform body coverage • Observation Lamp Two Observation White LEDs provide enough light to observe the color of baby’s skin • High Irradiance Levels Irradiance > 30 µW/cm²/nm enables faster bilirubin breakdown • Pin Drop Silent Operation zero noise cooling fan • Optimum Wavelength Range: 420 to 490 nm • Very Low Power Consumption of only 30W • Effective Surface Area : 40cm x 50cm
• Life of Lamps - 30000 hours • Lamp Tilt up to 90° • Height Adjustability up to 50cm • Light Weight Lamp Unit weighs less than 3 Kg • Portable can be placed above Infant incubator or below the Infant Warmer Bassinet to give under surface Phototherapy • Sleek & Compact Lamp Unit Size : 45 x 30 x 5 cm takes minimum space • Timer: LCD Based Timer measuring Total Lamp Usage and Patient Timer
• BiliProbe Irradiance Meter Handheld Irradiance (Flux) meter for measurement of the output of conventional Phototherapy Units.  Bandpass filter - 425nm to 475nm  Range: 0 to 200 uW/cm²/nm  Minimal Graduation: 1 uW/cm²/nm  Accuracy: ± 10%  Measuring Time: Approx 4-5 sec  Press to ON Switch  Battery: 9V Alkaline Phototherapy Eye PATCH has been designed to assure complete comfort, and eye protection for infants during Phototherapy Treatment  Adjustable Band for proper comfort and secure fit  Easy to use design  Large eye protection pad increases light protection  Single Piece wrap around design can be independently adjusted to prevent unwanted movement.  Available in 3 sizes - Preterm, Term and Neonatal Phototherapy Eye Patch

Click Here To Download Catalogue

• 4 way Tabletop Patient Table (PBT-4) A large tabletop with extended travel enables all radiography studies with minimal patient movement, and supporting patient weight up to 300kg. Fully at tabletop without a frame on the edge makes cleanliness and odors free
• Floor Mount Tube Stand (TS-FM6) Floor Rail type tube stand provides all radiography studies with smooth movement on the rail.
• Wall Bucky Stand (WBS) Elegant design, durable and easy-to-use Wall Bucky Stand provides full satisfaction.

• Power Rating - 32KW
• Generator - GXR-32S
• Rotor - Dual Speed Starter(DSS)
• Input Power - 400/480VAC, Three phase
• Line Frequency - 50/60Hz
• X-ray tube - DXT-12M, (0.6/1.2mm, 300kHU)
• Tube Voltage - 40 to 150kV, 1kV Step
• Tube Current – 10 to 640mA
• Output - 640mA@81kV,  500mA@104kV, 400mA@130kV, 320mA@150kV
• Time Range - 1ms to 10s
• mAs Range - 0.1 to 800mAs
• Reproducibility - Coe­cient of Variation : kV < 0.005, Time < 0.005,mAs < 0.01
• Accuracy - kV < ±(1%+1kV), mA < ±(3%+1mA), Time <±(1%+0.5ms), mAs < ±(3%+0.1mAs)
• Linearity - Coe­cient of Linearity < 0.01 : CL = (X1-X2)/(X1+X2), where X is mR/mAs

Click Here To Download Catalogue

• Model NO: BN-3
• Specification: Quality Grade: CE
• HS Code: 38220010
• Feature: Disposable
• Application: Clinical
• Material: Plastic
• Certification: CE, FDA, ISO13485
• Size: 16cm*cm

• TS-CSA-A (Vertical movement, 1.6m stroke, rail length 3x4meter) including HV cable 15m
• WBS-TA:  Vertical movement

1. V Stroke:1,450mm in Uprigh Bucky Position,
2. 1,526mm in Horizontal Bucky position.

• PBT-4 is a 4 way Floating Tabletop with. A large tabletop with extended travel enables all radiography studies with minimal patient movement. Fully fat tabletop without a frame on the edge makes cleanliness and odors free

• Power Rating - 32KW
• Generator - GXR-32S
• Rotor - Dual Speed Starter(DSS)
• Input Power - 400/480VAC, Three phase
• Line Frequency - 50/60Hz
• X-ray tube - DXT-12M, (0.6/1.2mm, 300kHU)
• Tube Voltage - 40 to 150kV, 1kV Step
• Tube Current – 10 to 640mA
• Output - 640mA@81kV,  500mA@104kV, 400mA@130kV, 320mA@150kV
• Time Range - 1ms to 10s
• mAs Range - 0.1 to 800mAs
• Reproducibility - Coe­cient of Variation : kV < 0.005, Time < 0.005,mAs < 0.01
• Accuracy - kV < ±(1%+1kV), mA < ±(3%+1mA), Time <±(1%+0.5ms), mAs < ±(3%+0.1mAs)
• Linearity - Coe­cient of Linearity < 0.01 : CL = (X1-X2)/(X1+X2), where X is mR/mAs
• Mechanical Parts:

1.   V Stroke:1,450mm in Upright Bucky
2. Position, 1,526mm in Horizontal Bucky position.
