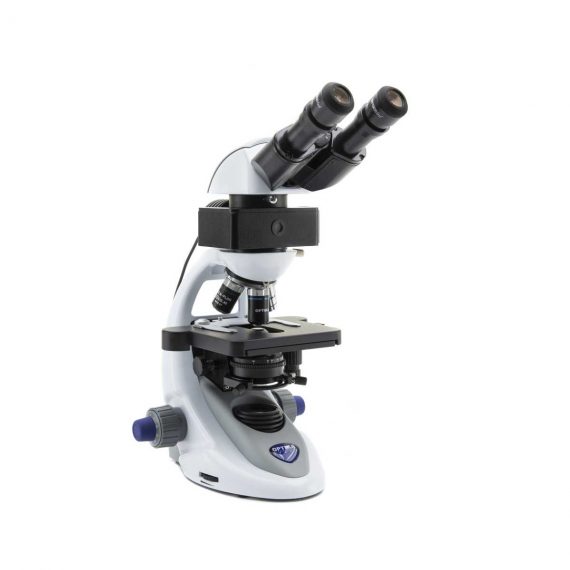

Optika B-292LD1 Binocular LED Fluorescence Microscope

• Observation mode: Brightfield.
• Head: Binocular, 360° rotating and 30° inclined. Interpupillary distance 48-75mm.
• Dioptric adjustment: On the left eyepiece tube.
• Eyepieces: WF10x/20 mm, high eye-point and secured by a screw.
• Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings.
• Objectives: Equipped with binocular head and following objectives: IOS N-PLAN 10x/0.25 (Cover/No Cover), with anti-fungus treatment IOS N-PLAN 20x/0.40 (Cover/No Cover), with anti-fungus treatment IOS N-PLAN 40x/0.65 (Cover/No Cover), with anti-fungus treatment IOS W-PLAN 100x/0.80 (No Cover, Dry), with anti-fungus treatment
• Specimen stage: Double layer rackless mechanical sliding stage, 150×139 mm, 75×33 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.
• Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
• Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable.
• Brightfield Illumination (Fixed Koehler type): X-LED³ with white 3.6 W LED (6,300 K) and light intensity control. Multi-plug 100-240Vac/6Vdc external power supply.
• Fluorescence Illumination: Extra efficiency LED, with light intensity control. Peak wavelength: 465 nm, Power: 3.6W.
• Epi Fluorescence Attachment: Slider with 3 positions (2 fluorescence, 1 brightfield), with 1 included filterset: Fluorescence B: EX 460-490, DM 505, EM 515LP: Acridine Yellow, Acridine Orange, Auramine, DiO, DTAF, FITC, GFP, YFP, etc.

Click Here To Download Catalogue

• Parameters: Na+,K+,Cl-, iCa++ / Li
• It works on ISE principle
• Sample Type: Whole blood, Serum, Plasma, Urine
• Low reagent consumption
• Sample requirement is only 90ul
• 60 samples per hour
• Automatic two point calibration after 4hrs and one point calibration with each sample analysis
• Air bubble detection
• Track reagents consumption and provides alerts
• For low reagent volume
• Precision testing facility to get CV and SD
• Trilevel Quality Control with LJ plots of last 30days
• Low aspiration volume
• Fast sample processing
• Accurate and Precise results

Click Here To Download Catalogue

• Made of high quality PP material with good transparency.
• Applied for Gilson/Finland/Eppendorf Pipettors.
• Carefully inspect of raw material and manufactured under strict process check, all tips are with excellent accuracy and precison.
• Special siliconizing on the inner surface ensure no liquid adhesion and accurate sample transfer.
• Standard tips and filter tips can be autoclaved, high temperature sterilization acceptable.

• Outside Dia.: 87mm
• Material of Construction: Glass
• Capacity: 500mL
• Labware Outside Dia. - English: 3.4"
• Labware Capacity - English: 16.9 oz.
• Graduation Range: 100 to 500mL
• Height: 118mm
• Disposable/ Reusable: Reusable
• Labware Body Color: Clear
• Graduation Subdivisions: 100ml
• Beaker Type: Low Form
• Labware Outside Dia. - Metric: 87mm
• Series: Hauler 4x4 Crew Diesel
• Special Features: Pouring Spout
• Labware Inside Dia. - English: 3.2"
• Sterile/Non-Sterile: Non-Sterile
• Labware Inside Dia. - Metric: 81mm
• Labware Body Material: Glass
• Color: Clear
• Labware Height - English: 4.6"
• Labware Height - Metric: 118mm
• Labware Basic Material: Glass
• Item: Low Form Beaker
• Glassware Class: Not Rated
• Graduations: Yes
• Labware Capacity - Metric: 500mL
• Autoclavable: Yes

• Results in 20 Seconds

• 100µL sample drawn directly from primary EDTA tube

• Fully automated, walk-away operation

• Random access

• Positive patient identification via internal barcode reader

• Compatible with pediatric tube
