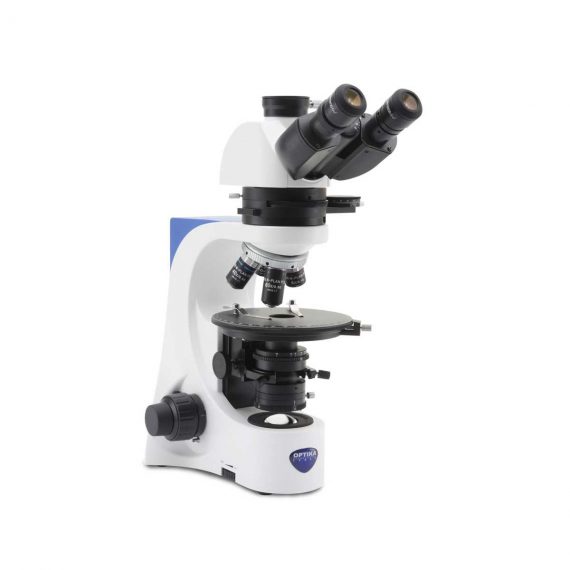

OPTIKA B-383POL Trinocular Polarizing Microscope

Brands: Optika

~~$0.00~~

Shipped from Abroad

OPTIKA polarizing microscopes offer a complete system for your laboratory analysis, including polarizer and analyzer filters, Bertrand lens for conoscopic observation, compensator plates, and high-precision rotatable stages. Also available the X-LED illumination system, a high-intensity light source that delivers bright and clear images.

Delivery & Availability:
Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560098-16

Tags:

Microscope / Optika / OPTIKA B-383POL Trinocular polarizing microscope / Trinocular polarizing microscope

Brands:: Optika

Description
Reviews (0)

Description

Observation mode: Brightfield, transmitted polarized light and conoscopy.
Bertrand lens and polarizing attachment: Swing-out type with centering mechanism for observation in conoscopy/orthoscopy. Rotatable analyzer from 0° to 90° with graduated scale. Tint plates: 1° order red (λ); λ/4; Quartz wedge.
Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating.
Interpupillary distance: Adjustable between 48 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/20 mm, high eye-point and secured by screw. One with crosshair.
Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings. Centering system for each objective.
Objectives (strain-free):
IOS N-PLAN POL 4x/0.10
IOS N-PLAN POL 10x/0.25
IOS N-PLAN POL 40x/0.65
IOS N-PLAN POL 60x/0.80
All with anti-fungus treatment.
Specimen stage: Rotatable stage with locking mechanism. Vernier scale with accuracy 0.1 mm. Diameter 160 mm. Specimen slide clamps.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable. With rotating polarizing filter.
Transmitted illumination (Fixed Koehler type): X-LED³ with white 3.6 W LED (6.300 K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.

Specifications
Head	Trinocular, 30° inclined, 360° rotating.
Eyepiece	WF10x/20mm and with cross-hair micrometer
Bertrand lens	Swing-out type; center-able.
Polarizing attachment	0° – 90° rotating analyzing filter. Tint plates included: 1° order red (lambda), lambda/4, quartz wedge.
Nosepiece	Quadruple, reversed
Objectives	IOS N-PLAN POL 4x, 10x, 40x, 60x View Optika Objective Brochure
Focusing system	Coaxial coarse and fine
Stage	Round, 360° rotating, 160 mm diameter, with sample clips and stop knob
Condenser	Abbe N.A. 1.25, iris diaphragm, focusable and centrable. With rotating polarizer
Illumination	X-LED³ illumination system with brightness control. 3.6 Watt LED Luminous flux: 200 lumen Luminous intensity: 900 cd Equivalent to a dichroic halogen lamp with 20W, Equivalent to a standard halogen lamp with 50W Correlated Color Temperature: 6300K Pure white, no need of blue correction filter.

Click Here To Download Catalogue
