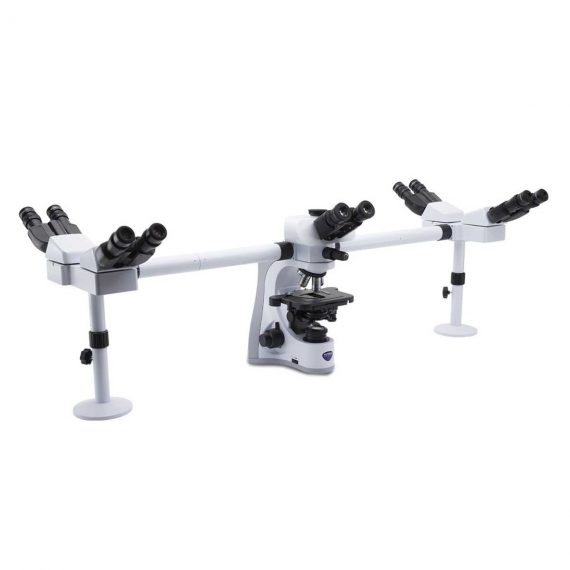

OPTIKA B-510-5 Trinocular Discussion Microscope
$0.00
Shipped from Abroad
OPTIKA B-510 Series represents the ideal, ultra-modern, advanced routine microscope for efficient analysis in transmitted light applications, carefully engineered considering all the relevant aspects for users.
Delivery & Availability:
Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Brands:: Optika
Description
Observation mode: Brightfield.
Head: Trinocular (fixed photo port 50/50), 30° inclined, 360° rotating.
Interpupillary distance: Adjustable between 50 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: Main head: WF10x/22 mm, high eye-point and with rubber cups. Additional head(s): WF10x/20 mm, high eye-point.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives (strain-free):
– IOS W-PLAN 4x/0.10
– IOS W-PLAN 10x/0.25
– IOS W-PLAN 40x/0.65
– IOS W-PLAN 100x/1.25 (Oil)
All with anti-fungus treatment.
Specimen stage: Double layer rackless mechanical stage, 233×147 mm, 78×54 mm X-Y range.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: Swing-out N.A. 0.2/0.9, with iris diaphragm, focusable and centerable.
Transmitted illumination (Full Koehler type): X-LED3 with white 3.6 W LED (6,300K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.
Specifications:
| Optics | |
| Image scale | 4-100 |
| Number of objectives | 4 |
| Lighting | Transmitted light |
| Field curvature | Plan |
| Colour correction | achromatic |
| Suspension | yes |
| Immersion lens | yes |
| Condensor | Abbe N.A.1.25 |
| Lamp type | LED (X-LED3, 3.6 W, comparable to a 50 W halogen bulb) |
| Objective 1 | IOS W-PLAN 4x/0.10, W.D. 17.3 mm |
| Objective 2 | IOS W-PLAN 10x/0.25, W.D. 10 mm |
| Objective 3 | IOS W-PLAN 40x/0.65, W.D. 0.54 mm |
| Objective 4 | IOS W-PLAN 100x/1.25, W.D. 0.13 mm, oil |
| Eyepiece | WF 10x / 22 mm (Ø 30mm) |
| infinity corrected | yes |
| Magnification | 40-1000 |
| Optical system | infinity |
| Capacity | |
| Brightness control | yes |
| Fluorescence | yes |
| brightfield | yes |
| Mechanics | |
| Type of build | Trinocular |
| Viewing posture (°) | 30° angled eyepiece |
| Specimen stage | Cross table |
| Revolver | 5 |
| Focusing | Coarse and fine movement |
| General | |
| Weight (g) | 9100 |
| Height (mm) | 420 |
| Width (mm) | 270 |
| Length (mm) | 390 |
| Series | B-510 |
| Field of application | |
| Biology and Medicine | yes |
Click Here To Download Catalogue
