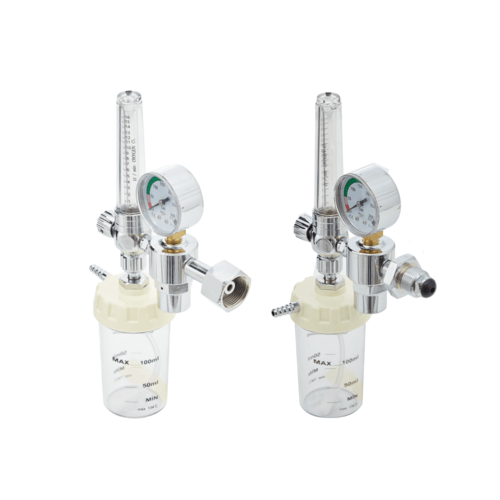

Oxygen Therapy Device

Brands: Uzumcu

~~$0.00~~

Shipped From Abroad

It is designed to adjust and control oxygen flow suitable for use in hospitals, emergency services and at home. It has a standard scaled flowmeter between 0 – 15 L / min., a scaled, sterilizable humidification container made of polycarbonate. It has a chrome-plated brass body.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF10335601273-3

Tag:

Oxygen Therapy Device

Brands:: Uzumcu

Description
Reviews (0)

Description

Key Features

Designed to supply oxygen from high pressure cylinders to patient
Adjusts and controls the oxygen flow
Suitable for homecare usage
0 – 15 lpm standard scaling markings
Chrome plated brass trunk
High resisting polycarbonate humidifier bottle suitable for sterilisation

Technical Specifications

Regulator Inlet Pressure : 196 bar

Regulator Outlet Pressure : 3,5 ~ 4 bar

Adjustable Flow : 0-15 L / min
Pressure Gauge Range : 0-310 bar

Sterilisation method : 134°C (Autoclavable)
