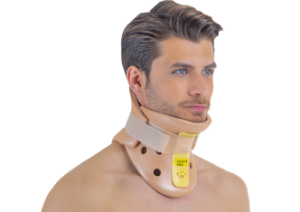

Philadelphia Collar

Brands: Vizor

~~$0.00~~

Shipped From Abroad

Cervical spondylosis.
Post-operative use for cervical care.
Cervical fracture.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF103356013086-71

Brands:: Vizor

Description
Reviews (0)

Description

Contributes to the normalization of blood supply,
relieve inflammation and accelerate the regenerative
processes in the invertebral discs and joints.
High-density foam collar.
A lightweight, two pieces collar in plastazode with
rigit occipital and mandibular posts.
Its anterior and posterior attachments further
restrict cervical movement.

Reviews

There are no reviews yet.

Be the first to review “Philadelphia Collar”

Quick Comparison

Philadelphia Collar remove DrGem Ceiling Analogue X-ray Machine remove Keewell FT-2800 Blood & Infusion Warmer remove DrGem Ceiling Mounted Digital X-ray remove Keewell QW-618 Blood & Infusion Warmer remove Neck Collar Rigid remove

Name Philadelphia Collar remove DrGem Ceiling Analogue X-ray Machine remove Keewell FT-2800 Blood & Infusion Warmer remove DrGem Ceiling Mounted Digital X-ray remove Keewell QW-618 Blood & Infusion Warmer remove Neck Collar Rigid remove


SKU SF103356013086-71 SF1033560074-7 SF1033560075 SF1033560074-4 SF1033560077 SF1033560084-200

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad

Cervical spondylosis.
Post-operative use for cervical care.
Cervical fracture.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from abroad The DrGem Ceiling Analogue X-ray Machine is a diagnostic radiography system that provides reliable high quality radiographic images with a reduced dose. The reliable high-frequency x-ray generators that are known worldwide for their excellent performance, lifetime and stability. Patient tables and wall stands are also offered. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

Technology of control: Microprocessor integrated with temperature sensors provides high precise control Safety system: Permanent running self-tests, 24 hours continuous operating Double independent over-heating protections and automatic cut off Visual and acoustic alarm for high temperature / low temperature/sensor fault Dual channels: Each channel can work independently with own temp. setting and temp control Two channels can be combined to enlarge the warming capacity Heating up to the patient: IV tube is completely wrapped in, no heat loss Delivery & Availability: Typically 7-14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock The GXR-SD is a diagnostic digital radiography system that provides reliable high quality digital radiographic images with a reduced dose. The GXR-SD DR systems offer comprehensive digital solutions to all radiography needs, featuring ACQUIDR digital imaging system with stationary or portable digital flat-panel detectors as well as reliable high-frequency x-ray generators that are known worldwide for their excellent performance, lifetime and stability. Patient tables and wall stands are also offered. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

Clinical Application: *Blood transfusion / infusion for the patients during operation or after operation *Massive blood transfusion/infusion for emergency care and routine blood transfusion infusion in the clinical setting *Intravenous nutrition or nasal feeding *Children and neonates’ infusion *Normal infusion in cold seasons *Heating of the liquid for flushing Delivery & Availability: Typically 7-14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In stock Indications:

Following spinal surgery
Neck sprain or strain
Cervical spondylosis

Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

Contributes to the normalization of blood supply,
relieve inflammation and accelerate the regenerative
processes in the invertebral discs and joints.
High-density foam collar.
A lightweight, two pieces collar in plastazode with
rigit occipital and mandibular posts.
Its anterior and posterior attachments further
restrict cervical movement.

DrGem Ceiling Analogue X-ray Machine is a diagnostic radiography system X-ray Machine that provides reliable high quality radiographic images with a reduced dose. The reliable high-frequency x-ray generators that are known worldwide for their excellent performance, lifetime and stability. Patient tables and wall stands are also offered. Features of DrGem Ceiling Analogue X-ray Machine

TS-CSA-A (Vertical movement, 1.6m stroke, rail length 3x4meter) including HV cable 15m
WBS-TA: Vertical movement

V Stroke:1,450mm in Uprigh Bucky Position,
1,526mm in Horizontal Bucky position.

PBT-4 is a 4 way Floating Tabletop with. A large tabletop with extended travel enables all radiography studies with minimal patient movement. Fully fat tabletop without a frame on the edge makes cleanliness and odors free

Technical Specifications of DrGem Ceiling Analogue X-ray Machine

Power Rating - 32KW
Generator - GXR-32S
Rotor - Dual Speed Starter(DSS)
Input Power - 400/480VAC, Three phase
Line Frequency - 50/60Hz
X-ray tube - DXT-12M, (0.6/1.2mm, 300kHU)
Tube Voltage - 40 to 150kV, 1kV Step
Tube Current – 10 to 640mA
Output - 640mA@81kV, 500mA@104kV, 400mA@130kV, 320mA@150kV
Time Range - 1ms to 10s
mAs Range - 0.1 to 800mAs
Reproducibility - Coecient of Variation : kV < 0.005, Time < 0.005,mAs < 0.01
Accuracy - kV < ±(1%+1kV), mA < ±(3%+1mA), Time <±(1%+0.5ms), mAs < ±(3%+0.1mAs)
Linearity - Coecient of Linearity < 0.01 : CL = (X1-X2)/(X1+X2), where X is mR/mAs
Mechanical Parts:

-TS-CSA-A (Vertical movement, 1.6m, stroke rail length 3x4meter) including HV cable 15m - PBT-4: 4 way Floating Tabletop with Elevating Feature (66cm). - WBS-TA: a. Vertical movement

V Stroke:1,450mm in Upright Bucky
Position, 1,526mm in Horizontal Bucky position.

- HVC-15: 15M HV cable - Auto Collimator

Click Here To Download Catalogue

Features:

Technology of control: Microprocessor integrated with temperature sensors provides high precise control

Safety system:

Permanent running self-tests, 24 hours continuous operating Double independent over-heating protections and automatic cut off Visual and acoustic alarm for high temperature / low temperature/sensor fault

Dual channels:

Each channel can work independently with own temp. setting and temp control Two channels can be combined to enlarge the warming capacity Heating up to the patient: IV tube is completely wrapped in, no heat loss

User friendly interface:

Big LED screen showing set temp., actual temp., heating time and fault situation Easy and quick to set up, ready to use within minutes. Open system: Accepts standard IV tube, no special disposables needed The most economical warming solution without extra consumable costs TECHNICAL SPECIFICATIONS Model: FT2800 Temperature setting: 33 - 41˚C Power supply: a.c.100~240V/50~60Hz Power consumption: Max. 180VA Type of protection against electric shock: Class I Degree of protection against electric shock: BF Applied part; Defibrillation-protected Degree of protection against ingress of liquids: IPX2 Temperature accuracy: ±1.0˚C Overheat protection: 42˚C /43˚C Low temperature alarm: 32˚C Warming up time: From 20˚C to 36˚C approx.2 min. Operating mode: Continuous Dimension (W*D*H): 200×130×250mm Net Weight: 2.3kg Warming profile: - length 1400mm - compatible IV tube 3.5-5.0mm O.D.

Click Here To Download Catalogue

DrGem Ceiling Mounted Digital X-ray is a diagnostic digital radiography system that provides reliable high quality digital radiographic images with a reduced dose. The GXR-SD DR systems offer comprehensive digital solutions to all radiography needs, featuring ACQUIDR digital imaging system with stationary or portable digital flat-panel detectors as well as reliable high-frequency x-ray generators that are known worldwide for their excellent performance, lifetime and stability. Patient tables and wall stands are also offered. Features:

TS-CSA-A (Vertical movement, 1.6m stroke, rail length 3x4meter) including HV cable 15m
WBS-TA: Vertical movement

V Stroke:1,450mm in Uprigh Bucky Position,
1,526mm in Horizontal Bucky position.

PBT-4 is a 4 way Floating Tabletop. A large tabletop with extended travel enables all radiography studies with minimal patient movement. Fully fat tabletop without a frame on the edge makes cleanliness and odors free
Digital Flat Panel Detector (FPD) – Wireless 17X14 (Csl, 4336W) with Auto Exposure Detection (AED) function, there is no DR trigger cable between detector and generator.
Full Featured Imaging Software & Excellent Digital Image Processing:

Provides convenient user interface and easy operation
Anatomical view-based digital image processing automatically optimizes and enhances the quality of the captured image for the pictured anatomy.
Radiographic stand & automatic collimator control function
DICOM 3.0 networking interface includes Worklist, Print, Store, Query for integration with any PACS or RIS

Included – Software, HP Laptop Computer

CPU≥3.2GHz
Memory capacity：≥4GB
Hard drive capacity ：≥500 GB
Resolution: 1280 x 1024
Display size： 21 inch color LCD screen
64 bit Windows 10 operation system
Core: i5

Technical Specification:

Power Rating - 32KW
Generator - GXR-32S
Rotor - Dual Speed Starter(DSS)
Input Power - 400/480VAC, Three phase
Line Frequency - 50/60Hz
X-ray tube - DXT-12M, (0.6/1.2mm, 300kHU)
Tube Voltage - 40 to 150kV, 1kV Step
Tube Current – 10 to 640mA
Output - 640mA@81kV, 500mA@104kV, 400mA@130kV, 320mA@150kV
Time Range - 1ms to 10s
mAs Range - 0.1 to 800mAs
Reproducibility - Coecient of Variation : kV < 0.005, Time < 0.005,mAs < 0.01
Accuracy - kV < ±(1%+1kV), mA < ±(3%+1mA), Time <±(1%+0.5ms), mAs < ±(3%+0.1mAs)
Linearity - Coecient of Linearity < 0.01 : CL = (X1-X2)/(X1+X2), where X is mR/mAs
Mechanical Parts:

-TS-CSA-A (Vertical movement, 1.6m, stroke rail length 3x4meter) including HV cable 15m - PBT-4: 4 way Floating Tabletop. - WBS-TA: a. Vertical movement

V Stroke:1,450mm in Upright Bucky
Position, 1,526mm in Horizontal Bucky position.

- HVC-15: 15M HV cable - Auto Collimator

Click Here To Download Catalogue

Features: Clinical Application: *Blood transfusion / infusion for the patients during operation or after operation *Massive blood transfusion/infusion for emergency care and routine blood transfusion infusion in the clinical setting *Intravenous nutrition or nasal feeding *Children and neonates’ infusion *Normal infusion in cold seasons *Heating of the liquid for flushing Technology of Control: Microcomputer system provides high precise control , permanently running self-tests, and malfunction alarm Temperature monitoring: Numerical display for real-time temperature or setting temperature Accuracy: ±0.5 ℃ Temperature setting: 37 ℃ ~ 40 ℃ ( adjustable at rate of 0.1 ℃) High temperature cut-off: 41℃/45℃/48±3℃

Low temperature alarm: 36 ℃

Normal transfusion / infusion tubing can be used in low flow rate. TECHNICAL SPECIFICATIONS: Power supply: AC 220V±10% 50Hz±1Hz / 110V±10% 60Hz±1Hz Power consumption: Max.250VA Type of protection against electric shock: Class I Degree of protection against electric shock: B Waterproof and dustproof class: lp64 Warming time:<2min

Operating mode: Continuous working

Dimensions: 100×170×210mm Net Weight: 1.3kg
