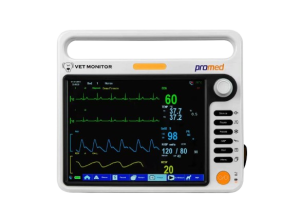

PM-12B VET Patient Monitor

Brands: Promed-Tech

~~$0.00~~

Shipped From Abroad

The PM-12B VET is a versatile veterinary patient monitor with advanced CO₂, IBP, and NIBP functions. Designed to meet CE, FDA, and ISO standards, it ensures reliable monitoring across small and large animals with high accuracy and customizable settings.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Promed-Tech

Description
Reviews (0)

Description

The PM-12B VET Patient Monitor is engineered for veterinary clinics and hospitals requiring accurate, real-time monitoring. It supports optional CO₂ (mainstream or sidestream) and IBP measurements, ensuring comprehensive patient data for various procedures. With advanced over-pressure protection for large and small animals, it provides accurate NIBP readings. The monitor delivers EtCO₂, respiratory rate, invasive pressures, and oxygen parameters with high stability. Certified with CE, FDA, and ISO standards, the PM-12B VET is a dependable choice for professional veterinary monitoring.

Features

CE, FDA, and ISO 21647 certified for veterinary use
Over-pressure protection for large and small animal monitoring
Optional EtCO₂ measurement (mainstream/sidestream)
Optional IBP with 2 channels (ART, PA, CVP, ICP, etc.)
High accuracy and stability with low drift
Wide measurement ranges for CO₂, IBP, and respiratory rate
Compact and efficient design with RS-232 interface

Technical Specifications

Over-Pressure Protection: Large animals 300 mmHg ±10 mmHg; small animals 240 mmHg ±10 mmHg
EtCO₂ (Mainstream): 0–20% / 0–150 mmHg, accuracy ±2 mmHg (<5% CO₂)
EtCO₂ (Sidestream): 0–150 mmHg, sampling 50 mL/min ±10 mL/min
Respiratory Rate: 3–150 BPM, accuracy ±1 breath
IBP (Optional): 2 channels, ART 0–300 mmHg, PA –6 to 120 mmHg, CVP/RAP/LAP/ICP –10 to 40 mmHg, P1/P2 –10 to 300 mmHg
Transducer Sensitivity: 5 mV/V/mmHg, resistance 300–3000 Ω
Response Time: 10 ms
Noise: ≤0.25 mmHg RMS at 5% CO₂
Interface: TTL/RS-232, 19200 baud
Power Supply: 5.0 V DC ±5%, ≤1000 mW consumption
Operating Conditions: 5°C–55°C; Storage –40°C–70°C

Reviews

There are no reviews yet.

Be the first to review “PM-12B VET Patient Monitor”

Quick Comparison

PM-12B VET Patient Monitor remove CryoIQ Pro with LED Light for 16 Gram Gas, & Gas cartridge 25 Gram No2 with Valve remove VE-300-3-Channel Veterinary ECG remove Capnograph and Oximeter CapnoVet3 remove KSY-5 Oxygen Concentrator remove CryoIQ CIQ-DP-L- Cryo DERM Plus Liquid Device with LED Light (CiQ-A-LED) remove

Name PM-12B VET Patient Monitor remove CryoIQ Pro with LED Light for 16 Gram Gas, & Gas cartridge 25 Gram No2 with Valve remove VE-300-3-Channel Veterinary ECG remove Capnograph and Oximeter CapnoVet3 remove KSY-5 Oxygen Concentrator remove CryoIQ CIQ-DP-L- Cryo DERM Plus Liquid Device with LED Light (CiQ-A-LED) remove


SKU SF1033560096-6 SF1033560130151-4 SF1033560130170-3 SF1033560096-4

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad The PM-12B VET is a versatile veterinary patient monitor with advanced CO₂, IBP, and NIBP functions. Designed to meet CE, FDA, and ISO standards, it ensures reliable monitoring across small and large animals with high accuracy and customizable settings.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad CryoIQ^® PRO Contact is based on our contact freezing system (closed gold plated metal contact tips with diameters of 1, 3, 5, or 7 mm). It provides precise treatment of the affected skin areas only in the size of the contact applicator without damage to the surrounding healthy tissue.

Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

Reliability in simplicity

The VE-300 is a compact 3-channel veterinary ECG device that enables 7-lead simultaneous sampling and displaying. With the quick start capability and one-button workflow, it can be your reliable assistant anytime on duty.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad Pet-specific capnography monitors are widely used in veterinary clinical and pet care. It can be used for anesthesia monitoring during pet surgery, respiratory status monitoring during postoperative recovery, and management of chronic respiratory diseases.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad The KSY-5 Vet is a portable, all-in-one veterinary oxygen concentrator offering oxygen generation, atomization, and air purification. It features a large touch LCD, voice broadcast, remote control, timing therapy, and alarms—all optimized for animal healthcare settings.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad CryoIQ device is perfectly fitted for treatment of warts and other common skin lesions. Its unique construction with a built-in non-return valve prevents gas leakage thus giving a maximum use of the gas content. Areas of application are general practice, dermatology, pediatrics, podiatry, aesthetics, veterinary and gynecology/urology.

Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

Features

CE, FDA, and ISO 21647 certified for veterinary use
Over-pressure protection for large and small animal monitoring
Optional EtCO₂ measurement (mainstream/sidestream)
Optional IBP with 2 channels (ART, PA, CVP, ICP, etc.)
High accuracy and stability with low drift
Wide measurement ranges for CO₂, IBP, and respiratory rate
Compact and efficient design with RS-232 interface

Technical Specifications

Over-Pressure Protection: Large animals 300 mmHg ±10 mmHg; small animals 240 mmHg ±10 mmHg
EtCO₂ (Mainstream): 0–20% / 0–150 mmHg, accuracy ±2 mmHg (<5% CO₂)
EtCO₂ (Sidestream): 0–150 mmHg, sampling 50 mL/min ±10 mL/min
Respiratory Rate: 3–150 BPM, accuracy ±1 breath
IBP (Optional): 2 channels, ART 0–300 mmHg, PA –6 to 120 mmHg, CVP/RAP/LAP/ICP –10 to 40 mmHg, P1/P2 –10 to 300 mmHg
Transducer Sensitivity: 5 mV/V/mmHg, resistance 300–3000 Ω
Response Time: 10 ms
Noise: ≤0.25 mmHg RMS at 5% CO₂
Interface: TTL/RS-232, 19200 baud
Power Supply: 5.0 V DC ±5%, ≤1000 mW consumption
Operating Conditions: 5°C–55°C; Storage –40°C–70°C

CryoIQ^® PRO Contact is based on our contact freezing system (closed gold plated metal contact tips with diameters of 1, 3, 5, or 7 mm). It provides precise treatment of the affected skin areas only in the size of the contact applicator without damage to the surrounding healthy tissue. The most versatile model for contact freezing treatment of warts and common skin lesions. Its unique construction with a built-in non-return valve prevents gas leakage, thus giving maximum use of the gas content. With the new PRO model, you now have the possibility to change the tip for different areas of application, such as dermatology, dentistry, podiatry, gynecology/urology, and veterinary. Features:

Simple pencil type grip for easy use and accurate application
A broad range of applicators
Freezing temperature
- Liquid freezing, -89°C / -128°C
- Contact freezing, -80°C / -112°C
The level of cold generated is adjusted by the rate at which the metering lever is depressed
CE marked according to Medical Device II

Technical Specifications:

Name:	CryoIQ^® PRO Contact
Order.no:	CIQ-P-C
Delivered in:	Plastic case
Included in delivery:	1 gas cartridge (16 gram) with valve
Weight:	82 gram (including 16-gram cartridge)
Dimensions:	Diameter: 22 mm / Length: 130 mm
Freezing temperature:	“Liquid freezing”, -89 °C / -128 °F
	“Contact freezing”, -80 °C / -112 °F
Contact surface for CIQ-P-C:	Diameter: 1, 3 or 5 mm
Material:	Gold plated metal
Patented:	Yes
CE marked:	According to medical device IIA
Warranty:	1 year (2 years after Product registration)
Gas cartridge:	16 or 25 gram
	Nitrous Oxide Gas (N₂O)
	Medical sterile
	Built-in filter (5 µm)

Features

Membrane keypad with great water-proof performance.
One-touch operation.
7 leads simultaneous acquisition.
Built-in single-channel thermal printer.
Large internal memory & USB flash disk support.
Built-in data management.

Features of Kingst Handheld Capnograph and Oximeter CapnoVet3

Designed for pets - The device is optimized for pets of different species and sizes, ensuring measurement accuracy and comfort.
High-precision sensor - Equipped with advanced sensor technology to provide fast and reliable carbon dioxide monitoring.
Easy to operate - The design is simple and easy for veterinarians and pet caregivers to use, reducing learning costs.
Strong durability - The equipment is sturdy and durable and can be used for a long time in a variety of environments to meet daily and emergency monitoring needs.

Real-time data - Provide real-time respiratory waveform and carbon dioxide concentration data to help make timely diagnosis and treatment decisions.

Specifications of Kingst Handle Capnograph and Oximeter CapnoVet3

AC Input	100V - 240V, 50Hz/60 Hz to 5VDC Adapter with 5V type-CUSB adapter Cable. Optional Vehicle 12V to 5V Type-CUSB Charger Lead.
Battery	Built-in rechargeable lithium battery pack (3.7V, 3500mAH)
Temperature	5 to +40 ℃
Humidity	30-75%
Atmospheric pressure	86~106kpa
EtCO2/FiCO2 Range	0~150mmHg
Accuracy	±2mmHg for CO2 range 0 - 40mmHg； ±5% for CO2 range from 41 - 70mmHg; ±8% for CO2 range from 71 - 100mmHg; Over 100mmHg ±10%
Respiration Rate Range	3~150 breaths/minute
Accuracy	±1% of reading or ±1 rpm whichever is greater
Size	72 x 155 x 40mm (W x H x D)
Weight	Weight on Airway ETT/LMA<25g. Monitor 380g
Display size	2.8 inches

Application Scenarios of Kingst Handheld Capnograph and Oximeter CapnoVet3

Anesthesia Monitoring During Surgery: During pet surgeries, precise management of anesthesia is crucial for ensuring the success of the procedure and the safety of the pet. An end-tidal CO2 monitor can provide real-time monitoring of the pet's CO2 levels, helping veterinarians assess ventilation status and the effectiveness of anesthesia. If CO2 levels rise or fall abnormally, veterinarians can promptly adjust the anesthesia dosage to keep the pet in a safe anesthetic state.
Postoperative Recovery Monitoring: The postoperative recovery period is critical for pets after anesthesia. An end-tidal CO2 monitor can continuously track the pet's respiratory status, offering real-time respiratory waveforms and CO2 level data. By monitoring respiratory function, veterinarians can quickly identify and address potential complications such as respiratory depression or hypoventilation, enhancing the safety of postoperative recovery.
Management of Chronic Respiratory Diseases: For pets with chronic respiratory diseases like asthma or chronic bronchitis, an end-tidal CO2 monitor helps veterinarians and pet owners continuously monitor respiratory function. Regular recording and analysis of CO2 levels and respiratory waveforms allow veterinarians to better assess disease progression and treatment efficacy, and adjust treatment plans promptly.
Emergency Care and Intensive Monitoring: In emergency and intensive care settings, a pet-specific end-tidal CO2 monitor provides quick respiratory function information. For emergencies such as respiratory failure or choking, the monitor helps veterinarians rapidly assess the pet's respiratory condition and take effective emergency measures, potentially saving the pet's life.
Routine Checkups and Health Monitoring: During routine checkups, an end-tidal CO2 monitor can be used to assess the overall health status of pets. By measuring and recording respiratory data, veterinarians can detect potential respiratory issues early and recommend further examination or treatment
Rehabilitation Training and Exercise Evaluation: For pets undergoing rehabilitation training or exercise evaluation, an end-tidal CO2 monitor helps assess changes in respiratory function during activity and recovery. By monitoring CO2 levels and respiratory waveforms, veterinarians and pet rehabilitation specialists can develop personalized rehabilitation plans, ensuring that pets train within safe limits.

The KSY-5 Vet is a versatile veterinary oxygen concentrator designed to assist animal patients with respiratory needs. Combining oxygen generation, aerosol atomization, and air purification in one unit, it supports comprehensive care. Equipped with a large touchscreen, remote control, and voice prompts, it simplifies operation. Its integrated timing oxygen therapy and automatic shutoff ensure safety and precision. Lightweight and portable, it’s ideal for veterinary clinics, mobile units, and home care. Ultrafine aerosol particles (≈ 3.7 µm) deepen lung delivery, enhancing treatment efficacy.

Features

1. Large LCD touch screen, easy Operation

2. Remote Control

3 . Voice broadcast

4 . Alarm function

5. Timing oxygen therapy, automatic shutdown

6. Light in weight, portable, and easy to move

7. Ultrafine atomized equivalent particle: 3.7 μm ± 25% reaching deep into the lungs

Specifications

Parameter	Detail / Value
Model	KSY-5 Vet
Functions	Oxygen concentrator + atomizer + air purifier
Display	Large touch LCD
Control	Remote control
Alerts	Voice broadcast and alarm system
Therapy Control	Timing oxygen therapy with automatic shutdown
Portability	Lightweight, easy to move
Atomization	Ultrafine aerosol, ~3.7 µm ± 25%
Application	Veterinary respiratory support

CryoIQ device is perfectly fitted for treatment of warts and other common skin lesions. Its unique construction with a built-in non-return valve prevents gas leakage thus giving a maximum use of the gas content. Areas of application are general practice, dermatology, pediatrics, podiatry, aesthetics, veterinary and gynecology/urology. The device uses a state-of-the-art cooling technology that does not require handling of potentially dangerous gases and liquids meaning that the gas cartridge is safely replaced when empty. The device features an ergonomic design where the cooling medium is evenly, accurately and economically distributed by depressing the metering lever. Features:

Simple pencil type grip for an easy and very accurate application
Freezing temperature
- Liquid spray freezing, -89°C / -128°F
Level of cold generated is adjusted by the rate at which the metering lever is depressed
CE marked according to Medical Device IIa

Technical Specifications: Name: CryoIQ® DERM plus Liquid Order.no: CIQ-DP-L Delivered in: Plastic case Included in delivery: 1 gas cartridge (16 gram) with valve Weight: 82 gram (including 16 gram cartridge) Dimensions: Diameter: 22 mm / Length: 120 mm Freezing temperature: -89°C / -128°F Material: Gold plated metal Patented: Yes CE marked: According to medical device IIA Warranty: 1 years (2 years after Product registration) Gas cartridge: 16 or 25 gram Nitrous Oxide Gas (N2O) Medical sterile Built-in filter (5 µm)
