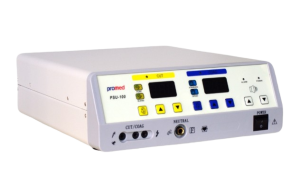

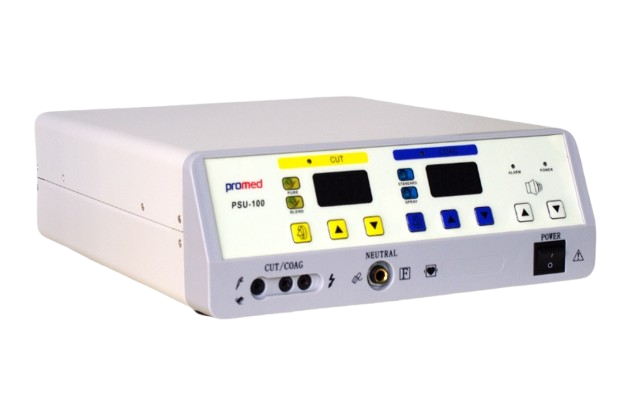

PSU-100 Electrosurgical Unit

The PSU-100 Electrosurgical Unit is designed for safe and reliable surgical performance, supporting monopolar cut, blend, coagulation, and bipolar coagulation modes. Operating at 500 kHz, it provides a stable high-frequency output with adjustable power up to 100W. Its return electrode monitoring (REM) system enhances patient safety by preventing burns, while automatic power termination prevents misoperation. Compact and lightweight, the PSU-100 ensures precision, minimal tissue sticking, and reduced carbonization, making it ideal for general surgery, gynecology, and other clinical applications.

Features

• Excellent monopolar cautery machine with smart & light design.
• Max 4 work modes: Pure/Blend, Standard/Spray.
• Return electrode monitoring system to avoid any burns and damage to the patient.
• Clear working modes indication and easy power control.
• Minimal sticking & carbonization, reducing the surgery damage.
• Auto-terminate the power output after 5s to avoid misoperation.
• Different & Adjustable operation sounds in case of misoperation.
• High-frequency 500 kHz stable output
• Monopolar and bipolar modes for diverse surgical needs
• Power adjustment in fine 5W increments

Technical Specifications

Features

Features

• Designed with the surgeon in mind
• Slim and lightweight, tapered ergonomic design, streamlined design.
• Slip-proof handling and water resistant Rocker or Push-Button Switch
• Switch and buttons designed for smooth activation
• Equipped with a range of monopolar cutting and coagulation electrodes to satisfy all users requirements.
• With hexagonal shape to protect against inadvertent twisting, the electrodes can be locked safely into place and are easily exchanged and replaced.

Features

1. Intended for ablation,tissue modification, and coagulation of soft tissue in arthroscopic procedures such as hip,  shoulder, ankle, wrist, elbow, and knee. 2. The Extending shaft enables good visualization and easy insertion through subcutaneous tissue,and  well insulated coating guarantee its safety and reliability. 3.Irrigation/suction solution is available with a cannula and an adjustable flow control valve. 4. Tips in different shapes and angles fit in particular arthroscopic procedures. 5. Compatible with most electrosurgical generators.

Use Indication

This device should never be used when:

• There is visible evidence of damage to the exterior of the device such as cracked or damaged plastic or connector damage.
• These devices fail the inspection described herein.
• In the presence of flammable gases, flammable prep solutions or drapes. Oxidizing. Gases such as Nitrous Oxide (N2O), or in oxygen-riched environments.
• Do not use monopolar electrosurgery on small appendages, as in circumcision or finger surgery.

Disposable ECG Electrodes are pre-gelled, non-sterile, single use disposable electrocardiographic electrodes which are intended for use as an accessory to ECG equipment for ECG monitoring , diagnostic procedures and can used for stress test & holter.

1. Clean the skin area where the electrode will stick on. Make sure the skin area for sticking is intact (uninjured). 2. Connect the leadwire with the electrode. Make sure it is fastened and in good contact. 3. Tear off the release film from the bottom (the part away from metal stud) of electrode. 4. Press lightly when stick the electrodes to the skin and make sure the conductive gel and adhesive backing stick on the skin tightly. Caution

• Don’t peel the release film from the metal stud of the electrode. It may break the structure and affect the function of electrodes.
• ECG electrodes should only be used by or in consultation with a healthcare provider familiar with their proper placement and use.
• ECG electrodes may damage the skin if removed carelessly.
• ECG electrodes should be applied only to intact, clean skin (e.g., not over open wounds, lesions, or infected, or inflamed areas).
• Do not reuse this device. It may cause infection and affect the performance of the reuse of this device.

Features:

1. Material: Made from medical-grade silicone, which is durable and flexible.
2. Reusable: Can be used multiple times after proper sterilization, making it cost-effective.
3. Adhesive Backing: Comes with an adhesive side to securely attach to the patient's skin.
4. Large Surface Area: Designed to disperse electrical current over a wide area to minimize the risk of burns.
5. Connectors: Typically equipped with connectors like REM or banana connectors for easy attachment to electrosurgical units.

Uses:

1. Electrosurgical Procedures: Used in various surgical procedures, including cutting, coagulating, and desiccating tissue.
2. Patient Safety: Ensures safe operation of electrosurgical units by dispersing the electrical current away from the patient's body.
3. Versatility: Suitable for different types of surgeries, from open surgeries to laparoscopic procedures.
