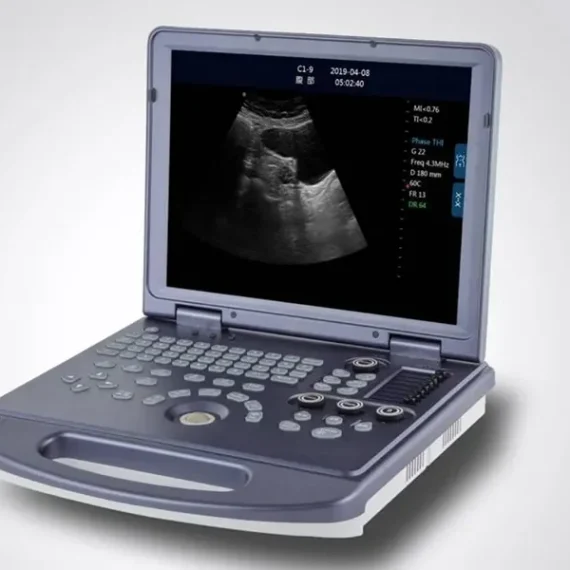

RC-BW360 Laptop B/W Ultrasound Scanner

Specifications

• 128ele Probe: Delivers high-resolution imaging.
• PC Platform (Windows System): Ensures smooth operation and user-friendly interface.
• PW Function: Enhances Doppler imaging capabilities.
• Multi-Language Support: Adaptable to various clinical settings.
• 15-inch LED Color Display: Provides sharp and clear images.
• Imaging Modes: Supports B/2B/4B/M/B&M/PW modes for comprehensive diagnostics.
• Multi-Frequency Convex Probe: Offers versatile scanning options.
• Battery Life: 2-3 working hours for extended portability.
• Connectivity: 1 USB port and 1 probe connector (expandable to two probes via docking station).
• User Manual & Aluminum Case Packaging: Ensures safe storage and easy transport.

Click Here To Download Catalogue

• A safe and effective method of surgical abortions for up to 12 weeks of pregnancy
• Quiet procedure meets clients' needs for privacy
• Enables raster recovery limes compared to operating room procedures
• Can be performed without the need for a specialist set up or operating theatre
• 98% effective with low complication rates, recommended by the WHO
• Safe alternative to sharp curettage
• Reduces procedural costs by performing procedures in an outpatient setting
• No need for general anesthesia
• Single-valve Syringe sizes: 24.5cm length, 3cm diameter, 60ml volume, 375 mm Hg vacuum
• Easy to operate
• Cannula is named by its diameter (e.g. 4mm cannula's diameter is 4nun).
• Current cannula sizes are 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11 mm and 12mm.
• Length: 23.0cm length

• Ventilation mode: VCV, PCV, PSV, SIMV(VCV)+PSV, SIMV(PCV)+PSV, MMV, CPAP, Backup apnea.

• Maximum safety pressure of air circuit: no more than 6kpa.
• Inspiratory oxygen concentration: 21-100%.

Ventilation Performance:

• Respiratory rate (f): 4-99 times / min,
• Inspiratory time (Ti): 0.2-6 s,
• Breath holding time (Tp): 0-2s,
• Triggering pressure (Pt): inspiratory triggering pressure is - 2kpa-0kpa,
• Tidal volume (Vt): 0-2000ml;
• Maximum minute ventilation volume: not less than 18 L / min.
• PSV：0～5 kPa,
• Peep Pressure: 0-3kpa,
• Inspiratory flow rate: 0-80 L / min.
• SIMV frequency: 6-60 times / min,
• Inspiratory pressure: 0-6kpa,

Alarm Performance:

• Pressure High Limit (Ph) alarm: 2 ~ 6kpa, audible and visual alarm.
• Pressure Low Limit (Pl) alarm: 0～2KPa, audible and visual alarm.
• Minute ventilation High Limit (Mvh) alarm: audible and visual alarm when ventilation exceeds the set value.
• Minute ventilator Low limit (Mvl) alarm: audible and visual alarm when ventilation is lower than the set value.
• Power off alarm: Power off alarm immediately, and the alarm duration shall not be less than 120s.
• Mute: no more than 2 minutes.

Monitoring Performance:

• 12.1 inch color LCD
• Tidal volume (VT): 0 ～ 2000ml
• Measured total frequency (Ftot), Spont. frequency (Fspont)
• Minute ventilation (Mv).
• I: E ratio.
• Airway pressure (PAW).
• Peak pressure (Ppeak)
• Peep pressure: 0.1 ~ 2KPa
• Pressure-Time and Flow-Time waveform

• Is a new device that integrates a beam-splitter with an HD 3D video system that expands the borders of surgical visualization as it allows the surgeon to share the stereoscopic images that he sees through the binocular; and in high definition.
• It is an ideal method for education since 3D visualization improves understanding, motivation and retention of knowledge.
• Compatible with Microscopes and Colposcopes of multiple brands.

• This beam splitter integrates a full HD video camera in an ergonomic and compact way.
• Both devices are installed between the optical head and the binocular. This configuration results in great balance since it avoids the use of photographic and/or video equipment located on the side of the optical head which usually alter the stability of the movements of it.
• Both products are complemented by sophisticated image capture systems from the ECLERIS endoDIGI family.

• Binocular - 45º Inclined (straight optional)
• Objective Lens - Standard 300 mm included. Optional: 200 / 250 mm.
• Magnifications - Manual changer 5 positions: Factor 4 / 6 / 10 / 16 / 25 X
• Fine Focus - Manual integrated in focal lens.
• Eyepieces - 10 X Wide angle. Dioptric setting: + / - 5.
• Field of View (10 X) - Ø 24 mm / 0,95“ (for f: 200 mm) Ø 31 mm / 1,22” (for f: 250 mm). Ø 36 mm / 1,42” (for f: 300 mm) Ø 50 mm
• Interpupilar Distance - 2,16”- 2,95”. 55 - 75 mm
• Filter – Green

• Type of Illumination - Coaxial Illumination through 7 mm fiber optic light guide cable
• Light Source – LED (80 W 50.000 hours life)
• Illuminated Field - Ø 70 mm / 2,75” (for f: 200 mm) Ø 90 mm / 3,54” (for f: 250 mm). Ø 107 mm / 4,2” (for f: 300 mm) Ø 145 mm
• Illumination Control - Electronic dimmer with continuous adjustment. Constant light color
• Power Supply - 100 - 240 VAC, 50 / 60 Hz

• Video Camera - Video camera connection input and video output integrated into light source

• Type - Stand floor unit, 5 wheels.
• Rotation - 360^◦
• Height Adjustment - 97,5 / 120 cm, 38 / 47
• Weight - 13,5 kg / 30 lb
