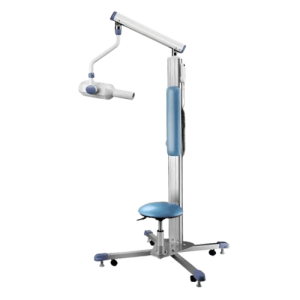

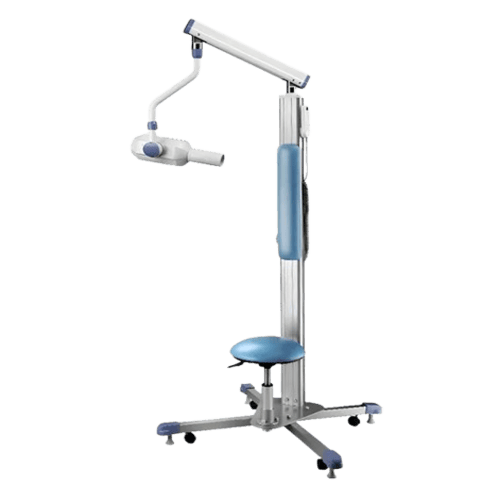

RC-C23 Mobile Dental X-Ray Unit with Chair

Brands: Shoimage

~~$0.00~~

The mobile dental X-ray unit is designed for convenient and precise dental imaging, offering seamless mobility and easy operation.

Shipped From China

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Shoimage

Description
Reviews (0)

Description

The mobile dental X-ray unit is designed for convenient and precise dental imaging, offering seamless mobility and easy operation. Equipped with an integrated chair, it provides optimal positioning for patient comfort and stability during imaging procedures. Its compact and ergonomic design makes it an excellent choice for dental clinics looking for flexibility and efficiency.

Specifications

Focal Spot Size: 0.8 mm
Anode Angle: 19 degrees
Connection: Coaxial plug, also capable of horizontal rotation
Tube Voltage: 70 kV
Anode Current: 7 mA

Duty Cycle: 1/60
Inherent Filtration: ≥2.1 mm AL
Half-Value Layer: 1.6 mm AL at 70 kVp
Leakage Radiation: Less than 0.007 mGy/h at 1 meter distance

Reviews

There are no reviews yet.

Be the first to review “RC-C23 Mobile Dental X-Ray Unit with Chair”

Quick Comparison

RC-C23 Mobile Dental X-Ray Unit with Chair remove DrGem Diamond All-In-One Digital X-ray Machine remove Anke Anatom 32 Fit Multi-Slice Spiral CT Scan remove SIGNERS SUPiA X-ray Digitizer ( CR Scanner) remove Single X-Ray Viewing Box remove Sonoscape S8 Exp Portable Ultrasound remove

Name RC-C23 Mobile Dental X-Ray Unit with Chair remove DrGem Diamond All-In-One Digital X-ray Machine remove Anke Anatom 32 Fit Multi-Slice Spiral CT Scan remove SIGNERS SUPiA X-ray Digitizer ( CR Scanner) remove Single X-Ray Viewing Box remove Sonoscape S8 Exp Portable Ultrasound remove


SKU SF1033560074-3 SF1033560092-1 SF1033560050-01 SF1033560084-203 SF1033560012-15

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

The mobile dental X-ray unit is designed for convenient and precise dental imaging, offering seamless mobility and easy operation. Shipped From China

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad DrGem Diamond All-In-One Digital X-ray Machine is a fully automatic digital radiography system providing state-of-the-art image quality, image processing and user interface. With a wide selection of anatomical studies on the imaging software, DIAMOND automatically sets up the x-ray generator’s preprogrammed exposure technique settings, motorized radiographic stand positioning, x-ray collimation and post-image processing for the selected study. Specifically designed to increase workflow, this fully digital system offers convenient auto-positioning and advanced image processing to achieve big performance with little effort. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad This Machine gives a possibility to perform computed tomography without any problems and on high quality level. This device is used to conduct exams of internal organs and their functioning. With its help, a physician has a possibility to assess the condition of the human body as a whole.

Delivery & Availability:

Typically 90 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad SUPiA made by Signers offers such a better clinic environment with no chemicals, ideal space, high-resolution image quality, and affordability.

Delivery & Availability:

Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In stock

Length: 355 mm
Height: 560 mm
Diameter: 150 mm
Power: 30 w
Scattering diffusion: Greater than 0.9

Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad With ultra-modern innovative design and the clinically-proven technologies, S8 Exp is portable ultrasound scanner well equipped as a low-physical-effort and enhanced-image-quality ultrasound scanner, which not only provides optimized solutions for versatile applications, but does help to improve the user-experience for both routine and non-traditional challenges. Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

Specifications

Focal Spot Size: 0.8 mm
Anode Angle: 19 degrees
Connection: Coaxial plug, also capable of horizontal rotation
Tube Voltage: 70 kV
Anode Current: 7 mA

Duty Cycle: 1/60
Inherent Filtration: ≥2.1 mm AL
Half-Value Layer: 1.6 mm AL at 70 kVp
Leakage Radiation: Less than 0.007 mGy/h at 1 meter distance

DrGem Diamond All-In-One Digital X-ray Machine is a fully automatic digital radiography system providing state-of-the-art image quality, image processing and user interface. With a wide selection of anatomical studies on the imaging software, DIAMOND automatically sets up the x-ray generator’s pre-programmed exposure technique settings, motorized radiographic stand positioning, x-ray collimation and post-image processing for the selected study. Specifically designed to increase workflow, this fully digital system offers convenient auto-positioning and advanced image processing to achieve big performance with little effort. Features of DrGem Diamond All-In-One Digital X-ray Machine: Outstanding Image Quality - Digital radiography via at panel detector improves your workflow, exam speed and comfort with efficiency. Digital at panel detector with Csl screen provides excellent spatial resolution, MTF, DQE and stability based on ne pixel pitch. A 3-field ion-chamber is provided for AEC function. Automatic Collimation – Automatic x-ray eld size control of the motorized collimator corresponds to dierent SIDs. Includes user adjustable lamp timer with on/oswitch. Automatic Positioning –

DIAMOND is a fully-automatic diagnostic system with motorized movement and pre-programmed data for automatic positioning that can be easily reprogrammed by the operator.
Seven safety sensors have been integrated into the DIAMOND system to protect patients from accidental collision.

Automatic Stitching – DIAMOND 5A provides outstanding automatic stitching function via source tilting for creating one long composite image. DIAMOND Positioning Guide – The U-arm rotation ranges from +120 ° to +30 ° with SID movements from 100cm to 180cm. The mobile patient table can also be used to take patient images in a variety of positions for a total of over fifteen different positions (Chest PA, Skull Towne’s, Abdomen Supine, Hand AP, C-T Spine Swimmers and Abdomen Decubitus etc.)

Included – Software, HP Laptop Computer

- CPU≥3.2GHz - Memory capacity：≥4GB - Hard drive capacity ：≥500 GB - Resolution: 1280 x 1024 - Display size： 21 inch color LCD screen - 64 bit Windows 10 operation system - Core: i5 Technical Specification:

Power Rating - 52KW
mA - 10 to 640mA
mAs - 0.1 to 500mAs
kV - 40 to 150kV, 1kV Step
Generator - GXR-52
Rotor - Dual Speed (High and Low)
Input Power - 400/480VAC±10%, 3Ø
Line Frequency - 50/60Hz
X-ray tube – DXT-12M 0.6/1.2mm, 300kHU

Click Here To Download Catalogue

This Machine gives a possibility to perform computed tomography without any problems and on high quality level. This device is used to conduct exams of internal organs and their functioning. With its help, a physician has a possibility to assess the condition of the human body as a whole. Features:

It is easy to use;
Convenience;
Multi functionality;
Obtained images are of high definition;
High-definition 3D images of the area under study;
The procedure is pain-free;
The data is processed fast;
The image can be stored in the computer memory;
The diagnostics does not take a lot of time;
Acceptable radiation dose.

Technical Specifications:

No.	Technical Features	Descriptions
1	Gantry
1.01	Gantry type	Low voltage slip-ring
1.02	Gantry driven type	Strap-driven
1.03	Patient opening	70cm
1.04	Gantry tilt mode	Digital gantry tilt
1.05	Digital tilt capability	±50°
1.06	Detector type	OptiWave rare-earth ceramic detector
1.07	Numbers of detector rows	16
1.08	Width of Z-axle detector	20mm
1.09	Detector columns of channels per row	848
1.10	Numbers of detector columns	13568
1.11	Data-transfer type	RF, optical fiber communication
1.12	Distance of focus-ISO-center	53cm
1.13	Distance of focus-detector	94cm
1.14	3D laser orientation	Provided
1.15	13" integrated display panel	Provided
1.16	Adose automatic exposure control (mA Modulation)	Provided
1.17	Auto-voice manager	Breath Graphical Display Hold Message (Record/Playback) Breath Message (Record/Playback)
1.18	AccuSaving energy conservation management	Provided
2	HVPS and X-ray tube
2.01	Maximum continuous output of HVgenerator	42kW
2.02	Tube kV selections	70kV, 80kV, 100 kV, 120 kV, 140 kV
2.03	Tube mA range	10~350mA
2.04	Tube anode heat capacity	3.5MHU
2.05	Max. anode cooling rate	735kHU/min
2.06	Type of cooling	Oil cooling + Air cooling
2.07	Tube focus	Large: 1.2mm×1.4mm Small: 0.7mm×0.8mm
2.08	Collimator width selection	4-level election
2.09	Focus spot tracking technology	Provided
3	Patient table
3.01	Maximum horizontal-movable range	1850mm
3.02	Table horizontal-scannablerange	1800mm
3.03	Table horizontal-position repeatability	±0.25mm
3.04	Minimum height above floor	430mm
3.05	Maximum vertical-movable range	500mm
3.06	Maximum speed of vertical movement	35mm
3.07	Maximum speed of horizontal movement	150mm/s
3.08	Maximum patient weight	205kg
3.09	Foot pedal of patient table control	Provided
4	Computer
4.01	CPU	3.5GHz
4.02	Memory	32GB
4.03	Storage of hard-disk	1TB×2
4.04	Monitor	24’’ LCD Monitor
4.05	Resolution of monitor	1920×1200
4.06	Image-data external storage type	CD/DVD/USB
4.07	Time of image reconstruction (512×512)	33.3ms/image
4.08	Speed of image reconstruction (512×12)	30fps
4.09	DICOM 3.0 interface	Provided
4.10	Printer DICOM 3.0 interface	Provided
4.11	Auto filming	Provided
4.12	Worklist function	Provided
5	Scan parameters
5.01	Shortest 360 degree rotation time	0.75s
5.02	Allowed rotation times	0.75s, 1.0s, 1.5s, 2.0s, 3.0s, 4.0s
5.03	Maximum slice numbers per rotation	32
5.04	Minimum slice thickness of scan	1.25mm
5.05	Minimum slice thickness of reconstruction	0.625mm
5.06	Maximum slice thickness of scan	20mm
5.07	Nominal reconstruction slice thickness	0.625mm, 1.25mm, 2.5mm, 5.0mm, 7.5mm, 10mm, 20mm
5.08	Speed of image reconstruction (512×512)	30 frames/s
5.09	Scan FOV	50cm
5.10	Image reconstruction matrix	512×512, 1024×1024 (Optional)
5.11	Image reconstruction matrix	512×512, 1024×1024 (Optional)
5.12	Image display matrix	512×512, 1024×1024 (Optional)
5.13	Maximum continuous scan duration	120s
5.14	Maximum continuous scan length	180cm
5.15	Direction of TOPO	Front-back, Left-right
5.16	Max. length of TOPO	180cm
5.17	Range of pitch	0.5~1.5
5.18	Scan mode	Scout scan Axial scan Helical scan Cine scan
6	Image Quality
6.01	High contrast resolution	21lp/cm@0%MTF
6.02	Low contrast resolution	2.0mm@0.30%
6.03	Isotropic imaging resolution	0.24mm
6.04	Range of CT numbers	-32767~32768
6.05	Image noise	≤0.29@28mGy
7	Advanced application
7.01	Multi-Planar Reconstruction (MPR)	Provided
7.02	Curve Multi-Planar Reconstruction (CPR)	Provided
7.03	Surface Shaded Display (SSD)	Provided
7.04	Volume Rendering (VR)	Provided
7.05	Maximum Intensity Projection (MIP)	Provided
7.06	Minimum Intensity Projection (MinIP)	Provided
7.07	Virtual Endoscopy (VE)	Provided
7.08	CT angiography (CTA)	Provided
7.09	Tissue segmentation	Provided
7.10	One click bone remove	Provided
7.11	One click patient table remove	Provided
7.12	Bolus-tracking Technology	Provided
7.13	Spiral auto start	Provided
7.14	Cine display	Provided
7.15	AbastTM bone artifact suppression technology	Provided
7.16	AmastTM metal artifact suppression technology	Provided
7.17	Admir3D all-domain iterative reconstruction	Provided
7.18	Low-dose pediatric scan technology	Provided
7.19	Low-dose lung scan technology	Provided
7.20	AccuHead grey-white matter enhanced technology	Provided
7.21	AccuOrgan lung high resolution scan technology	Provided
7.22	AccuOrgan inner-ear high resolution scan technology	Provided
7.23	AccuOrgan body high resolution scan technology	Provided
7.24	AccuOrgan bone high resolution scan technology	Provided
7.25	AccuMatter dual-energy with Admir3D for new application	Provided

Click Here To Download Catalogue

SUPiA X-ray Digitizer made by Signers offers such a better clinic environment with no chemicals, ideal space, high-resolution image quality, and affordability FEATURE Rigid Type • No damage or scratch on image plates during scanning & erasing • Scanning & Erasing without a roller • No cut-off image during winter and cold period Durability • Extremely simple structure design • Strong aluminum base plate • Flip covers preventing dust from inside scanner Barcode System • Automatically recognising cassette sizes(14x17", 10x12", 18x24cm) by barcode reader Compact & lightweight design

Very small and compatible CR on desktop (only 63.5cm)
Only 21.5kg (47.4lbs)

Cassette Strong structure • Strong enough against external impact • Totally metal frame • Enduring under 150kg on cassette Featherlight • 14x17" : 2.05kg 10x12" : 0.99kg 18x24cm : 0.75kg Dust free & Easy cleaning • Easy to clean up dust on IPs • Prevent dust from outside User friendly design • Various colors 14x17"(Green), 10x12"(Blue), 18x24cm(Pink)) • Barcode label TECHNICAL SPECIFICATION

SUPiA Specifications
Cassette	SUPiA CR Cassette 14x17 (inch) SUPiA CR Cassette 10x12 (inch) SUPiA CR Cassette 18x24 (cm)
Throughput	Up to 94 IPs/hour (14x17"/160μm)
Slots	Single Cassette feed
Dimensions (W x D x H)	436 x 636 x 196mm
Weight	21.5kg (47.4lbs)
Grayscale Resolution	Acquisition : 16 bits per pixel Display : 12 bits per pixel
Power Supply Conditions	Single Phase 50 ~ 60Hz AC 90 ~ 264V
Network	100 MBit
PC Connection	USB 2.0
Computer Min. requirements	OS : Win 7 or 10 CPU : Intel i5 RAM : 4GB Graphic Card : Intel HD 2500 HDD : 500GB Monitor : FHD 1920 x 1080
Operating conditions	Temperature : 10 ~ 30˚C Humidity : 15 ~ 85% RH

Click Here To Download Catalogue

Length: 355 mm
Height: 560 mm
Diameter: 150 mm
Power: 30 w
Scattering diffusion: Greater than 0.9

Sonoscape S8 Exp Portable Ultrasound scanner

DETAILS Agile and Versatile With ultra-modern innovative design and the clinically-proven technologies, S8 Exp Portable Ultrasound scanner is well equipped as a low-physical-effort and enhanced-image-quality ultrasound scanner, which not only provides optimized solutions for versatile applications but does help to improve the user experience for both routine and non-traditional challenges. Working with S8 Exp, it will trigger your unlimited reverie and endow you with endless charm. Carrying forward the classical design of SonoScape's portable ultrasound products, S8 Exp successfully combines the best ergonomics, attractive design and ease of use. This charismatic identity is also enhanced by a sophisticated color palette—with sedate grey as its interior paint color and pearl white as exterior cover, S8 Exp reveals a style of aristocrat and strong character among SonoScape's ultrasound systems. Workflow The S8 Exp is a portable ultrasound scanner that adapts to your workflow, whether you are in the consulting room, at the bedside, or at a remote location. With easy-to-use new platform designed for sonographers' needs and full connection interfaces for easy connectivity and data sharing, S8 Exp leads to improved user comfort and clinical outcome as well as patient throughput and working efficiency. Powerful Platform Embedded with SonoScape's core imaging technologies such as μ-scan, PHI and Spatial Compound, S8 Exp boasts exceptional 2D image, sensitive spectral, Color and Power Doppler, displaying well-defined anatomy and pathology and facilitating a highly optimized diagnostic user environment for conclusive diagnoses. Besides, S8 Exp offers a comprehensive selection of electronic probes to maximally extend its capabilities to meet a wide range of applications including the abdomen, pediatric, OB/GYN, cardiovascular, musculoskeletal, etc. The advanced probe technologies also effectively enhance the image quality and confidence in reaching clinical diagnoses even in difficult patients.
