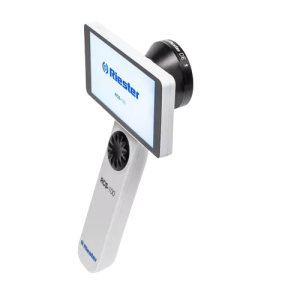

RCS-100 Digital Dermatoscope
$0.00
Shipped From Abroad
RCS-100 medical camera with dermatoscope lens can substitute or replace the traditional dermatoscopy devices, providing the additional benefit of capturing and sharing the digital photograph or video of the epidermis and dermis of the skin.7
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
The RCS-100 Digital Dermatoscope-lens by Riester upgrades the RCS-100 camera system for dermatological use. It enables non-immersive dermoscopic imaging, captures high-quality digital photographs and videos of the epidermis and dermis, and provides a movable digital ruler for accurate lesion measurement. riester.de+1 With a 5″ full-HD touch display and ergonomic one-hand operation, the system supports scalable magnification (2×–8×), enabling detailed clinical documentation, diagnosis, and teledermatology.
RCS-100 with dermatoscope lens
Utilising RCS-100 with a dermatoscope lens can support accurate identification and measurement of skin lesions with a digital movable ruler without the need for immersion.
Key Features
-
Non-immersion imaging: No need for a contact fluid.
-
Digital moveable ruler: Measures lesion size directly on-screen.
-
LED lighting: Natural-light LED with 4000 K color temperature for accurate color reproduction.
-
Magnification: 2.5× optical + up to 4× digital for up to 8× display zoom.
-
High-resolution imaging: 8 MP CMOS sensor captures fine skin detail.
-
Ergonomic design: Rotary wheel enables one-handed focus and light control.
-
Live video & image sharing: Via UVC output or USB for telemedicine.
-
Portable & durable: 5″ screen, 3.6 V lithium-ion battery with up to 3.5 hours of video.
-
Multilingual interface: Supports several languages for global use.
Specifications
| RCS-100 Dermatoscope Lens |
|---|
| Dimensions in mm / in | 62.1 mm x 62.1 mm x 36.0 mm 24.4 in x 24.4 in x 1.42 in |
| Weight | 108.5 g (3.83 oz) |
| F/# (focal length/width) | 2.2 |
| Object distance | 0 mm |
| Field of view | Ø 30 mm |
| Photography source | Natural light LED |
| LED colour temperance | 4000 K |
| Optical magnification | 2.5x |
| Digital magnification | 4x |
| RCS-100 |
|---|
| Size | 225 mm x 135 mm x 45 mm |
| Weight | 292.0 g |
| Focus | Automatic / Manual |
| Image format | JPEG |
| Video format | MP4 |
| Adapt input | 100 – 240 VAC, 50/60 Hz, 0.3 A |
| Adapt outnput | 5 VDC, 2 A |
| USB | OTG and type-C USB |
| Extend memory (OPT) | 16 GB Wi-Fi SD card |
| RAM | 2 GB LPDDR3 |
| ROM | 16 GB |
| CMOS sensor resolution | Total number of pixels: 3296 (H) x 2512 (V) approx. 8.28 M pixels Number of effective pixels: 3296 (H) x 2480 (V) approx. 8.17 M pixels Number of active pixels: 3280 (H) x 2464 (V) approx. 8.08 M pixels |
| Battery | 3.6 V, 2600 mAh, Li-ion battery (type 18650) Video 3.5 hours (fully charged battery at 25 °C ambient temperature) |
