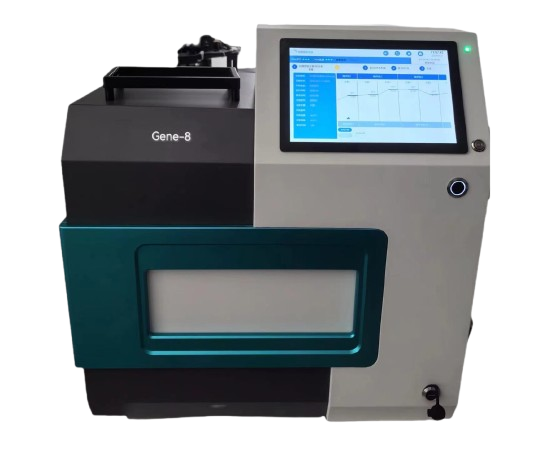

Respiration Infection Gene Test POCT System

A turnkey molecular diagnostic instrument for point‑of‑care settings, designed around an enclosed cartridge system. Users load the sample once and the device autonomously performs nucleic acid extraction via magnetic beads, multiplex real‑time PCR, and result reporting-without contamination or manual intervention. The built‑in touchscreen supports easy operation, data connectivity, and clear graphical outputs. Supports batch testing of eight samples, detecting up to 30 pathogens, including key viruses and bacteria, with rapid cycles and high precision.

Key Features

• 30-pathogen panel: Detects SARS-CoV-2, Influenza A/B, RSV A/B, parainfluenza (1–3), metapneumovirus, bocavirus, adenovirus B/C/E, Mycoplasma pneumoniae, coronavirus OC43/229E, and more

• Fast turnaround: Processes 8 samples per batch; one run completes in ≤ 45 min, full 30-target panel in ~120 min

• High extraction efficiency: Magnetic-bead method yields up to 99% nucleic acid recovery

• Fully enclosed cartridge: Prevents contamination; supports closed, automated sample-to-result workflow

• Integrated platform: Combines nucleic acid extraction, RT‑PCR amplification, and analysis—no need for external lab equipment.

• High-speed thermal control: Heats/cools at up to 12 °C/s; temperature accuracy ±0.1 °C, uniformity ≤0.3 °C.

• Multiplex fluorescence: 4 standard channels (FAM/HEX/ROX/CY5), expandable to 6 for additional flexibility.

• Low noise & power: Runs quietly at 50 dB, draws 300 VA, supports broad voltage (AC 100–240 V)

Instrument Characteristics

• Sample throughput: 8 simultaneously; single-tube detection of up to 30 pathogens halomedicals.com

• Sample compatibility: Swabs, blood, serum, plasma, urine, tissues

• Nucleic acid extraction: Magnetic‑bead, fully enclosed microfluidic channels; 100-400 µL sample volume

• Temperature control: Uniform heating/cooling at 9-12 °C/s, control accuracy ±0.1 °C; duration accuracy ±3%

• Fluorescence detection: 4‑channel (expandable to 6) for multiplex RT‑PCR

• User experience: Touchscreen interface, graphical results, automated report generation, multiple data‑export options.

• Contamination control: Closed cartridge design with microfluidic pollution barrier

• Flexibility: Supports nesting protocols, single or multiplex testing; compatible with third-party reagents

• Automation: Minimal manual steps-just sample load; device handles rest

• Cost efficiency: Positioned at a lower price point compared to comparable international systems

Physical Specifications

• Dimensions: 450 × 260 × 400 mm

• Weight: 25 kg

• Power supply: AC 100–240 V, 50/60 Hz, 3 A, 300 VA

• Noise level: 50 dB during operation
