ri-integral Fibre Optic (F.O.) Laryngoscopes

$0.00

Shipped From Abroad

Riester’s fibre-optic Laryngoscopes offer a high-quality light source, which helps improve the visualisation of the larynx during intubation. This, coupled with the rechargeable battery built into the handle, gives the clinician the confidence to perform the intubation under a wide range of circumstances and patient types.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Brands:: Riester

Description

ri-integral

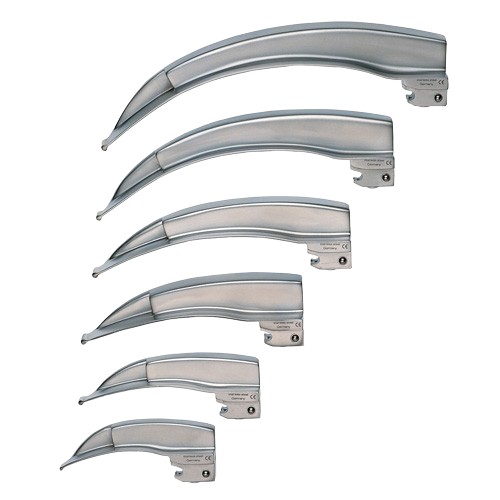

MACINTOSH F.O. BLADE
  • The clear design of the Macintosh Fiber Optic blade with no edges or corners simplifies cleaning and autoclaving.
  • Exceptionally high light intensity with XL + LED illumination.
  • Extra-strong fiber bundles with a cross-section of 17.3 mm ensure the best possible light intensity and durability.
  • Laser-welded, corrosion-resistant
  • Children; Adults

ri-integral

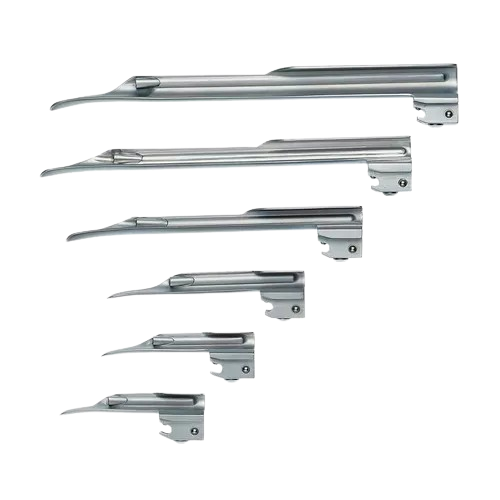

MILLER F.O. BLADE
  • The flat design of the F.O. blade improves visibility considerably and simplifies intubation.
  • Atraumatic blade design.
  • Blade size 00 for neonates.
  • Laser-welded, corrosion-resistant.
  • Neonates; Children; Adults

ri-integral

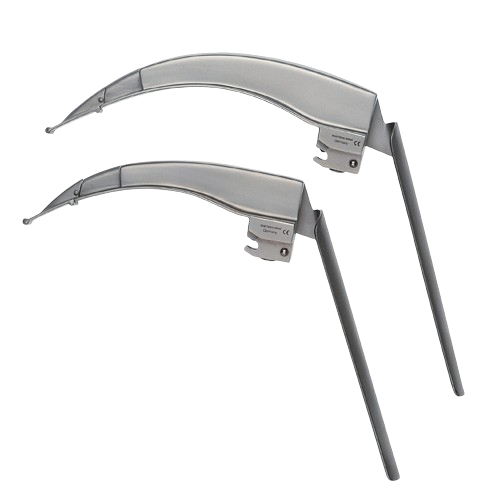

FLEX MACINTOSH F.O. BLADE
  • Flexible blade with integrated F.O. light conductor.
  • Bendable distal end.
  • Outstanding light intensity with XL + LED illumination.
  • Improved light transmission through extra-strong fiber bundles.
  • New blade design for simple intubation provides excellent visibility of the inlet of the larynx and vocal cords, reduced pressure in the pharyngeal area, and minimised risk of injury.
  • Available in sizes 3 or 4.
  • Adults

Features and benefits
  • With an integrated Fiber Optics (F.O.) light conductor.
  • Particularly easy to clean, as there are no external conductors and openings to become contaminated!
  • Outstanding light intensity through XL + LED illumination and strong fiber bundles.
  • Blade design for simple intubation.
  • All blades are compatible with handles complying with ISO 7376.
Product details
ri-integral
Dimensions ri-integral MACINTOSH F.O. blade
81 mm; 95 mm; 116 mm; 135 mm; 155 mm; 178 mm
ri-integral MILLER F.O. blade
76 mm; 80 mm; 103 mm; 154 mm; 193 mm; 211 mm
ri-integral FLEX MACINTOSH F.O.
132 mm; 154 mm
The lamp for Laryngoscope Lamp, small, warm light 2.7 V
300 mA, mean life span 20 h
Lamp, large, warm light 2.7 V
300 mA, mean life span 20 h
Lamp, cold light XL 2.5 V
680 mA, mean life span 20 h
Lamp, cold light XL 3.5 V
700 mA, mean life span 20 h
Lamp, cold light LED 2.5 V
120 mA, mean life span 20,000 h
Lamp, cold light LED 3.5 V
280 mA, mean life span 20,000 h
Ambient temperature 0 °C to 40 °C
Relative humidity 15% to 90% non-condensing
Storage/ Transport temperature -20 °C to 50 °C
Storage/ Transport relative humidity 15% to 85% non-condensing
Air pressure 620 hPa – 1060 hPa



Download Riester Laryngoscopes Set Brochure EN
