ENT

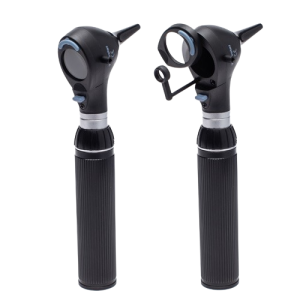

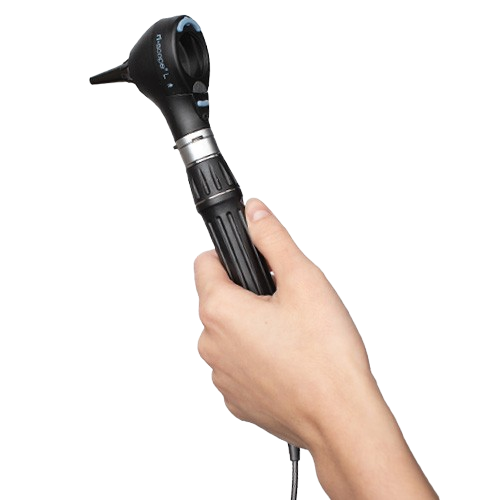

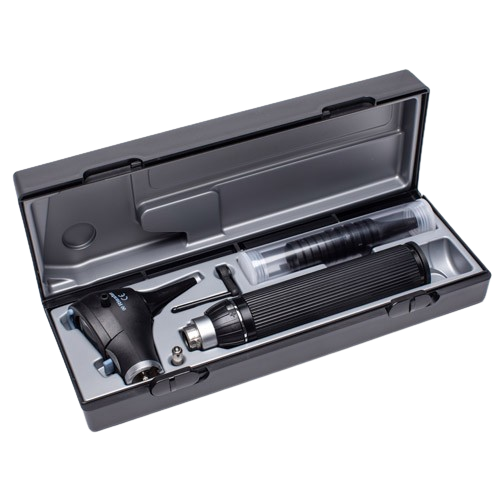

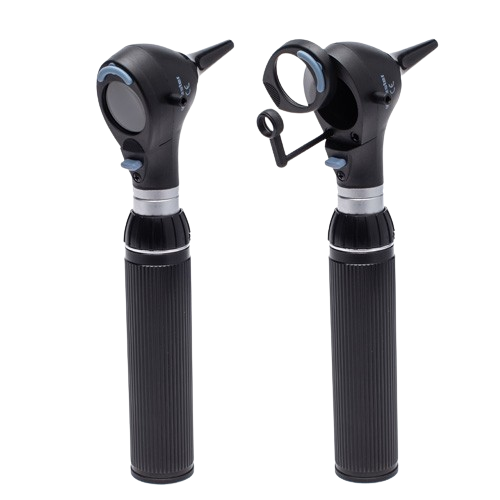

ri-scope L Otoscope

Brands: Riester

~~$0.00~~

Shipped From Abroad

Riester’s ri-scope L line of otoscopes has an option for every user. End users have the choice between LED or Xenon illumination. We offer a large selection of power sources: handy and stable handles, practical chargers and well-conceived diagnostic stations. Below are the differences between the tiers of otoscopes to help you choose the right one for your practice.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Riester

Description
Reviews (0)

Description

ri-scope® L otoscope details

Reusable or disposable ear specula
3x magnification pivoting lens
Push button for ear speculum ejection (L3 only)
OP lens
Bayonet fitting to quickly switch instrument heads
On/Off switch
Battery compartment, black chrome-plated metal handles.

Features and benefits of ri-scope® L otoscopes

All Otoscopes:

Suitable for pneumatic tests (supplied without ball)
Option to come with or without an anti-theft device
Large selection of power sources: handy and stable handles, practical chargers and well-conceived diagnostic stations

L1 Features

Direct illumination with a 2.5 V xenon or 3.5 V xenon lamp
Bi-directional swivelling optical glass with 3-fold magnification, optionally available with an operation lens with 4-fold magnification
Metal nose, compatible with specula by other well-known manufacturers

L2 Features

Fibre optics for optimal beaming and transmission of the light
Bi-directional swivelling, sealing optical glass with 3-fold magnification. Optional operation lens with 4-fold magnification available (sold separately)
Metal nose, compatible with specula by other well-known manufacturers
Comes with an integrated fibre optic throat illuminator

L3 Features

Fibre optics for optimal beaming and transmission of the light
Bi-directional swivelling, sealing optical glass with 3-fold magnification. Optional operation lens with 4-fold magnification available (sold separately)
Comes with an integrated fibre optic throat illuminator
Easy-to-operate SpecEjec®specula ejection device at the rear side of the otoscope to avoid contamination
Fitting for ri-scope® specula and enlarged conduit for instruments

Specifications

ri-scope® L Otoscope
Dimension
The lamp for ri-scope® L Otoscope	Otoscope XL 2.5 V, 2.5 V, 750 mA, mean life span 15 h Otoscope XL 3.5 V, 3.5 V, 720 mA, mean life span 15 h Otoscope LED 2.5 V, 2.5 V, 300 mA, mean life span up to 100,000 h Otoscope LED 3.5 V, 3.5 V, 300 mA, mean life span up to 100,000 h
Ambient temperature	0 °C to 40 °C
Relative humidity	30% to 70% non-condensing
Storage/ Transport ambient temperature	-10 °C to 55 °C
Storage/ Transport relative humidity	10% to 95% non-condensing
Air pressure/ Transport relative humidity	800 hPa – 1100 hPa
