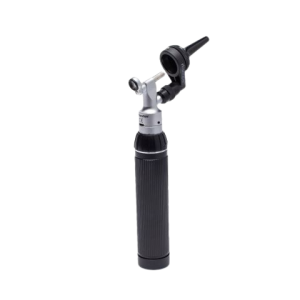

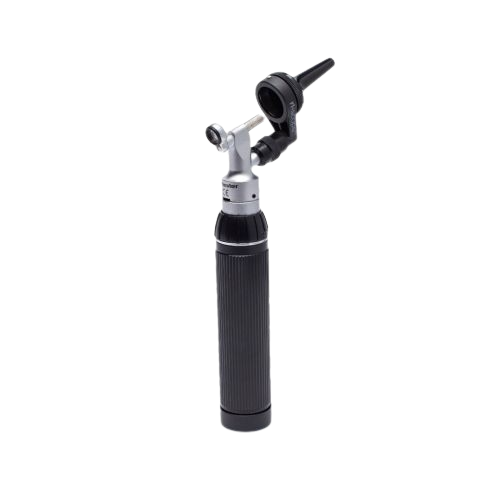

ri-scope® Operation Otoscope

$0.00

Shipped From Abroad

Riester’s ri-scope® Operation otoscope for human use; this product offers 2.5x magnification with a movable speculum holder. The open design offers unhindered use during examination and operation on patients.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Brands:: Riester

Description

Riester’s ri-scope® Operation Otoscope is a robust, high-quality diagnostic instrument made for surgical and examination procedures. Its open design and speculum holder, which can be fixed in any position, provide unhindered access and view during operation. It features a swivel lens with 2.5x magnification and is available with either a powerful Xenon 3.5 V (XL) or a Halogen 2.5 V (HL) lamp. The instrument is fully sterilizable, ensuring a long and hygienic service life.

Operation otoscope for human use

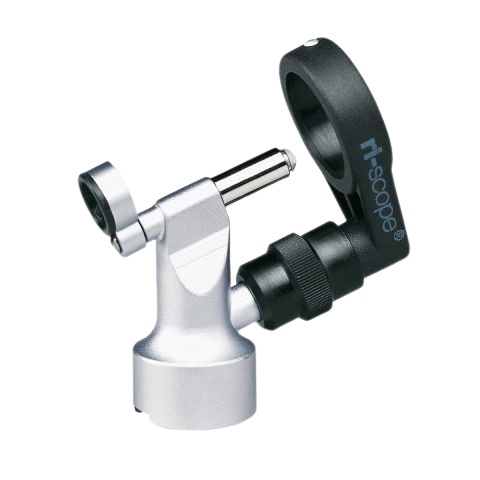

ri-scope® Operation otoscope details

  1. Magnifying glass
  2. Lamp
  3. Reusable ear specula
  4. Bayonet fitting to quickly switch instrument heads.
Features and benefits
  • Customer’s choice of Xenon 3.5 V lamp or Halogen 2.5 V lamp
  • Swivel lens with 2.5x magnification
  • A movable speculum holder that can be fixed in any position
  • Open design for unhindered use during examination and operation
  • The otoscope is made of metal, and the speculum holder is made of impact-resistant plastic, offering a long service life
  • For use with reusable metal specula
    • High-quality model made of chrome-plated, corrosion-free metal
    • Disinfection and sterilisation can be carried out in the normal way (134 °C for 10 minutes)
    • Matte inner surfaces reduce the risk of reflections during examinations
    • Slotted models: Optimum instrument guide provided by special edges on opening
Specifications
Dimensions OP otoscope H Dimension
The lamp for ri-scope® Operation otoscope Human HL 2.5 V, 2.5 V, 680 mA, mean life span 20 h
XL 3.5 V, 3.5 V, 700 mA, mean life span 20 h
Ambient temperature 0 °C to 40 °C
Relative humidity 30% to 70% non-condensing
Storage/ Transport temperature -10 °C to 55 °C
Storage/ Transport relative humidity 10% to 95% non-condensing



Download Brochure
