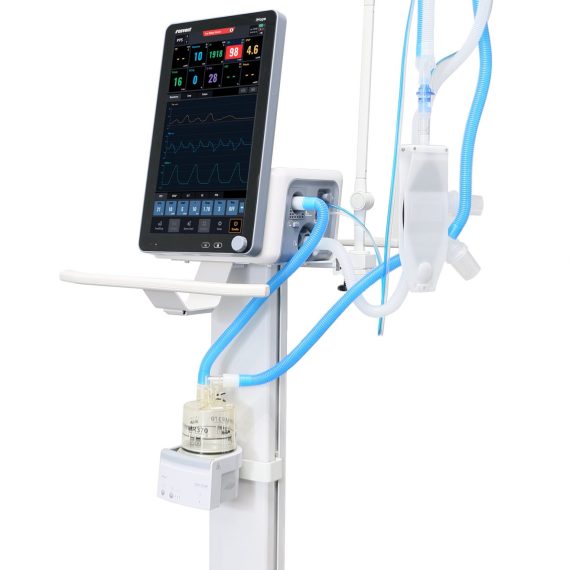

RS100 High-end Mechanical Ventilation

The Resvent RS100 is a high-end ICU ventilator designed for precision care. It features an ultra-HD touchscreen, advanced ventilation modes, lung protection tools, and real-time waveform capture for optimal patient monitoring and treatment.

• Made of medical grade Silicone, have good biocompatibility, non-toxic.
• Exclusive soft seal cuff can be insert comfortable, minimizing potential trauma and increasing sealing.
• Strengthen neck and tip eases insertion and prevents folds.
• Kink-free tube eliminates the risk of airway tube occlusion.
• Have different size, suitable for neonate, infant, child and adult.
• Different color cuff, different material cuff, with aperture bar or not.
• Reusable types must be cleaned and disinfected or sterilizated before use only 40 times.

• Ventilation mode: VCV, PCV, PSV, SIMV(VCV)+PSV, SIMV(PCV)+PSV, MMV, CPAP, Backup apnea.

• Maximum safety pressure of air circuit: no more than 6kpa.
• Inspiratory oxygen concentration: 21-100%.

Ventilation Performance:

• Respiratory rate (f): 4-99 times / min,
• Inspiratory time (Ti): 0.2-6 s,
• Breath holding time (Tp): 0-2s,
• Triggering pressure (Pt): inspiratory triggering pressure is - 2kpa-0kpa,
• Tidal volume (Vt): 0-2000ml;
• Maximum minute ventilation volume: not less than 18 L / min.
• PSV：0～5 kPa,
• Peep Pressure: 0-3kpa,
• Inspiratory flow rate: 0-80 L / min.
• SIMV frequency: 6-60 times / min,
• Inspiratory pressure: 0-6kpa,

Alarm Performance:

• Pressure High Limit (Ph) alarm: 2 ~ 6kpa, audible and visual alarm.
• Pressure Low Limit (Pl) alarm: 0～2KPa, audible and visual alarm.
• Minute ventilation High Limit (Mvh) alarm: audible and visual alarm when ventilation exceeds the set value.
• Minute ventilator Low limit (Mvl) alarm: audible and visual alarm when ventilation is lower than the set value.
• Power off alarm: Power off alarm immediately, and the alarm duration shall not be less than 120s.
• Mute: no more than 2 minutes.

Monitoring Performance:

• 12.1 inch color LCD
• Tidal volume (VT): 0 ～ 2000ml
• Measured total frequency (Ftot), Spont. frequency (Fspont)
• Minute ventilation (Mv).
• I: E ratio.
• Airway pressure (PAW).
• Peak pressure (Ppeak)
• Peep pressure: 0.1 ~ 2KPa
• Pressure-Time and Flow-Time waveform

• The non-replaceable glass fibre bundle is fully enclosed in the blade which allows easy cleaning.
• Rigid metal construction from fully autoclaveable, antimagnetic stainless steel.
• Lever positioned at the rear of the blade to control the tilting tip.
• 3 metal ball bearings for secure fitting.
• Green ISO 7376 fitting metal block compatible with fibre optic handles.
• Tilting tip for elevation of the epiglottis, providing an improved view of the larynx, without excessive force.
• Atraumatic distal end.
• Fully autoclaveable metal blade, covered by a 5 year guarantee or 4,000 autoclaves, whichever is sooner.

Click Here To Download Catalogue

• Microcomputer controlled,pneumatically driven and electronically controlled.
• Pressure, volume controlled treatment ventilator.
• Could be applied for pediatric and adult.
• 100% oxygen fast operation system, make sure to provide pure oxygen at any time.
• Easy setting by navigator wheel knob & touch key
• 5.5" lcd display，very clearly at parameter setting area，monitoring area or alarm area.
• Automatic temperature control humidifier system for operation and maintenance easier
• Back-up battery
• Built-in smart type air compressor
