RV200 Multifunctional Therapeutic Ventilator

Brands: Resvent

~~$0.00~~

Shipped From Abroad

RV200 is a portable, turbine-based ICU ventilator for all ages, with touchscreen control and lung protection tools.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Resvent

Description
Reviews (0)

Description

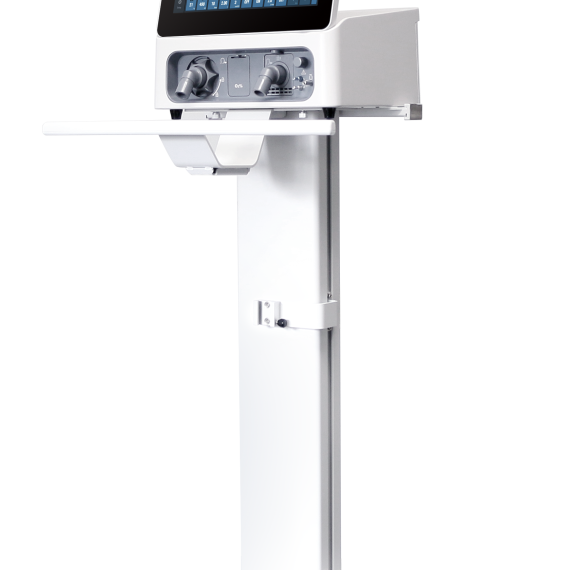

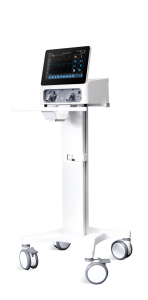

The Resvent RV200 is a multifunctional ICU ventilator that offers both invasive and non-invasive therapy across all age groups. With advanced lung protection tools, a tilt touchscreen, and long battery backup, it’s ideal for critical care portability.

High-end outstanding platform of mechanical ventilation, Humanized Design makes operation easier.

2.1-inch Ultra HD Screen, supports touch with gloves.
Support invasive and non-invasive modes.
Suitable for adults, pediatric, and infants.
Support one hand detachable breathing valve, more convenient to use.
Easy to carry with one hand.

Weaning parameters help medical staff quickly judge the patient’s spontaneous breathing ability and determine the best withdrawal time

P0.1
NIF
RSBi

Multiple assistance tools and monitoring parameters, more safety with accurate decisions

PV-Aids assist in setting the best PEEP
Dynamic lung helps the user to make a decision quickly.
Different monitoring parameters to understand the patient’s in real ti conditionme
Support waveform freezing and screen capture, making academic research more convenient

Reviews

There are no reviews yet.

Be the first to review “RV200 Multifunctional Therapeutic Ventilator”

Quick Comparison

RV200 Multifunctional Therapeutic Ventilator remove Zerone Syrin-4000 Syringe Pump remove Render SD-M2000B Anesthetic Machine remove Render SD-H3000A Mobile ICU Ventilator remove Render SD-M2000A Anesthetic Machine remove Promise Multi Parameter Patient Monitor remove

Name RV200 Multifunctional Therapeutic Ventilator remove Zerone Syrin-4000 Syringe Pump remove Render SD-M2000B Anesthetic Machine remove Render SD-H3000A Mobile ICU Ventilator remove Render SD-M2000A Anesthetic Machine remove Promise Multi Parameter Patient Monitor remove


SKU SF1033560084-55 SF1033560011-10 SF1033560011-21 SF1033560011-13 SF1033560084-68

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad RV200 is a portable, turbine-based ICU ventilator for all ages, with touchscreen control and lung protection tools.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock Main Features Zerone Syrin-4000 Syringe Pump - Compact and robust built - Simple, safe and intuitive menu - History record review and last configuration memory - Titration(change the flow rate while operating) - Bolus - 2.8 inch wide LCD window - Automatically detect syringe size - Calibration function

Delivery & Availability:

Typically 2 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad

Contains Output interface for Anesthesia information management system.
Complete with backup battery for working more than 30 minutes.

Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad

Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad

Compact design
save space in O.R or Laboratory Room
High quality & Durability design
Easy operation & easy maintenance
New integrated respiratory circuit available with own patent
LED Ventilator inside & One standard ZF-1000 precise vaporizer
Optional: Two precise ZF-1000 vaporizers

Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In stock

Patented in-house design, elegant appearance
Steady 12.1 inch monitor, suitable for bedside and transferring
Simple user-friendly menu, preferable for both regular LCD and touchscreen
Unique one-key-switching for maximum 7 display interfaces
Preinstall Plug-and-Play EtCO2 socket, simpler upgrade for ICU application
Waterproof case in strict accordance with IPX1 on CE regulation
Wide application for adult, pediatric and neonatal

Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

High-end outstanding platform of mechanical ventilation, Humanized Design makes operation easier.

2.1-inch Ultra HD Screen, supports touch with gloves.
Support invasive and non-invasive modes.
Suitable for adults, pediatric, and infants.
Support one hand detachable breathing valve, more convenient to use.
Easy to carry with one hand.

Weaning parameters help medical staff quickly judge the patient's spontaneous breathing ability and determine the best withdrawal time

P0.1
NIF
RSBi

Multiple assistance tools and monitoring parameters, more safety with accurate decisions

PV-Aids assist in setting the best PEEP
Dynamic lung helps the user to make a decision quickly.
Different monitoring parameters to understand the patient's in real ti conditionme
Support waveform freezing and screen capture, making academic research more convenient

Main Features of Zerone Syrin-4000 Syringe Pump - Compact and robust built - Simple, safe and intuitive menu - History record review and last configuration memory - Titration(change the flow rate while operating) - Bolus - 2.8 inch wide LCD window - Automatically detect syringe size - Calibration function Compatible Syringes - 5ml, 10ml, 20ml, 30ml, 50ml are available Audio-Visual Alarm - Low battery - Syringe empty - Occlusion - Plunger not fitted - K.V.O - Clamp opened - End of infusion - Internal error Safety - Syringe clamp open-occlusion - Keypad lock -All key don't work except START and On/Off key - Protect type: class I - Self testing - every time the unit turns on, self testing is proceeded - Long battery life (Li-ion battery) Technical Specifications of Zerone Syrin-4000 Syringe Pump

Pump System - Peristaltic Finger System
Control Mode - Volumetric control
Flow Range - 0.1~999.9ml/h
Volume Range - 0.1~9999ml
V.O. - Off, 0.1ml/h,1~5ml/h
Bolus Rate - 1~999ml/h
Accuracy - ± 5%
Display - 2.8 inch TFT LCD, FND 7 segments
Electric Shock Protection - ClassⅡ, Type CF
Waterproof - IPX 2 Standard
Power Input - AC100~240 VAC, 50~60Hz
Power Consumption - 40VA
Interface - USB Cable <Baud rate : 115200bps, Data : 8 bit>
Macro/Micro - Micro: 0.1~9999 ml
History Log - 2000 events
Battery - Li-ion Rechargeable Battery (2200mA/h, 10.8V)
Operating Time: approx. 8 hours
Recharging Time: approx. 8 hours

Click Here To Download Catalogue

Features:

Contains Output interface for Anesthesia information management system.
Complete with backup battery for working more than 30 minutes.

Technical Specifications:

Model:	SD-M2000B
Brand:	RENDER
Origin:	Made In China
Category:	Electronics & Electricity / Electronic Instrument / Electricity Meter & Instrument
Label:	anesthesia machine , anesthesia ventilator , anesthesia machine

Click Here To Download Catalogue

Features: Main performance and Technical Index:

Ventilation mode: VCV, PCV, PSV, SIMV(VCV)+PSV, SIMV(PCV)+PSV, MMV, CPAP, Backup apnea.

Air circuit Performance:

Maximum safety pressure of air circuit: no more than 6kpa.
Inspiratory oxygen concentration: 21-100%.

Ventilation Performance:

Respiratory rate (f): 4-99 times / min,
Inspiratory time (Ti): 0.2-6 s,
Breath holding time (Tp): 0-2s,
Triggering pressure (Pt): inspiratory triggering pressure is - 2kpa-0kpa,
Tidal volume (Vt): 0-2000ml;
Maximum minute ventilation volume: not less than 18 L / min.
PSV：0～5 kPa,
Peep Pressure: 0-3kpa,
Inspiratory flow rate: 0-80 L / min.
SIMV frequency: 6-60 times / min,
Inspiratory pressure: 0-6kpa,

Alarm Performance:

Pressure High Limit (Ph) alarm: 2 ~ 6kpa, audible and visual alarm.
Pressure Low Limit (Pl) alarm: 0～2KPa, audible and visual alarm.
Minute ventilation High Limit (Mvh) alarm: audible and visual alarm when ventilation exceeds the set value.
Minute ventilator Low limit (Mvl) alarm: audible and visual alarm when ventilation is lower than the set value.
Power off alarm: Power off alarm immediately, and the alarm duration shall not be less than 120s.
Mute: no more than 2 minutes.

Monitoring Performance:

12.1 inch color LCD
Tidal volume (VT): 0 ～ 2000ml
Measured total frequency (Ftot), Spont. frequency (Fspont)
Minute ventilation (Mv).
I: E ratio.
Airway pressure (PAW).
Peak pressure (Ppeak)
Peep pressure: 0.1 ~ 2KPa
Pressure-Time and Flow-Time waveform

Technical Specifications

Model NO. - SD-H3000A

Type - Ventilator

O2 Concentration - 21%-100%

Use for - ICU Operating Room

Tidal Volume - 0-2000ml

Min Tidal Volume - 50-1500ml

I:E - 5.0:1~1:5.0

Peep - 0-40cm H2O

Kind - Gynaecology

Certification - CE, FDA, ISO13485

Group - Adult

LCD Display - With LCD Display

Trademark - RENDER

Transport Package - Wooden Package

Origin - China

HS Code - 9018907000

Compact design
save space in O.R or Laboratory Room
High quality & Durability design
Easy operation & easy maintenance
New integrated respiratory circuit available with own patent
LED Ventilator inside & One standard ZF-1000 precise vaporizer
Optional: Two precise ZF-1000 vaporizers

Click Here To Download Catalogue

Features:

Patented in-house design, elegant appearance
Steady 12.1 inch monitor, suitable for bedside and transferring
Simple user-friendly menu, preferable for both regular LCD and touchscreen
Unique one-key-switching for maximum 7 display interfaces
Preinstall Plug-and-Play EtCO2 socket, simpler upgrade for ICU application
Waterproof case in strict accordance with IPX1 on CE regulation
Wide application for adult, pediatric and neonatal

Technical Specifications: Brand Name :PROMISE Model Number :PRO-M12D Certification :ISO 13485 Place of Origin :CHINA Lead Mode :Lead Mode: 5 leads or 3 leads Lead Selection :I, II, III, avR, avL, avF, V /or I, II, III Gain :Auto, 2.5, 5, 10, 20mm/mV HR Range :Adult: 15-300bpm; Ped/Neo: 15-350bpm HRAccuracy :±1% or ±1bpm HR Resolution :1bpm Method :Oscillometric Range :0-50℃ Respiration :Accuracy: ±2rpm Resolution: 1rpm Work Mode :Manual,Auto, STAT NIBP Range :Adult: 10-280mmHg; Ped: 10-220mmHg; Neo: 10-135mmHg Pulse rate range :40-240bpm Accuracy :70-100%: ±2%, <70%: unspecified Resolution : 1% NIBP :Overpressure Protection SpO2 :Range: 0-100% PR range :0-250bpm PRAccuracy :±2bpm PR Resolution: 1bpm Temperature Channel :2 Temperature :Accuracy: ±0.1℃ Resolution: 0.1℃ Optional :Main/Side stream EtCO2, 2-IBP, 2-TEMP, Recorder, VGAOutput, Touch Screen, CentraMonitoring System, Wall mount, Trolley Product Dimension :305(L) x 170(W) x 285(H) mm Package Dimension :430(L) x 390(W) x 310(H) mm Net Weight :3.2KG Gross Weight :6.1KG AC Power Supply :100-240V, 50/60Hz Built-in battery :2 hours continuous work

Weight N/A N/A N/A N/A N/A N/A

Dimensions N/A N/A N/A N/A N/A N/A
