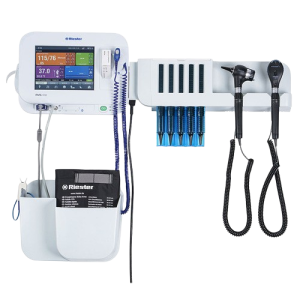

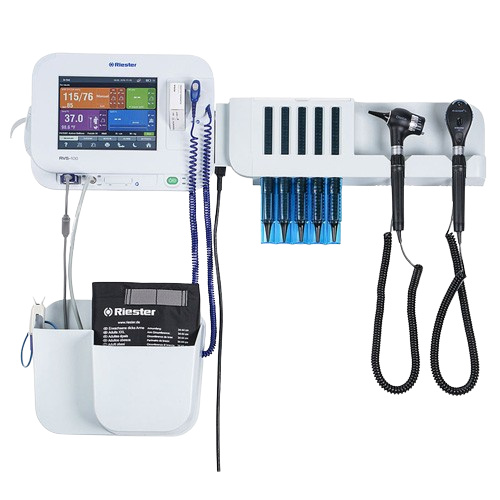

RVS-200 Integrated Modular Wall Diagnostic Station

Brands: Riester

~~$0.00~~

Shipped From Abroad

RVS-200 is a versatile, integrated modular wall diagnostic station that, like the RVS-100, measures pulse rate (PR), oxygen saturation (SpO2), non-invasive blood pressure (NIBP), and temperature (oral/axillary probe) with the additional option to add ophthalmoscopes, otoscopes, and dermatoscopes. The flexible, modular design offers many configurations and settings to suit the needs of hospitals and clinics, as well as office-based and long-term care settings.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Riester

Description
Reviews (0)

Description

Integrated RVS-100 Vital Signs Monitor

RVS-100 can be programmed with NEWS (National Early Warning Signs, 1997), MEWS (Modified Early Warning Signs, 2001) and also has 5 customisable profiles which can be set by the end-user if they have different parameter values. RVS-200 provides the additional benefit to RVS-100 for the healthcare professional (HCP) to be able to assess their patient’s eyes, ears, and skin, making it suitable to diagnose a wide range of conditions across ENT and Dermatology.

The device has ‘Monitor‘, ‘Spot Check‘, and ‘Triage‘ profile options, as well as a ‘Demo’ mode.

Continuous Monitoring is designed for monitoring patients over time and includes physiological and technical alarms. Spot Check is designed for taking a single set of vital signs measurements on a patient. Patient information can be entered and managed, and while technical alarms are still available, physiological alarms are disabled. Triage is designed for rapidly taking vital signs measurements on many patients. Patient information is disabled, in addition to physiological alarms. Demo mode demonstrates how each measurement mode works.

Hardware

Features and benefits

Large 8“ full HD colour TFT-LCD screen displays large numbers and bright colour-coded parameters so that vital signs can be seen clearly and interpreted easily.
The screen is visible in both dark and lit rooms.
The touch screen and intuitive user interface make it quick and easy for patient information to be entered and settings amended as required.
The modular design is chosen by the customer around their needs, starting with the choice between a table/mobile stand or wall-mounted, through to the optional accessories like a printer.
It can be plugged into the mains or powered from the battery for 17 hours.
Riester is committed to providing reliable clinical measurements, including the choice of SpO2:
- Riester
- Nellcor

Centralised power supply supports up to 3 diagnostic handles, from a choice of Riester ri-scope^® L and EliteVue instrument heads:
- Otoscope
- Ophthalmoscope
- Retinoscope
- Dermatoscope
- Tongue Blade Holder
- Nasal Speculum
- Bent Arm Illuminators
Integrated specula dispenser for the otoscope and nasal specula with 5 tubes for 5 different sizes of specula, dispenses a new specula for each examination, and is easy to refill and disinfect.

Software

Features and benefits

RVS-100 is programmed with EWS: NEWS, MEWS, and 5 customisable profiles, which can be set by the end-user if they have bespoke requirements.
Serve a large patient population with the ability to save up to 1000 patient records, with up to 5000 measurements per patient.
Can be used on all patient types: adult, paediatric, and neonate.
RVS-100 can communicate through a wired or wireless connection to the hospital’s EMR/EHR, according to the HL7 standard.
Software languages available: Chinese, Danish, English, French, German, Italian, Polish, Portuguese, Spanish (Europe), and Traditional Chinese

Space requirement	600mm = 23,622 inch, 309mm = 12,165 inch, 871mm = 34,291 inch, 100mm = 3,937 inch
Power supply	100 – 240 V AC, 50/60 Hz
Battery	Lithium-Ion battery, rechargeable, 10.8 V DC, 6600 mAh. Charging time to a 100%: 6 hours, Operating time approx. 11 hours (new and fully charged battery at 25 °C ambient temperature with connected SpO2, Temp, and NIBP on AUTO mode (15 minutes interval), Low battery indicator, Charging battery indicator
Monitor dimensions	303 x 230 x 110 mm (11.93 x 9.05 x 4.33 in)
Monitor weight	3600 g (7.94 lb) inc. temperature module, printer
Basket dimensions	270 x 225 x 200 mm (10.63 x 8.86 x 7.87 in)
Alarm	Visible LEDs (Yellow, Red, Blue, Green, Orange) Audible Speaker, Gives audible alarm, QRS tone. Supports Pitch Tone and multi-level volume. Alarm tones meet the requirement of IEC 60601-1-8. Alarm Pressure: 45 dB to 85 dB test distance is 1 meter from the tone
Ports	1 x AC power inlet 1 x standard RJ45 interfaces.100 BASE-TX, IEEE 802.3 4 x USB ports 1 x Equipotential grounding point 1 x RJ11 connector for nurse call DC out port 15 V/1.2 A

NIBP (non-invasive blood pressure)

Measuring method	Automatic oscillometric
Measurement range	Adult SYS 30 – 270 mmHg, DIA 10 – 220 mmHg, MAP 20 – 235 mmHg Paediatric SYS 30 – 235 mmHg, DIA 10 – 220 mmHg, MAP 20 – 225 mmHg Neonate SYS 30 – 135 mmHg, DIA 10 – 110 mmHg, MAP 20 – 125 mmHg
Cuff pressure range	0 – 280 mmHg
Resolution	1 mmHg
Pressure accuracy	Static ±3 mmHg Clinic ±5 mmHg, standard deviation ≤ 8 mmHg
Pulse rate range	40 – 240 bpm
Pulse rate accuracy	1 bpm
Initial inflation pressure	Adult 160 mmHg, Paediatric 130 mmHg, Neonate 75 mmHg Double overpressure protection (hardware and software). Adult 297 ±3 mmHg, Paediatric 252 ±3 mmHg, Neonate 147 ±3 mmHg
Alarm range	SYS 0 – 300 mmHg DIA 0 – 300 mmHg MAP 0 – 300 mmHg

SpO2 – Riester
Measurement range	0 – 100%
Resolution	1%
Accuracy	±2% (70% to 100%) ±3% (40% to 69%) Unspecified (0% to 39%)
Alarm range	0 – 100%
Average time	4 sec, 8 sec, 16 sec
Pulse rate Measurement range	20 – 250 bpm
Pulse rate Resolution	1 bpm
Pulse rate Accuracy	±1% or ±1 bpm which ever is greater

SpO2 – Nellcor
Measurement range	0 – 100%
Resolution	1%
Accuracy	70 – 100%: ±2% (adult, paediatric) 70 – 100%: ±3% (neonate) 0 – 69%: unspecified
Alarm range	0 – 100%
Average time	8 sec, 16 sec
Pulse rate Measurement range	20 – 300 bpm
Pulse rate Resolution	1 bpm
Pulse rate Accuracy	20 – 250 bpm: ±3 bpm 251 – 300 bpm: unspecified

SpO2 – Masimo

Measurement range	0 – 100%
Resolution	1%
Accuracy	70 – 100%: ±2% (adult, paediatric, non-motion conditions) 70 – 100%: ±3% (neonate, non-motion conditions) 70 – 100%: ±3% (motion conditions) 0 – 69%: unspecified
Alarm range	0 – 100%
Average time	2 – 4 sec, 4 – 6 sec, 8 sec, 10 sec, 12 sec, 14 sec, 16 sec
Pulse rate Measurement range	25 – 240 bpm
Pulse rate Resolution	1 bpm
Pulse rate Accuracy	±3 bpm (non-motion conditions) ±5 bpm (motion conditions)

RPT-100 (Filac 3000) Predictive Thermometer

Oral (Quick Mode)	non-fever temps: 3 – 5 seconds, fever temps: 8 – 10 seconds
Oral (Standard Mode)	6 – 10 seconds
Axillary Mode	8 – 12 seconds
Rectal Mode	10 – 14 seconds
Direct Mode (all sites)	60 – 120 seconds
Measurement accuracy	35.5 °C – 42 °C Direct Mode (all sites): ±0.1 °C (±0.2 °F) Standard Mode (all sites): ±0.1 °C (±0.2 °F) Quick Mode (oral only): ±0.3 °C (±0.5 °F)
