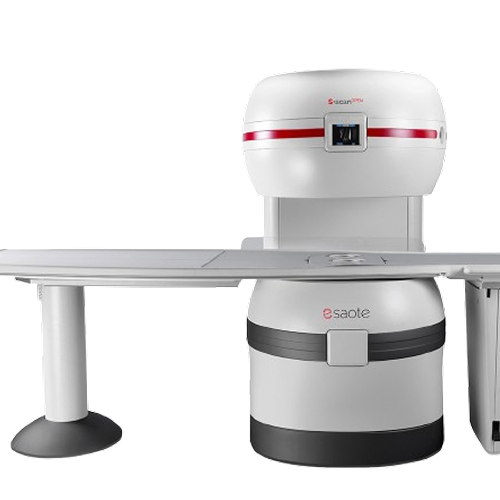

S-scan Open – The New Open MRI scanner

Open to the future

An evolution in diagnostic excellence

Imaging & Visualization

The S-scan Open features an innovative design and technology aimed at superior image quality and a streamlined user experience:

• Open Magnet Design: This open structure makes the MRI experience more comfortable and claustrophobia-free for all patients, including children, and also allows for easy patient positioning.

• Speed & Efficiency: The system incorporates a speed-up technique, making examinations up to 35% faster compared to previous technologies.

• Low Running Costs: It utilizes a permanent magnet that guarantees uncompromised diagnostic quality with low operating costs, with an average power consumption of just 2 kW during acquisition.

• Small Footprint: Its smart, customer-friendly design means it can fit into a small space, with a magnet room requirement of approximately 20 m².

• Real-Time Display: The system offers real-time image display and features a wide, asymmetric rotating table for comfortable and easy patient positioning.

Clinical Applications

The S-scan Open is specifically designed to meet the demanding needs of practices with a high musculoskeletal (MSK) workload.

• Musculoskeletal (MSK): Its primary application is in the diagnosis and assessment of joints, ligaments, muscles, and tendons.

• Spine Imaging: It offers high-quality imaging for the cervical, tS-scan_OPEN_160000457MA_V2_0624_LRhoracic, and lumbar spine.

• Dynamic Examinations: The system allows for dynamic examinations to investigate specific clinical questions and provide a more comprehensive assessment of joint function.

Coils (Probe Types)

The system supports 14 multi-purpose coils (transducers) to maximize sensitivity and resolution for the specific anatomies being examined.

• Following spinal surgery
• Neck sprain or strain
• Cervical spondylosis

• Help to keep cervical spine in neutral
• Perforated splint with foam padding adds comfort and compliance
• Easy to adjust with hook and loop fasteners

• DIAMOND is a fully-automatic diagnostic system with motorized movement and pre-programmed data for automatic positioning that can be easily reprogrammed by the operator.
• Seven safety sensors have been integrated into the DIAMOND system to protect patients from accidental collision.

• Included – Software, HP Laptop Computer

• Power Rating - 52KW
• mA - 10 to 640mA
• mAs - 0.1 to 500mAs
• kV - 40 to 150kV, 1kV Step
• Generator - GXR-52
• Rotor - Dual Speed (High and Low)
• Input Power - 400/480VAC±10%, 3Ø
• Line Frequency - 50/60Hz
• X-ray tube – DXT-12M 0.6/1.2mm, 300kHU

Click Here To Download Catalogue

• BILIPOD LED Double Surface Phototherapy Unit Sturdy Baby Trolley consists of –  Collapsible Acrylic Side Panels  Transparent Baby Tray with Bubble Mattress  Height Adjustment and Angle Adjustment for Overhead LED Module  Four Swivelling castor wheels with brakes Certified Also available - Bilipod Double Surface Phototherapy Unit with Detachable trolley
• Uniform Light Distribution with 11 High Intensity LED Lamps uniform body coverage • Observation Lamp Two Observation White LEDs provide enough light to observe the color of baby’s skin • High Irradiance Levels Irradiance > 30 µW/cm²/nm enables faster bilirubin breakdown • Pin Drop Silent Operation zero noise cooling fan • Optimum Wavelength Range: 420 to 490 nm • Very Low Power Consumption of only 30W • Effective Surface Area : 40cm x 50cm
• Life of Lamps - 30000 hours • Lamp Tilt up to 90° • Height Adjustability up to 50cm • Light Weight Lamp Unit weighs less than 3 Kg • Portable can be placed above Infant incubator or below the Infant Warmer Bassinet to give under surface Phototherapy • Sleek & Compact Lamp Unit Size : 45 x 30 x 5 cm takes minimum space • Timer: LCD Based Timer measuring Total Lamp Usage and Patient Timer
• BiliProbe Irradiance Meter Handheld Irradiance (Flux) meter for measurement of the output of conventional Phototherapy Units.  Bandpass filter - 425nm to 475nm  Range: 0 to 200 uW/cm²/nm  Minimal Graduation: 1 uW/cm²/nm  Accuracy: ± 10%  Measuring Time: Approx 4-5 sec  Press to ON Switch  Battery: 9V Alkaline Phototherapy Eye PATCH has been designed to assure complete comfort, and eye protection for infants during Phototherapy Treatment  Adjustable Band for proper comfort and secure fit  Easy to use design  Large eye protection pad increases light protection  Single Piece wrap around design can be independently adjusted to prevent unwanted movement.  Available in 3 sizes - Preterm, Term and Neonatal Phototherapy Eye Patch

Click Here To Download Catalogue

Features:

Safety system:

Advance Dry Heating Technology:

Heating up to the patient:

User friendly interface:

Open system:

Click Here To Download Catalogue

• Vehicle loadable
• Wheel lock
• Automatic tube arm lock at any angle
• Storage space for cassettes or detectors
• User Programmable APR, save up to 9 APR settings
• Three way X-ray exposure
• USB interface & Bluetooth
• Remote control (Option)
• 5kg including X-ray unit, collimator and stand
• Maximum hight of 228.6cm
• Exposure Hand Switch
• Foldable, two-step stand

• Power Rating - 4kW,
• 100kHz, high frequency X-ray Generator
• kVp Range - Maximum 140kVp
• mAs Range - 0.1-250mAs
• mA Range – 10 to 100mA
• 330~2000mm FD
• Collimator with 30 seconds LED lamp timer

Click Here To Download Catalogue
