Spin Tissue Processor STP 120

Brands: Myr

~~$0.00~~

Shipped From Abroad

Myr Spin Tissue Processor STP 120 has been developed to meet the requirements of every single laboratory. The technology and the unique processing method of the STP 120 qualifies it as the most successful Spin Tissue Processors ever. With more than 3.500 units installed around the world confirms its leading position.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560130128-3

Brands:: Myr

Description
Reviews (0)

Description

Features

A worldwide unique technique

Tissue processing is a technique than uses alcohols to remove water from tissues and replace it with a medium that allows sectioning of tissue. Several methods are used to achieve this. Myr Spin Tissue Processor STP 120 fulfills it in a patented and unique technique that combines several movements for the tissue to achieve perfect infiltration results. This is possible thanks to the world’s best spin processing method.

ROTATIONAL AGITATION

The basket with the cassettes is immersed into the reagent vessel. In this position, the basket turns at 60 rpm and changes the rotational direction every 60 seconds. The rotational agitation achieves a perfect infiltration of tissue, a homogeneous mixture of the reagents and a reduction of processing time. To get better results, the user can start optionally a shaking process.

SHAKING

This movement can be optionally activated on the control panel and allows the basket to perform an up-down movement inside the vessel that combined with the rotational agitation fulfills a helicoidal movement that increases infiltration quality at a high degree of precision. At the end of this process, baskets start centrifuging.

CENTRIFUGING

This function is activated as soon as the infiltration time comes to an end. The basket rises above the reagent’s level but rests inside the vessel. For a period of 60 seconds, it starts whirling at 210 rpm and changes the rotational direction every 15 seconds. This process allows the tissue to be optimally drained and avoids carry-over of reagents from one vessel to another.

Tissue processing achieves by this method almost similar results to those obtained with vacuum systems!

Ergonomic control panel

The buttons of the control panel are arranged ergonomically for easy handling. The LCD display shows all the parameters throughout the process, such as program number, vessel, remaining time, start delay, total duration of the program, rotational agitation and shaking, basket’s centrifuging, temperature of paraffin baths, date and time.

Easy handling

The instrument has the capacity to store up to 10 different programs that can be freely set up by the user. Each one of the programs can be started in immediate or delayed mode, without a time limit. The instrument can easily be rotated via the four rollers mounted on the base. This allows the user to have fast and safe access to each one of the vessels.

Maximum safety standards for the user and the specimen

In case of a power shutdown, the specimens are automatically lowered inside the vessel by means of a battery to protect them against desiccation and solid paraffins. Once power is restored, the instrument resumes the program at the same point in which it was interrupted. lf it is a long power failure and the paraffin baths become solidified, the safety program will be activated. The instrument will then wait for the baths to be fully liquified before going ahead with the change to the paraffin baths.

Emergency motions can be implemented through the battery, such as moving the basket up and down or station change (as long as the basket is not inside a solidified paraffin bath). The instrument is also equipped with an emergency stop button. It is possible to interrupt a program for reloading or advanced unloading of samples.

Alarms during the process

If the specimens remain inside a station for a longer time than the programmed time, e.g. due to a power failure, the display will show a message indicating the station number and the overtime spent in that station compared with the initially programmed time. The acoustic and visual alarms can easily be identified by the user. The keyboard can be locked by the user to avoid an inadvertent change of the process parameters during operation.

Technical Data Spin Tissue Processor STP 120

Power requirements
Nominal voltage	100 – 120 V	220-240 V AC (±10%)
Network’s frequency	50/60 Hz
Consumption	400 VA
Fuses	115 V (2xT4A)	230 V (2xT2A)
Accumulator Nickel-Cadmium	12 V 600 mA
Capacity
Reagent stations
Number of vessels	10 (9 if 3 paraffin baths are used)
Volume per vessel	1,8 l
Paraffin stations
Number	2 (optionally 3)
Volume	1,8 l
Nominal voltage	24 V AC
Nominal power per station	100 VA
Temperature setting range (temperature increase by 1 degree celsius)	45 – 70 °C
Overtemperature release	75 °C (± 4 °C)
Cassette baskets
Number of baskets	1 (optionally 2)
Basket capacity	120 cassettes (optionally 240)
Programming
Number of programs	10 (selectable)
Infiltration time per station	from 1 m to 99 h 59 m
Rotational agitation	selectable
Shaking	selectable
Centrifuging time	selectable
Program start delay	selectable without time limit
Dimensions
Diameter	850 mm
Height	500 – 700 mm
Diameter of the roller’s circle	670 mm
Weight
Including packaging	130 kg
Net (fully equipped)	70 kg

Optional accessories

Spiral support for a second cassette basket (double processing capacity)

Additional basket

Additional paraffin bath (necessary when operating the processor with two baskets)

Fume extraction system with active charcoal filter

Click here to download Catalogue

Reviews

There are no reviews yet.

Be the first to review “Spin Tissue Processor STP 120”

Quick Comparison

Spin Tissue Processor STP 120 remove Chemical Weighing Balance remove Optika Optigem-2 Trinocular Stereozoom Microscope remove OPTIKA IM-3 Inverted Trinocular Phase Contrast Microscope remove OPTIKA B-383LD1 Trinocular LED Fluorescence Microscope remove OPTIKA SFX-33 Stereomicroscope (Fixed Arm) remove

Name Spin Tissue Processor STP 120 remove Chemical Weighing Balance remove Optika Optigem-2 Trinocular Stereozoom Microscope remove OPTIKA IM-3 Inverted Trinocular Phase Contrast Microscope remove OPTIKA B-383LD1 Trinocular LED Fluorescence Microscope remove OPTIKA SFX-33 Stereomicroscope (Fixed Arm) remove


SKU SF1033560130128-3 SF1033560084-190 SF1033560098-12 SF1033560098-18 SF1033560098-15 SF1033560098-20

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad Myr Spin Tissue Processor STP 120 has been developed to meet the requirements of every single laboratory. The technology and the unique processing method of the STP 120 qualifies it as the most successful Spin Tissue Processors ever. With more than 3.500 units installed around the world confirms its leading position.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In stock This is a 210g/0.001g Analytical electronic chemical balance for industrial and scientific field.

Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad Trinocular gemological stereomicroscopes for brightfield and darkfield applications with special side-emitting LED illumination ring for true darkfield illumination. Equipped also with an incident LED flexible arm and a diffusive LED disc for transmitted illumination. The instrument can be easily tilted horizontally for immersion analysis.

Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad IM Series has been engineered and designed to be your ideal solution for fast and reliable routine inspections. The glass stage surface allows optimal visual access to the objective turret. The straight neck leaves ample room for sample positioning and for the most advanced probes. A particularly simple and ingenious optical design allows stable alignments and smooth and accurate movements.

Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad Easily accessible controls, including the stage drive, fine focus and brightness control combined with Optika revolutionary ALC system grants maximum comfort and relaxed working conditions.

Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad SFX Series is the new line of OPTIKA stereomicroscopes designed for extreme simplicity and incorporating the most wanted features in a first experience microscope, revealing a completely new and wonderful hidden world with three-dimensional image of any subject put underneath it.

Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

Features

A worldwide unique technique

ROTATIONAL AGITATION

SHAKING

CENTRIFUGING

Tissue processing achieves by this method almost similar results to those obtained with vacuum systems!

Ergonomic control panel

Easy handling

Maximum safety standards for the user and the specimen

The individual cover for each one of the vessels reduces the emission of vapors to a minimum. The STP 120-2 and STP 120-3 versions incorporate a fume extraction system that – through a fan and an active charcoal filter – cleanse the vapors before being discharged into the air. Optional adaptor for the laboratory general extraction system. In case of a power shutdown, the specimens are automatically lowered inside the vessel by means of a battery to protect them against desiccation and solid paraffins. Once power is restored, the instrument resumes the program at the same point in which it was interrupted. lf it is a long power failure and the paraffin baths become solidified, the safety program will be activated. The instrument will then wait for the baths to be fully liquified before going ahead with the change to the paraffin baths.

Alarms during the process

Technical Data Spin Tissue Processor STP 120

Power requirements
Nominal voltage	100 – 120 V	220-240 V AC (±10%)
Network’s frequency	50/60 Hz
Consumption	400 VA
Fuses	115 V (2xT4A)	230 V (2xT2A)
Accumulator Nickel-Cadmium	12 V 600 mA
Capacity
Reagent stations
Number of vessels	10 (9 if 3 paraffin baths are used)
Volume per vessel	1,8 l
Paraffin stations
Number	2 (optionally 3)
Volume	1,8 l
Nominal voltage	24 V AC
Nominal power per station	100 VA
Temperature setting range (temperature increase by 1 degree celsius)	45 – 70 °C
Overtemperature release	75 °C (± 4 °C)
Cassette baskets
Number of baskets	1 (optionally 2)
Basket capacity	120 cassettes (optionally 240)
Programming
Number of programs	10 (selectable)
Infiltration time per station	from 1 m to 99 h 59 m
Rotational agitation	selectable
Shaking	selectable
Centrifuging time	selectable
Program start delay	selectable without time limit
Dimensions
Diameter	850 mm
Height	500 – 700 mm
Diameter of the roller’s circle	670 mm
Weight
Including packaging	130 kg
Net (fully equipped)	70 kg

Optional accessories

Spiral support for a second cassette basket (double processing capacity)

Additional basket

Additional paraffin bath (necessary when operating the processor with two baskets)

Fume extraction system with active charcoal filter

Click here to download Catalogue

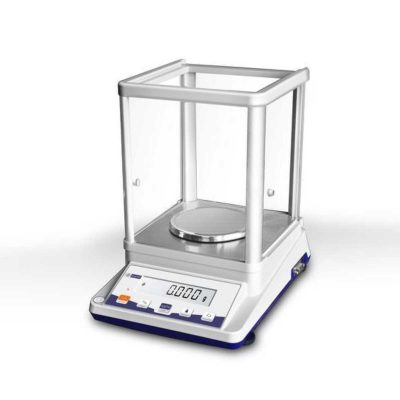

This is a 210g/0.001g Analytical electronic chemical balance for industrial and scientific field.
