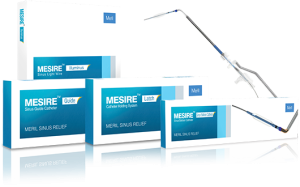

Sinus Balloon Dilation System

Features

Benefits of Balloon Sinus Dilation Procedure:

• Minimal invasive procedure
• Lesser blood loss
• Associated with fewer recurrences
• Post-operative recovery is faster and the patient can resume work quickly
• Safe and effective minimally invasive procedure for the treatment of chronic sinusitis

Indications

• The Mesire^TM Sinus Balloon Catheter is intended to dilate sinus ostia and spaces within the paranasal sinus cavities for diagnostics and therapeutic procedures.
• For children aged 17 and under, the balloon catheter system is intended to dilate sinus ostia and spaces associated with the maxillary sinus for diagnostics and therapeutic procedures.

RZ LED iLumen EndoVue 24"

Features:

• • 1920x1200 (WUXGA), 518x324mm, 16:10
  • 178° viewing angle, 49 W
  • 24 inch TFT LCD (LED)
  • 1920 x 1200 pixel (WUXGA)
  • 2 x DVI-D
  • 1 x SD/HD/3G-SDI (BNC)
  • 2 x SOG
  • 1 x VGA (D-sub)
  • 1 x C-Video (BNC)
  • 1 x S-Video (DIN)
  • 1 x Component (RGBS, YPbPr) (5 x BNC)

Full HD Digital Camera System F 1

Features:

• 3-Chip Full HD camera with latest MOS technology for brilliant picture quality
• Pure Natural Colors technology

• best possible picture transmission to medical grade monitors
• 3 programmable remote control buttons User-friendly multilingual menu allows a large variety of setups for individual procedures and surgeons preferences
• Full HD 60fps video recording
• Full HD image saving
• USB pen drive included
• Boost function
• On-screen-menu
• 3 user settings storable
• 5x digital zoom

LUMEN LED 1 High Intensity Light Source 180W

Features:

• More than 10.000h lamp lifetime
• Latest PHASER® – Technology
• Waterproof touch control panel
• High color rendering
• High luminance
• Daylight color temperature
• Low noise level
• No UV or IR light
• Low power consumption
• Video-IN terminal - 1 x VHS (BNC)

AIRFLOW A2 INSUFFLATOR

Feature:

• Gas Flow - 20L/min
• User-friendly interface
• Highest safety standard for patients
• Available with CO2 heating system
• Pre-insufflation mode for use with Verres Cannulas
• Non-heating unit features same gasflow rates as heating unit models
• Gas connection - UNF 7/16“ male
• Gas - Medical Grade Carbon Dioxide.

**SUCTION AND IRRIGATION PUMP P1000

Feature:

• Double roll pump for precise suction- and irrigation during Laparoscopic surgeries
• Also for extraction of smoke gases that arise when using lasers and HF devices
• Optional footswitch for comfortable operation during surgery
• Permits dispensing with mechanically sensitive trumpet valves that require elaborate cleaning
• Independently digital pre-settings for maximum suction and irrigation pressures
• Digital display of actual suction and irrigation pressures
• High efficiency with rates up to 3L/min
• Color coded tubing sets
• Standby function
• Irrigation Power - 0 - 3.0 ml/min
• Suction Power - 0 - 3.0 ml/min
• Pressure - 0 - 750 mmHg.

**DIATHERMY MACHINE 200W

Feature:

• Stable and Powerful Generators,
• Highest patient safety through REM system
• Digital value indicator of chosen power output
• Monopolar and Bipolar applications
• Activation through Hand- or Footswitch
• Safe application through color-coded membrane keypad
• Max output power CUT 200W – 250Ω
• Max output power ENHANCED 120W – 250Ω
• Max output power BLEND120W – 200Ω

• Max output power FORCED COAG 150W – 150Ω
• Max output power SOFT COAG 90W – 100Ω
• Max output power BIPOLAR COAG 80W – 50Ω
• Working frequency 600 kHz
• Patient circuit F
• Mains voltage 115-230 Vac
• Mains frequency 50-60 Hz

HIGH-END TROLLEY

Feature:

• Power columns for cables
• Endoscope Holder
• Variable height support arms
• Conductive rolls
• Optional doors and rear panel in order to protect valuable equipment
• Optional main on/off switch

Accessory

• Fibre Optic Light Guide Cable Ø 4,8mm, 3000mm
• Adaptor for Fibre Optic light guide Type RZ/Storz - connection to unit

Click Here To Download Catalogue

Minispir Light Specifications

• Minispir Light PC spirometer.
• For essential spirometry.
• Display flow/volume and volume/time curve in real time with before and after comparisons.
• Intuitive use.
• COPD and asthma screening.
• Includes post-medication test.
• Winspiro Light software.
• Export data effortlessly inc. via e-mail.
• With various motivational pictures for children.
• Measured parameters FVC, FEV1, FEV1%, FEV6, PEF, FEF25-75% FIVC, estimated age lungs, VC, IVC.
• USB powered.
• Dimensions: 14.2 x 4.97 x 2.6 cm.
• Weight: 65 g.
• Winspiro Light software.
• Export FVC and VC tests.
• Combined display flow/volume and volume/time curves.
• Displays the three best curves per examination.
• Quality of the tests in the result display.
• Automatic test interpretation (in result display and print).
• Traffic light system shows severity of the obstruction/restriction.

Click Here To Download Catalogue

• ABS ergonomical case and ancorage system tested to 10 g.
• Long life medical grade piston type suction pump. Oil-free and maintenance-free.
• Vacuum gauge of 0-100 kPa (0-760 mmHg).
• Precise and stable vacuum control knob.
• Indicator lights: ON, flashing, vacuum level, vacuum indicator and battery status.
• Maximum noise level: 49 + 1,5 dB (depending on model).
• Battery for long duration autonomy (consult models in which it is included). LED battery level lights.
• Collection jar with overflow safety valve in polycarbonate or polysulfone of 1 L (useful capacity 0.75 L) PC1/PSU1 or 1.75 L (useful capacity 1.30 L) -PC2/PSU2.
• Also available with holders compatible with the main disposable canister
• Hydrophobic bacteria filter, made of PTFE. With an efficiency of 99% in the retention of particles and bacteria of 99.99%. With PVC suction tube.
• ON/OFF swith with moisture protection.
• Equipment dimensions: 385 x 155 x 255 mm.
