Sonoscape HD-500 Gastrointestinal Video Endoscopy Stack
$0.00
Shipped from Abroad
Delivery & Availability:
Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Brands:: Sonoscape
Description

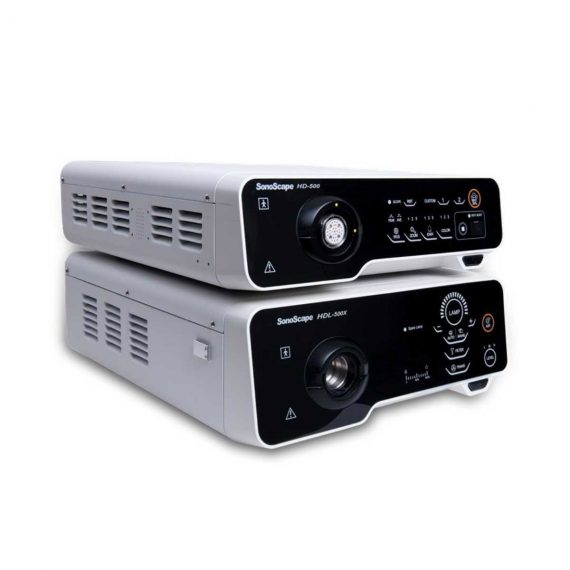

HD-500 VIDEO PROCESSOR
- HD video outputs: DVI, SDI, VGA
- Standard video outputs: S-Video, CVBS
- HD video recording: Built-in workstation
- Zoom/PBP: Yes/Yes
- Dimension (mm): 455x370x124
HDL-500X LIGHT SOURCE
- Main lamp: 300W xenon
- VIST chromoendoscopy: Versatile intelligent Staining Technology
- Transparency function: 7 seconds maximum brightness flicker
- Lifetime indicator: Yes
- Hot plugging: Endoscope switch without powering off
- Dimension (mm): 460x370x154

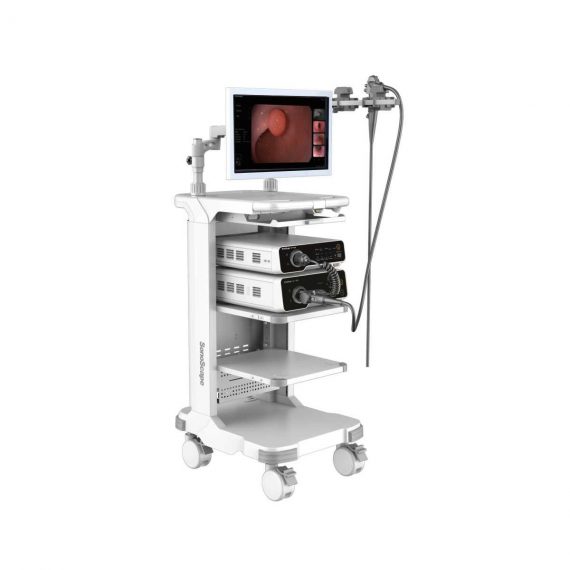

HDT-500 TROLLEY SYSTEM
- Master switch: Centralized power control
- Monitor: Versatile LCD monitor
- Extended storage space: 4-layer rack
- Scope holder: Ergonomic design scope holder
- Dimension (mm): 640x712x1332
- Optional: Isolation transformer
Dual monitor stand
500 SERIES ENDOSCOPES
| Parameter | Gastroscopes | Colonoscopes | ||||
| EG-500 | EG-500L | EC-500 | EC-500T | EC-500L | EC-500L/T | |
| Depth of view (mm) | 3-100 | 3-100 | ||||
| Field of view (°) | 140 | 140 | ||||
| Distal end diameter (mm) | 9.3 | 9.8 | 12 | 12 | 12.9 | 12.9 |
| Bending section diameter (mm) | 9.3 | 9.8 | 12.5 | 12.5 | 12.9 | 12.9 |
| Instrument channel diameter (mm) | 2.8 | 3.2 | 3.8 | 4.2 | ||
| Angulations (°) | Up/Down: 210/90 Left/right: 100/100 | Up/Down: 180/180
Left/Right: 160/160 |
||||
| Working length (mm) | 1050 | 1350 | 1700 | 1350 | 1700 | |
| Total length (nm) | 1350 | 1700 | 1950 | 1700 | 1950 | |
Click Here To Download Catalogue
