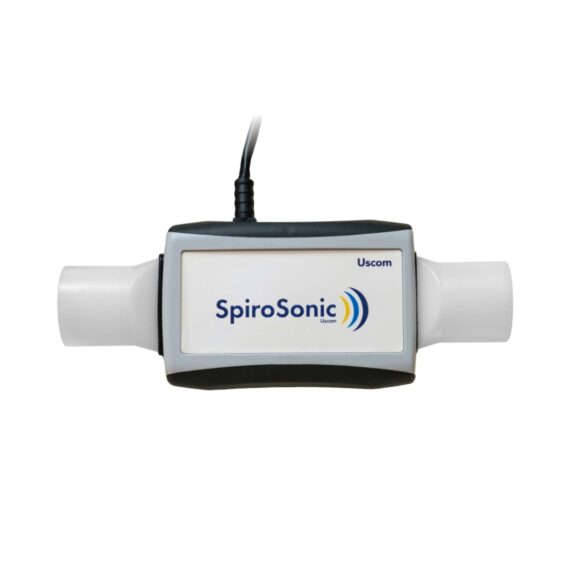

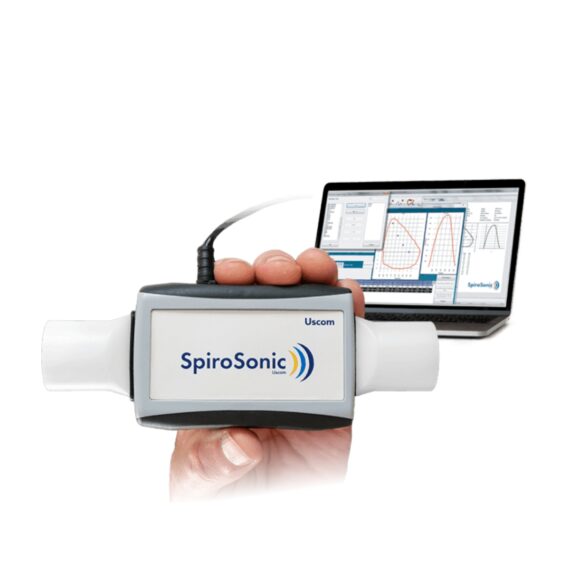

Spirosonic Flo Portable Spirometer

Brands: Spirosonic

~~$0.00~~

Shipped From Abroad

The SpiroSonic FLO is a high fidelity digital multi-path ultrasonic spirometer for pulmonary function diagnostic and monitoring designed for screening COPD and asthma

Delivery & Availability:
Typically 14-21 Working Days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF10335601237

Tags:

Deal of the day / Spirosonic Flo Spirometer

Brands:: Spirosonic

Description
Reviews (0)

Description

Spirosonic Flo Portable Spirometer is a high fidelity digital multi-path ultrasonic spirometer for pulmonary function diagnostic and monitoring designed for screening COPD and asthma.

Specifications:

Volume & Flow Accuracy- ±3% or 50 mL/s whichever is greater
Maximum Volume- ±20 L
Flow Range- ±14 L/s
Sample Rate- 100Hz Data / 100MHz Digital
Flow Tube Dimensions- Ø30 x 165 mm
Device Enclosure Dimensions- 30 x 60 x 95 mm
Device Weight- 135 grams
Communication- USB or serial (optional)
Power Supply- USB 5 V
Measurement principle – Ultrasonic multiple-path
Connection to PC via USB
Highly cost efficient design, robust, durable mechanics
No moving parts, durable factory calibration

Miscellaneous:

1.Standard Interfaces, easy integration to ECG, Tele-medical set-top-boxes.
2.Complete integration package with driver, communication support DLL and example source code available.
3.Automatic internal calibration, (external validation with calibration pump available).
4.Easy and efficient integration to HIS (Hospital Information Systems)
5.Software upgrade option
6.Plug & Play USB PC connection detection
7.Easy upgrade, standard interfaces
8.Long-term monitoring for home care use
9.Pharmaceutical testing subsystem
10.The inner surface of the flow tube is continuous, it can be disinfected with cold disinfecting liquid

Click Here To Download Catalogue
