Dental Unit / Medical Equipment

StarX Pro Intraoral Imaging

Brands: Xline-Imaging

~~$0.00~~

Shipped From Abroad

Brilliant images for instant diagnosis

StarX PRO sensors are the new Xline Intraoral sensors built with the latest technologies to deliver perfect images at every shot. Thanks to the USB direct connection, StarX PRO provides brilliant and real-time images with a simple and effective plug and play solution.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF103356013092-4

Brands:: Xline-Imaging

Description
Reviews (0)

Description

Wide active sensitive area

The slim outline and space-saving packaging facilitate the positioning and the visibility of the region of interest while positioning.

Long-lasting life

Flexible and resistant cable to grant a long sensor life.

Plug-and-play solution

Thanks to the USB direct connection, StarX PRO is easy to install and always provides brilliant and real-time images.

Product Features

Waterproof

The sensors are waterproof and dust resistant, easy to disinfect, clean and store.

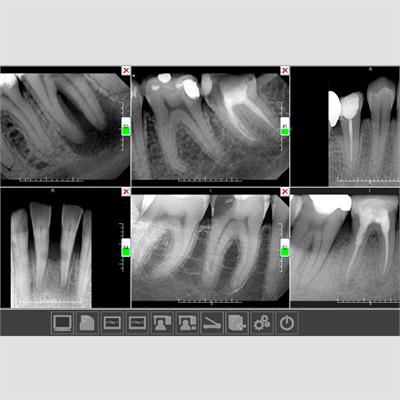

Full mouth Series and compatibility

Multiple functionalities, including the Full Mouth Series, are compatible with the majority of the Patient Management Software on the market and with the entire Xline digital imaging product range. OrisWin DG Suite will integrate perfectly into your existing dental clinic network.

Dicom Format

The DICOM image format and the multiple filter choices are key features for a customized workflow and a perfect diagnosis.

Dedicated positioners

A dedicated set of positioners and a tailored sensor holder are available for always perfect positioning, image exposure, and clinic workflow.

Technical Specifications

Sensor sizes	1,2
Measured resolution	20 lp/mm
Theoretical resolution	25 lp/mm
Technology	CMOS with CSI scintillator
Pixel Size	20 _m
Sensor Shape	Round edges for patient comfort
Sensor activation	Plug & play solution, always ready to acquire
Sensor cable length	2 m
Connectivity	USB 2.0
Dimensions	Size 1: 35,4×28,1×5,3mm; size 2: 39x25x5,6mm
Active area dimensions	Size 1: 20x30mm, size 2: 26x34mm
Software	OrisWin DG Suite
Operating System Support	Windows 10, Windows 8, Windows 7
Licenses	Up to 10 workstations running simultaneously with one license
DICOM support	Yes
Compatibility with Intraoral Generators	Yes, both AC and DC technology, 60-70kV

Click here to download Catalogue

Reviews

There are no reviews yet.

Be the first to review “StarX Pro Intraoral Imaging”

Quick Comparison

StarX Pro Intraoral Imaging remove Sonoscape E1 Ultrasound Machine With Two Probes remove ASPEL AsCARD Grey ECG Machine remove Sonoscape P15 Ultrasound Machine With Four Probes remove Jade Mobile X-ray machine (Analogue) remove DrGem Ceiling Mounted Digital X-ray remove

Name StarX Pro Intraoral Imaging remove Sonoscape E1 Ultrasound Machine With Two Probes remove ASPEL AsCARD Grey ECG Machine remove Sonoscape P15 Ultrasound Machine With Four Probes remove Jade Mobile X-ray machine (Analogue) remove DrGem Ceiling Mounted Digital X-ray remove


SKU SF103356013092-4 SF1033560012-20 SF1033560075-5 SF1033560012-8 SF1033560074-2 SF1033560074-4

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad

Brilliant images for instant diagnosis

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad SonoScape has developed a new probe and function for the E1 Exp. With these additions the E1 Exp will bring users a more efficient examination experience with satisfying image quality and a smooth workflow. Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad Electrocardiograph AsCARD Grey v.07.225 - is a 1, 3, 6, 12 channel ECG unit which enables to make electrocardiogram in full 12 leads. It is intended to conduct ECG examinations of adults and paediatric patients in all types of health care centres. ECG examination may be recorded in manual or automatic mode, with the possibility of analysis and interpretation. The device can be powered from 100 V ÷ 240 V mains supply or by an internal battery. Delivery & Availability: Typically 10 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock A feature-rich system inheriting the Wi-Sono high-end platform, the P15 uses an array of advanced tools to help enhance the image quality. It's a cost-effective, simplified console with an intuitive user interface and multiple intelligent functions. Delivery & Availability: Typically 2 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock JADE is one of the lightest portable X-ray systems on the market, allowing it to be used in any imaginable way including bedside, operating rooms, intensive care units and in veterinary fields. With a simple, easy-to-use operator console, three-way control, two-step foldable stand and auto lock system, JADE is a user-friendly portable X-ray system. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock The GXR-SD is a diagnostic digital radiography system that provides reliable high quality digital radiographic images with a reduced dose. The GXR-SD DR systems offer comprehensive digital solutions to all radiography needs, featuring ACQUIDR digital imaging system with stationary or portable digital flat-panel detectors as well as reliable high-frequency x-ray generators that are known worldwide for their excellent performance, lifetime and stability. Patient tables and wall stands are also offered. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

Designed for dental clinics seeking fast, high-quality intra-oral imaging, the StarX PRO uses CMOS technology with a Cesium Iodide (CSI) scintillator. Available in two sensor sizes (Size 1 and Size 2), it features rounded edges for patient comfort and a slim profile for easier placement in the oral cavity. Connectivity is via USB for immediate image acquisition, integrating with the OrisWin DG Suite software and supporting DICOM export for clinic workflow. Compatible with both AC and DC intra-oral X-ray generators (60-70 kV), it is waterproof, dust-resistant, and built for clinical durability.b Wide active sensitive area The slim outline and space-saving packaging facilitate the positioning and the visibility of the region of interest while positioning. Long-lasting life Flexible and resistant cable to grant a long sensor life. Plug-and-play solution Thanks to the USB direct connection, StarX PRO is easy to install and always provides brilliant and real-time images.

Product Features

Waterproof The sensors are waterproof and dust resistant, easy to disinfect, clean and store. Full mouth Series and compatibility Multiple functionalities, including the Full Mouth Series, are compatible with the majority of the Patient Management Software on the market and with the entire Xline digital imaging product range. OrisWin DG Suite will integrate perfectly into your existing dental clinic network. Dicom Format The DICOM image format and the multiple filter choices are key features for a customized workflow and a perfect diagnosis. Dedicated positioners A dedicated set of positioners and a tailored sensor holder are available for always perfect positioning, image exposure, and clinic workflow.

Technical Specifications

Sensor sizes	1,2
Measured resolution	20 lp/mm
Theoretical resolution	25 lp/mm
Technology	CMOS with CSI scintillator
Pixel Size	20 _m
Sensor Shape	Round edges for patient comfort
Sensor activation	Plug & play solution, always ready to acquire
Sensor cable length	2 m
Connectivity	USB 2.0
Dimensions	Size 1: 35,4x28,1x5,3mm; size 2: 39x25x5,6mm
Active area dimensions	Size 1: 20x30mm, size 2: 26x34mm
Software	OrisWin DG Suite
Operating System Support	Windows 10, Windows 8, Windows 7
Licenses	Up to 10 workstations running simultaneously with one license
DICOM support	Yes
Compatibility with Intraoral Generators	Yes, both AC and DC technology, 60-70kV

Click here to download Catalogue

DETAILS Efficient Diagnosis μ-Scan, Speckle Reduction & Edge Enhancement Spatial Compound Imaging PIH - Pure Inversion Harmonic Wide Scan - Enlarged Image Area Tissue-Specific Imaging SR Flow Ergonomic Designs Up to 2 Transducer Ports Light Weight and Compact 15.6 inch Anti-flickering HD LED Screen Tilting Monitor Angle Adjustment Backlit Keyboard and Intelligent Panel Long-lasting Battery for 90 mins Ease of Use Quick Boot Up Auto-Brightness Adjustment Auto Image Optimization Auto IMT Auto Trace Equipped Accessories Wi-Fi and Bluetooth Available DICOM 500GB Hard Disk Height Adjustable Trolley Durable, Carry-on Site Suitcase

Click Here To Download Catalogue

Electrocardiograph AsCARD Grey v.07.225 - is a 1, 3, 6, 12 channel ECG unit which enables to make electrocardiogram in full 12 leads. It is intended to conduct ECG examinations of adults and paediatric patients in all types of health care centres. ECG examination may be recorded in manual or automatic mode, with the possibility of analysis and interpretation. The device can be powered from 100 V ÷ 240 V mains supply or by an internal battery. Technical Specification:1. Visualisation of 1, 3, 6 or 12 ECG waveforms, analysis results and interpretations, examinations stored in memory. 2. Recording of 12 standard leads. 3. Print out in 1, 3, 6 or 12 ECG waveforms mode. Printing of a selected group:

1 channel - (I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6),
3 channels in standard format - (I-II-III, aVR-aVL-aVF, V1-V2-V3, V4-V5-V6),
3 channels in Cabrera format - (aVL-I-aVR, II-aVF-III, V1-V2-V3, V4-V5-V6),
6 channels in standard format - (I-II-III-aVR-aVL-aVF, V1-V2-V3-V4-V5-V6),
6 channels in Cabrera format - (aVL-I-aVR-II-aVF-III, V1-V2-V3-V4-V5-V6),
12 channels in standard format - (I-II-III-aVR-aVL-aVF-V1-V2-V3-V4-V5-V6),
12 channels in Cabrera format - (aVL-I-aVR-II-aVF-III-V1-V2-V3-V4-V5-V6).

4. Available types of examinations: manual, AUTO, SPIRO, automatic to clipboard, AUTOMANUAL, LONG (v.07.xx5). 5. Automatic record ECG signal from all 12 leads simultaneously, with save to temporary memory function, then depending on the settings: print out examination's result, analysis, interpretation or save to database. 6. Adjustable length of automatic examination recording — interval of 6–30 seconds. 7. Reverse recording in automatic examination to clipboard and in manual examination (v.07.xx5). 8. Rhythm print out in AUTO examination and automatic examination to clipboard. 9. Definable stages of examination according to set up parameters in AUTOMANUAL examination. 10. Storing an examination in memory, 1–15 minutes in LONG mode (v.07.xx5). 11. ECG printed directly from the electrocardiograph using PCL5/6 printer. 12. Printout from database. Possibility to printout additional information about examination or patient. 13. Alpha-numerical soft-key keyboard with functional buttons. 14. Possibility to set parameters: speed, sensitive, intensity of printing. 15. Menu displayed on the screen for easy operation using touch panel. 16. Database of patients and examinations. Internal memory up to 1000 patients, 1000 examinations. 17. Viewing of the memory-stored examinations on display, with the possibility of changing the number of leads, augmentation and speed. 18. Automatic analysis and interpretation in compliance with EN 60601-2-51 (CSE database) - Analysis and interpretation dependable on age & sex of a patient. 19. Up to 130 automatic examinations in battery mode. 20. Continuous heart rate (HR) measurement and display. 21. Adapted to direct operation on an open heart. 22. Device allows to enable and disable the following filters:

power line interference filter; filters available: 50 Hz, 60 Hz,
muscle interference filter; filters available: 25 Hz, 35 Hz, 45 Hz,
contour line filters; filters available: 0.15 Hz, 0.45 Hz, 0.75 Hz, 1.5 Hz,
the low-pass filter (v.07.224, v.07.324, v.07.225, v.07.325): 75 Hz, 100 Hz, 125 Hz, 150 Hz,
the auto-adaptive filter (v.07.224, v.07.324, v.07.225, v.07.325).

23. Detection of electrode detachment, independent for each channel (INOP control). 24. Detection of cardiac stimulator. 25. Sound signalling of detected stimulations of heart stimulator. 26. Protection against defibrillation pulse. 27. ECG recordings optionally saved on PenDrive, send on email or to other AsCARD via EKG-MAIL. 28. Wireless communication with the LAN or the Internet (v.07.3xx). 29. Wired communication with the LAN or the Internet. 30. Cooperation with CardioTEKA and CardioTEL. 31. Possibility of accepting orders for examination and sending back the results in HL7 standard via Internet (v.07.3xx). 32. Possibility of conducting preliminary spirometry examinations by using SPIRO-31 attachment. 33. EMR – keep performed examinations in specified period of time on external data storage (USB memory). Accessories 1. Limb electrodes, 4 pieces (EKK type). 2. Chest electrodes, 6 pieces (EPP type). 3. KEKG 30R ECG cable. 4. Main cable. 5. R-A4 paper, 112 mm wide (1 reel). 6. ECG gel. 7. Operation manual.

Click Here To Download Catalogue

DETAILS Super Wide-bandwidth Platform Inheriting Wi-sono's ultra-wide system platform and with the advanced probe technology, high-resolution and deep penetration images are provided for precision medicine. Spatial Compound Imaging Spatial Compound Imaging utilizes several lines of sight for optimal contrast resolution, speckle reduction and border detection, with which P15 is ideal for superficial and abdominal imaging with better clarity and improved continuity of structures. μ-Scan+ The new generation μ-Scan imaging technology gives you better image quality by reducing noise, improving signal strength and improving visualization. Dynamic Color Dynamic color improves upon already existing color Doppler technologies for a clearer capture of color flow and detailed visualization of even tiny veins with lower velocities. Real-time Panoramic With real-time panoramic, you can acquire an extended field of view for large organs or long vessels for easy measurement and diagnostic efficiency. Accomplished in real-time for the convenience of the sonographers, any mistake can also be easily back tracked and corrected without interrupting the scan. 3D/4D Outstanding volume performance with speed and convenience makes P15 outshine others on volume imaging. Tissue Doppler Imaging Tissue Doppler Imaging allows clinical doctors to quantitatively evaluate local myocardial movements and functions, facilitating them with the ability to analyze and compare the motions of the different parts of the patient's heart. Auto IMT Quick measurement of intra-media vessel thickness ensures good reproducibility and high diagnostic efficiency.

Click Here To Download Catalogue

JADE Mobile X-ray machine is one of the lightest portable X-ray systems on the market, allowing it to be used in any imaginable way including bedside, operating rooms, intensive care units and veterinary fields. With a simple, easy-to-use operator console, three-way control, two-step foldable stand and auto-lock system, the JADE Mobile X-ray machine is a user-friendly portable X-ray system. Convenient & Intuitive Operation: JADE is one of the lightest portable X-ray systems on the market, allowing it to be used in any imaginable way including bedside, operating rooms, intensive care units and in veterinary fields. With a simple, easy-to-use operator console, three-way control, two-step foldable stand and auto-lock system, JADE is a user-friendly portable X-ray system. Compact & Powerful Design: JADE Mobile X-ray machine is an innovative, highly versatile portable X-ray system suitable for a variety of clinical uses. Utilizing the unique technology used in DRGEM’s universally recognized X-ray generators, JADE is a compact but powerful unit with a 4kW output and thoughtfully designed components to increase efficiency and maximize workflow. The core part of X-ray source adopts high-quality tube assembly, X-ray collimator and high frequency X-ray generator with excellent performance, lifetime and stability. Features:

Vehicle loadable
Wheel lock
Automatic tube arm lock at any angle
Storage space for cassettes or detectors
User Programmable APR, save up to 9 APR settings
Three way X-ray exposure
USB interface & Bluetooth
Remote control (Option)
5kg including X-ray unit, collimator and stand
Maximum hight of 228.6cm
Exposure Hand Switch
Foldable, two-step stand

Technical Specification:

Power Rating - 4kW,
100kHz, high frequency X-ray Generator
kVp Range - Maximum 140kVp
mAs Range - 0.1-250mAs
mA Range – 10 to 100mA
330~2000mm FD
Collimator with 30 seconds LED lamp timer

Click Here To Download Catalogue

DrGem Ceiling Mounted Digital X-ray is a diagnostic digital radiography system that provides reliable high quality digital radiographic images with a reduced dose. The GXR-SD DR systems offer comprehensive digital solutions to all radiography needs, featuring ACQUIDR digital imaging system with stationary or portable digital flat-panel detectors as well as reliable high-frequency x-ray generators that are known worldwide for their excellent performance, lifetime and stability. Patient tables and wall stands are also offered. Features:

TS-CSA-A (Vertical movement, 1.6m stroke, rail length 3x4meter) including HV cable 15m
WBS-TA: Vertical movement

V Stroke:1,450mm in Uprigh Bucky Position,
1,526mm in Horizontal Bucky position.

PBT-4 is a 4 way Floating Tabletop. A large tabletop with extended travel enables all radiography studies with minimal patient movement. Fully fat tabletop without a frame on the edge makes cleanliness and odors free
Digital Flat Panel Detector (FPD) – Wireless 17X14 (Csl, 4336W) with Auto Exposure Detection (AED) function, there is no DR trigger cable between detector and generator.
Full Featured Imaging Software & Excellent Digital Image Processing:

Provides convenient user interface and easy operation
Anatomical view-based digital image processing automatically optimizes and enhances the quality of the captured image for the pictured anatomy.
Radiographic stand & automatic collimator control function
DICOM 3.0 networking interface includes Worklist, Print, Store, Query for integration with any PACS or RIS

Included – Software, HP Laptop Computer

CPU≥3.2GHz
Memory capacity：≥4GB
Hard drive capacity ：≥500 GB
Resolution: 1280 x 1024
Display size： 21 inch color LCD screen
64 bit Windows 10 operation system
Core: i5

Technical Specification:

Power Rating - 32KW
Generator - GXR-32S
Rotor - Dual Speed Starter(DSS)
Input Power - 400/480VAC, Three phase
Line Frequency - 50/60Hz
X-ray tube - DXT-12M, (0.6/1.2mm, 300kHU)
Tube Voltage - 40 to 150kV, 1kV Step
Tube Current – 10 to 640mA
Output - 640mA@81kV, 500mA@104kV, 400mA@130kV, 320mA@150kV
Time Range - 1ms to 10s
mAs Range - 0.1 to 800mAs
Reproducibility - Coecient of Variation : kV < 0.005, Time < 0.005,mAs < 0.01
Accuracy - kV < ±(1%+1kV), mA < ±(3%+1mA), Time <±(1%+0.5ms), mAs < ±(3%+0.1mAs)
Linearity - Coecient of Linearity < 0.01 : CL = (X1-X2)/(X1+X2), where X is mR/mAs
Mechanical Parts:

-TS-CSA-A (Vertical movement, 1.6m, stroke rail length 3x4meter) including HV cable 15m - PBT-4: 4 way Floating Tabletop. - WBS-TA: a. Vertical movement

V Stroke:1,450mm in Upright Bucky
Position, 1,526mm in Horizontal Bucky position.

- HVC-15: 15M HV cable - Auto Collimator
