Stellaris 3D Extraoral Imaging

Brands: Xline-Imaging

~~$0.00~~

Shipped From Abroad

Stellaris 3D & 3D Ceph

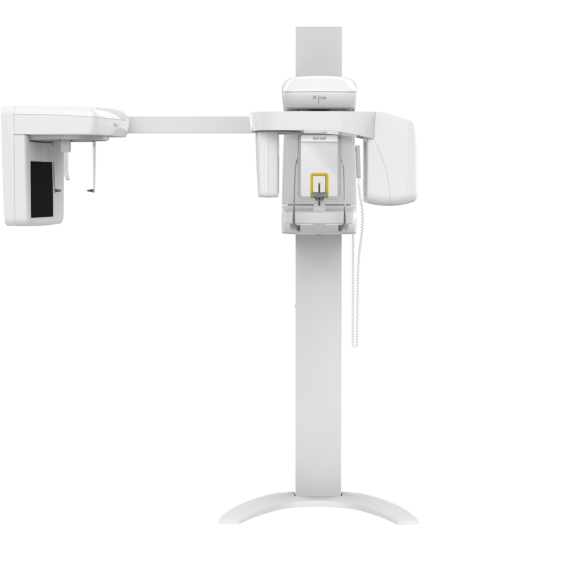

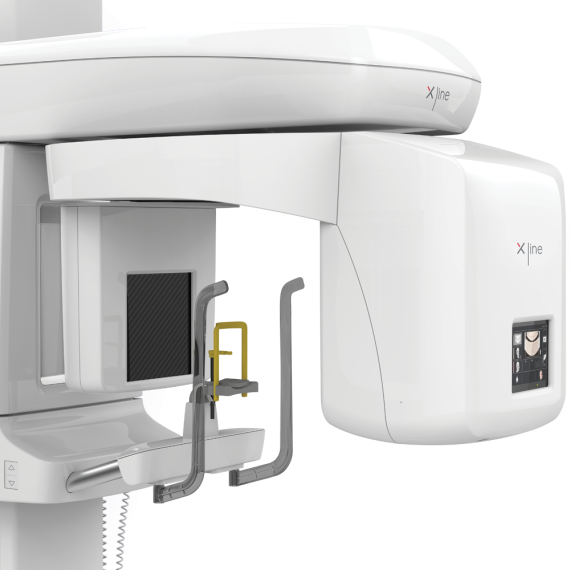

Stellaris 3D is a complete and compact fully upgradeable 3D CBCT, Panoramic and Cephalometric system, which covers an entire range of applications – from endodontics, periodontology, surgery, implantology to orthodontics – everything you need in your daily practice.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF103356013092-3

Brands:: Xline-Imaging

Description
Reviews (0)

Description

This advanced imaging unit supports panoramic (2D), volumetric (3D CBCT), and cephalometric exams in one system, allowing dental practices to expand diagnostics without adding multiple machines. It offers multiple fields of view (FOVs) covering small volumes (e.g., endodontic) to large (full-jaw or sinuses), child and adult modes, and high-definition or low-dose eco modes. The system features a modern sensor array, smooth kinematic movement, touchscreen plus PC control, ambient lighting, and wheelchair-accessible standing or sitting patient options. Upgrade pathways allow later addition of ceph-arm or enhanced volumes, making it ideal for evolving clinics.

Features

Ready for Every Diagnosis

Stellaris 3D covers a variety of diagnostics in 2D, 3D and Ceph with multiple fields of view, programs for panoramic examinations and cephalometric scans.

Compact and Modern

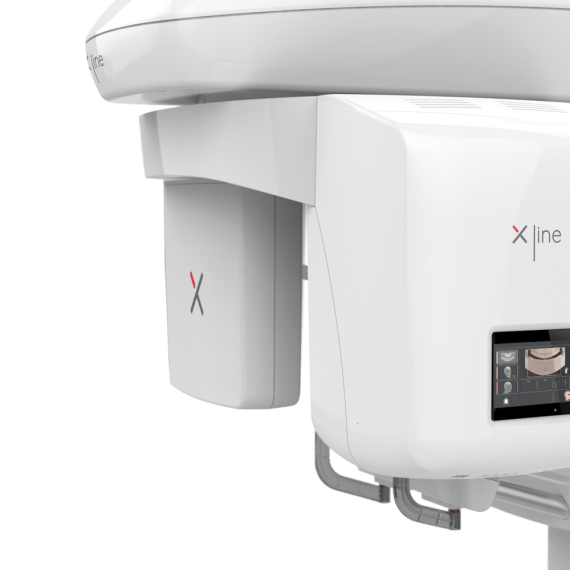

The minimalist, elegant, space-saving design allows installation of Stellaris 3D in areas where conventional devices would not fit.

Power of Touch

Control of the system is available from your PC screen as well as on the unit’s touchscreen, allowing straightforward program selection with hints for correct positioning.

Product Features

8 different FOV’s for Your Daily Needs

Stellaris 3D covers a complete range of CBCT programs for various applications – from endodontics through surgery and implantology to bone augmentations.

Ambient Glow

Ambient lighting creates a comfortable atmosphere for the patient and allows to monitor the unit status from a distance.

High Definition and ECO Programs

Adult and, more importantly, child programs are crucial for ECO low dose examinations, allowing high diagnostic image quality for both overview and demanding diagnostic tasks.

Advanced Technology

Latest sensor design, technology and unit robotics have been used to achieve high precision level of detail and smooth, quiet operation. The machine allows for repeated exposures without having to wait.

Technical Specifications

Sensor Technology	CMOS Flat Panel, CSI Flat Panel for ceph
Pixel size	100 µm
Voxel Size	80 µm
Focal Spot	0.5 (IEC 336 / 1997)
Tube Voltage	60 – 86 kV
Tube Current	2.5 – 10 mA
Exposure time 2D	4.6 – 14.2 seconds
Exposure time 3D	5 – 16.9 seconds
Exposure Time Ceph One-Shot	0,5s adult, 0,2s child
3D Active Sensor Area	160×160 mm
Ceph Image Size	240×300 mm
Volume size 3D	5×6,5, 7×6,5, 6×10, 8×6,5, 8×10, 11×6,5, 11×10
Weight	109kg without ceph, 137kg with ceph
Panoramic Programs	in total 9: adult pano, child pano, dentition, BW, TMJ, sinuses, half dentition left, half dentition right, anterior teeth.
3D Programs	in total 27: adult full, child full, adult and child upper and lower jaw, adult and child sinuses, surgical and implant volume front, left and right, hemi-arc left and right, upper and lower, ENDO volume in 6 different positions, TMJ right and left.
Ceph Programs	LL 30×24, LL18x24, AP, PA, Carpus
Patient Sizes	Child, teenager, woman, man
Software	Stellaris PRO
Features	3 in 1 or 2 in 1 upgradeable to 3 in 1
Footprint	140×110 cm without CEPH, 240 x 110cm with CEPH
Patient position	Standing or sitting
Wheelchair acessible	Yes

Technical Drawing

Click here to download Catalogue
