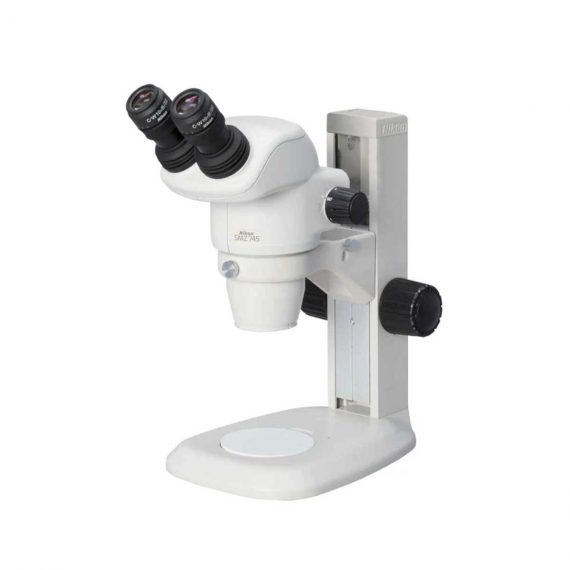

Nikon SMZ745 Stereoscopic Microscope

Brands: Nikon

~~$0.00~~

In stock

Nikon SMZ745 Stereoscopic Microscope: Featuring a zoom magnification of 7.5X and a long working distance of 115mm, Nikon SMZ745 microscopes are well suited for both industrial and biomedical applications. The adoption of a new total reflection prism produces brighter images with higher contrast, and the anti-mold design allows the microscope to be used in environments where the temperature and humidity are high. The SMZ-745T trinocular model comes equipped with a microscope camera port and a built-in 0.55x c-mount adapter, permitting direct mounting of Nikon DS Series Digital Cameras.

Delivery & Availability:
Typically 2 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560084-49

Tags:

Laboratory / Nikon / Stereo microscope

Brands:: Nikon

Description
Reviews (0)

Description

Nikon SMZ745 Stereoscopic Microscope: Featuring a zoom magnification of 7.5X and a long working distance of 115mm, Nikon SMZ745 microscopes are well suited for both industrial and biomedical applications. The adoption of a new total reflection prism produces brighter images with higher contrast, and the anti-mold design allows the microscope to be used in environments where the temperature and humidity are high. The SMZ-745 trinocular model comes equipped with a microscope camera port and a built-in 0.55x c-mount adapter, permitting direct mounting of Nikon DS Series Digital Cameras.

Features:

Trinocular optical head for monitoring and digital imaging
Impressive 7.5x zoom magnification
115 mm working distance
Maximum ergonomics
Rugged, durable design suits a variety of applications and environments

Technical Specifications:

Optical system	Greenough optical system
Total magnification	3.35-300x, depending on eyepiece and auxiliary objective used
Vertical tube	Built-in C-mount 0.55x magnification lens (F.N. 11), compatible with 2/3 in. or smaller CCD
Eyepiece tube	Fixed type
Eyepiece inclination	45°
Interpupillary distance adjustment	52-75 mm
Eyepieces (with diopter adjustment)	C-W 10xB (F.N. 22), C-W 15x (F.N. 16), C-W 20x (F.N. 12.5), C-W 30x (F.N. 7)
Zooming ratio	7.5:1 (approx.)
Zooming range	0.67-5x
Auxiliary objectives	G-AL 0.5x (W.D. 211 mm), G-AL 0.7x (W.D. 150 mm), G-AL 1.5x (W.D. 61 mm), G-AL 2x (W.D. 43.5 mm)
Working distance	115 mm
