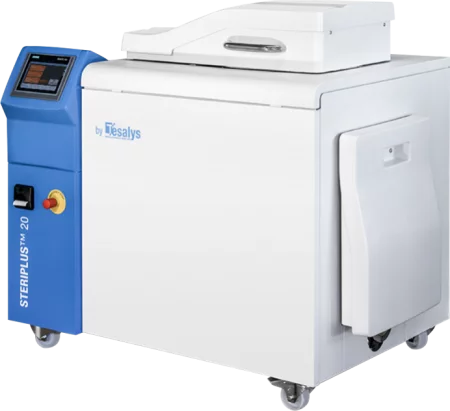

STERIPLUS 20

Brands: Tesalys

~~$0.00~~

Shipped From Abroad

INTEGRATED INFECTIOUS WASTE PRE-SHREDDING AND STEAM STERILIZATION SYSTEM

Tesalys STERIPLUS ™ systems are the ideal solution to safely inactivate your infectious waste on site.
Their integrated TESASHRED ™ shredding system not only allows a consequent reduction in the volume and weight of waste, but also guarantees their treatment at heart.

Click here to download Catalogue

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF103356013097-1

Tag:

Deal of the day

Brands:: Tesalys

Description
Reviews (0)

Description

STERIPLUS 20

On-site infectious risk waste treatment solution

Features

Compact

The smallest machine in our range STERIPLUS™, the STERIPLUS™ 20 offers an efficient solution for on-site waste treatment.

Suitable for small and medium spaces

It can be easily installed in a small room. It is perfectly adapted to small and medium structures, such as laboratories or medical centres.

Economic

The STERIPLUS™ 20 is very energy-efficient and does not require much water.

Technical Data

LOADING CHAMBER CAPACITY	20 L
LOADING CHAMBER USEFUL DIMENSIONS (W x D x H)	320 x 247 x 273 mm
LOADING CAPACITY (containers)	1 X TESABOX 20
TOTAL CYCLE TIME (NF X30-503-1 standard) (1)	30 to 35 min
TOTAL CYCLE TIME in working conditions (2)	30 to 50 min.
LOADING CAPACITY (KG/CYCLE)	1,6 to 2,4 kg/cycle – Based on an average waste density of 0,08 to 0,12kg/L for Healthcare Waste 2,4 to 4 kg/cycle – Based on an average waste density of 0,12 to 0,2kg/L for Lab/Humid/Liquid Waste
TREATMENT CAPACITY (KG/H) (3)	2 to 3 kg/h – Based on an average waste density of 0,08 to 0,12kg/L for Healthcare Waste 3 to 5 kg/h – Based on an average waste density of 0,12 to 0,2kg/L for Lab/Humid/Liquid Waste
MAX QUANTITY OF LIQUID RECOMMENDED PER CYCLE (4)	6 L
EXTERNAL DIMENSIONS (w x d x h)	1300 x 895 x 1210 mm
NET WEIGHT	530 kg
LOADING CHAMBER	Stainless steel with PTFE coating
TREATMENT CHAMBER	AISI 304L stainless steel
STEAM GENERATOR	AISI 304L stainless steel (chamber) & Highly corrosion-resistant Hastelloy®
WATER SOFTENER	Optional (external)
WATER BOOSTER PUMP AND AIR COMPRESSOR	Built-in
WASTE SHREDDER	Structure: AISI 304L stainless steel & Blades: High-strength steel
PIPING	Stainless steel/PTFE flexible hosing
CHASSIS	Painted steel
BODYWORK	Composite material / Painted steel
CYCLE TRACEABILITY – THROUGH PRINTOUT	Built-in
USB PORT	Built-in

Utilities

WATER
Requirements	Softened water (4-8°TH)
Consumption	5 liters / cycle

ELECTRICITY
Requirements	380-400 V III N, 50Hz/60Hz, 10 kW
Consumption	1 kW/h / cycle
DRAIN	ø 32 mm internal (heat-resistant)
STEAM/COMPRESSED AIR	Produced by the integrated steam generator and air compressor; no external connection required.

Accessories

Maintenance parts kit STERIPLUS^TM
System waste unloading system
Adaptation to different voltages / frequencies
Special packaging

Reviews

There are no reviews yet.

Be the first to review “STERIPLUS 20”
