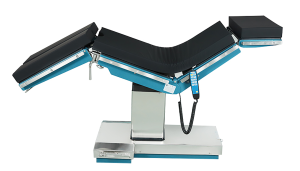

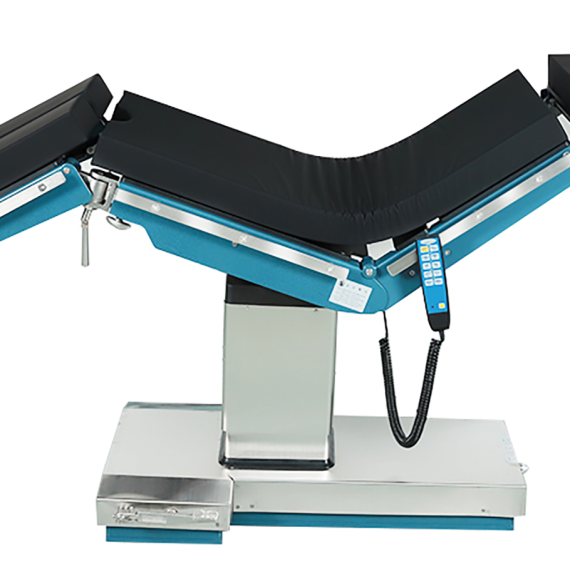

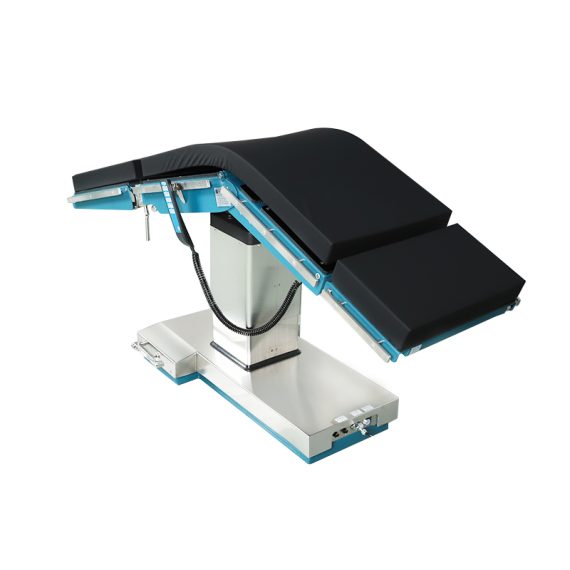

STRATOS A-2 Operating Table
$0.00
Shipped From Abroad
The Stratos A-2 is a premium electro-hydraulic surgical table designed for diverse procedures, offering motorized height and tilt control, C-arm compatible radiolucent tabletop, and robust stainless-steel construction to support advanced surgical settings.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
The STRATOS A-2 operating table utilizes advanced microcomputer control technology and electrohydraulic drive, replacing traditional electric actuator systems. This ensures precise positioning, uniform movement speed, and greater stability. Equipped with a high-pressure hydraulic system, it offers an impressive load capacity of up to 350 kg, guaranteeing excellent performance and durability. The head and foot plates are pneumatically adjustable, enabling comfortable and precise positioning. For patient comfort, the table features an 80 mm double-layer memory foam mattress that evenly distributes body weight, reducing the risk of pressure sores during prolonged procedures. The seamless, antibacterial mattress surface facilitates hygiene and cleaning. The tabletop frame is made of high-quality steel plate, while the base and lifting column covers are made of 304 stainless steel, ensuring durability, impact resistance, and ease of disinfection. The T-shaped base provides ample legroom for medical personnel, increasing comfort during procedures. The base’s braking system, operated by a foot pedal, ensures the table remains stable. An optional electric braking system is also available for greater ease of use.
Features
-
Electro-hydraulic drive for smooth, powerful table movements
-
Height adjustment, Trendelenburg/reverse Trendelenburg, lateral tilt, and longitudinal slide
-
Radiolucent tabletop design enabling optimal C-arm imaging access
-
Ergonomic base shape to allow a close surgeon’s approach and imaging equipment clearance
-
Modular tabletop segments that can be swapped for specific surgical disciplines
-
High-quality stainless-steel construction for durability and ease of disinfection
-
Remote control and/or wired hand control for quick positioning
-
Capacity to support high patient weights (typical for advanced surgical tables)
-
Compatible with a wide range of surgical accessories and attachments
Specifications
| Table model: Stratos A2 | |
| Length | 2000 mm |
| Width | 580 mm |
| Minimum height | 700 mm |
| Maximum height | 1000 mm |
| Trendelenburg / anti-Trendelenburg | 30° |
| Lateral tilt | 20° |
| Longitudinal travel | 300 mm |
| Maximum load (dynamic) | 350 kg |
