Stroboscopy FULL HD Endoscope System YKD-9002
$0.00
Shipped From China
The YKD-9002 Full HD Stroboscopy Endoscope Camera System features a Sony CMOS sensor, integrated LED cold light source, and USB recording. Designed for laryngoscopy and endoscopic procedures, it delivers clear 1080p imaging with stroboscopic compatibility for enhanced diagnostic accuracy.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description

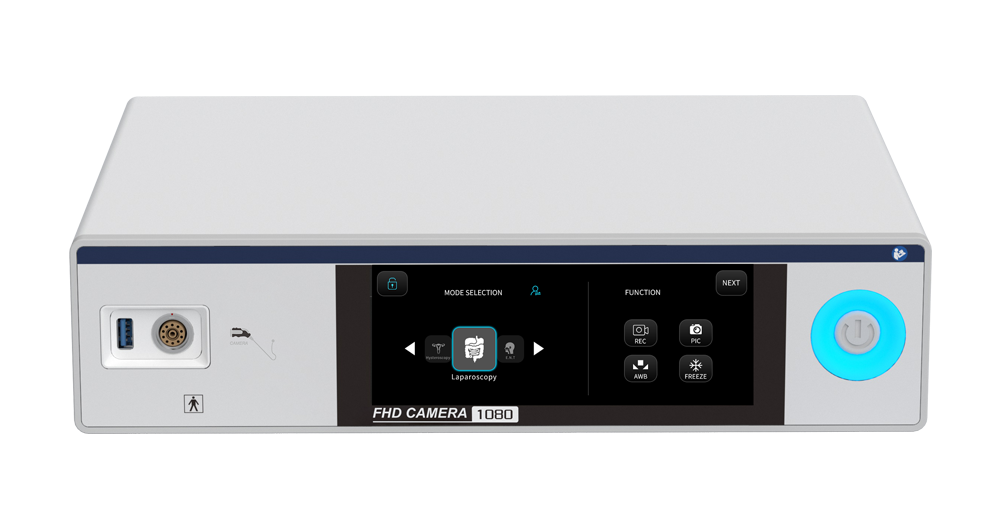

The YKD-9002 Full HD Endoscope Camera System is a specialized imaging solution designed for stroboscopic laryngoscopy and general endoscopic procedures. It features a 1/2.3-inch Sony CMOS sensor that delivers sharp 1920×1080 images with accurate color reproduction. The system integrates a camera head, an LED cold light source, and recording functionality into one unit for efficient workflow. With built-in USB storage, 11 surgical modes, and an IPX8 waterproof camera head, it provides reliable performance for ENT diagnostics and minimally invasive procedures.
Key Features
-
1/2.3″ Sony CMOS Full HD image sensor
-
Full HD resolution (1920 × 1080) imaging
-
Compatible with a stroboscopic light source for laryngoscopy
-
Integrated LED cold light source and camera system
-
Built-in USB storage for photo and video recording
-
11 selectable surgical modes
-
IPX8 waterproof camera head
-
Progressive scanning for smooth imaging
-
Touch-button interface with zoom, freeze, and white balance
-
Multiple outputs: HDMI, DVI, CVBS
YKD-9002 FULL HD Endoscope System
● NEW SONY CMOS FULL HD Image Sensor
● Can be matched with a stroboscopic light source for stroboscopic laryngoscopy
● FHD camera head and LED cold light source integrated
● Built-in USB FULL HD image storage, Integrated photo/video recording system
● 11 surgical modes are optional
● IPX8 waterproof camera
YKD-9029 Stroboscopy Light Source
● Advanced Stroboscopy Algorithm – Dual-Filter system reduces flickering and blackouts
● Great Illumination – Provides bright viewing in both permanent and stroboscopy modes
● Adjustable Settings – Settings such as Duty Cycle and Strobe Phase offer a range of options depending on the clinical application
● Noise-free Design – Minimized side tone distraction during examination
● Easy-to-Use – Product design simplifies setup and use of YKD-9029 during procedures
● Microphone Options – Choose throat microphone to find the right solution for every diagnostic situation
| Camera head | Full HD imaging(1920×1080) IPX8 waterproof, Full HD optical Coupler C-mount standard. |
| Video system | Image resolution: FHD 1920× 1080 Horizontal resolution: 1200TVL
SNR:60DB,Tolerance20% |
| Recording (Options) | Image format:JPG 1920×1080, Mpeg-4 (H.264 Codec): Image rate 60fps Connection:USB |
| Screen Size | 6.8 inch |
| Connections | Video Out Terminal, 1 DVI. 1HDM, 1*CVBS |
| Features | White Balance/Freeze Function/Zoom/Touch Button Screen/USB Storage/Photo Capture/Video Recording |
| Language | Chinese/English/Japanese/Korean/Russian/Spanish |
