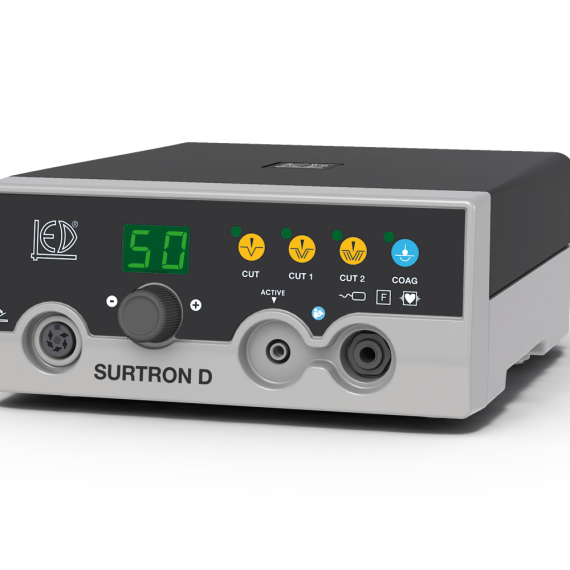

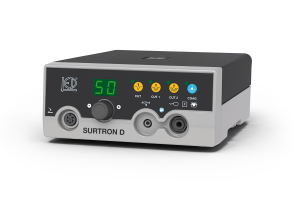

SURTRON 50D

• Max output power CUT 50 W – 400 Ω
• Max output power CUT 1 45 W – 400 Ω
• Max output power CUT 2 40 W – 400 Ω
• Max output power COAG 40 W – 400 Ω
• Working frequency 600 kHz
• Patient circuit F
• Selectable input voltage 115/230 VAC
• Main frequency 50-60 Hz
• Electrical input power: 280 VA
• Size WxHxD 190x85x239 mm
• Weight 2,5 Kgs

• Output power monitoring
• Self-check control

• EN60601-1
• EN60601-1-2
• EN60601-2-2
• Electrical Class: I CF
• MDR 2017/745/UE Class: II b

Features

Features

1. Intended for ablation,tissue modification, and coagulation of soft tissue in arthroscopic procedures such as hip,  shoulder, ankle, wrist, elbow, and knee. 2. The Extending shaft enables good visualization and easy insertion through subcutaneous tissue,and  well insulated coating guarantee its safety and reliability. 3.Irrigation/suction solution is available with a cannula and an adjustable flow control valve. 4. Tips in different shapes and angles fit in particular arthroscopic procedures. 5. Compatible with most electrosurgical generators.

Use Indication

This device should never be used when:

• There is visible evidence of damage to the exterior of the device such as cracked or damaged plastic or connector damage.
• These devices fail the inspection described herein.
• In the presence of flammable gases, flammable prep solutions or drapes. Oxidizing. Gases such as Nitrous Oxide (N2O), or in oxygen-riched environments.
• Do not use monopolar electrosurgery on small appendages, as in circumcision or finger surgery.

Features:

1. High Conductivity: They are made from materials that ensure efficient conduction of electrical current.
2. Large Surface Area: This helps in dispersing the current over a wide area, reducing the risk of burns.
3. Adhesive Backing: They usually have an adhesive side to securely attach to the patient's skin.
4. Flexible Design: They are designed to conform to the contours of the patient's body.
5. Safety Mechanisms: Modern pads often include features like dual-pad return electrodes for fail-safe operation.

Uses:

1. Completing the Electrical Circuit: They act as a return path for the electrical current used in electrosurgery.
2. Minimizing Burns: By dispersing the current, they help prevent burns at the surgical site.
3. Ensuring Patient Safety: They are crucial for the safe operation of electrosurgical units, especially in patients with electronic implants like pacemakers.
4. Versatile Applications: Used in various surgical procedures, including cutting, coagulating, and desiccating tissue.

Features

• Designed with the surgeon in mind
• Slim and lightweight, tapered ergonomic design, streamlined design.
• Slip-proof handling and water resistant Rocker or Push-Button Switch
• Switch and buttons designed for smooth activation
• Equipped with a range of monopolar cutting and coagulation electrodes to satisfy all users requirements.
• With hexagonal shape to protect against inadvertent twisting, the electrodes can be locked safely into place and are easily exchanged and replaced.

Features

1. LED light positioned between the electrodes enhances the vision during surgery.

Indications for Use

• Ensure that both electrodes are in contact with the tissue to be treated. Activation and saline flow occur simultaneously.
• Ensure that saline is flowing at the time of activation
• These devices should never be used when:
• There is visible evidence of damage to the exterior of the device such as cracked or damaged plastic or connector damage.
• These devices fail the inspection described herein.
• In the presence of flammable gases, flammable prep solutions or drapes. Oxidizing. Gases such as Nitrous Oxide (N2O), or in oxygen-riched environments.
• Do not use monopolar electrosurgery on small appendages, as in circumcision or finger surgery.
