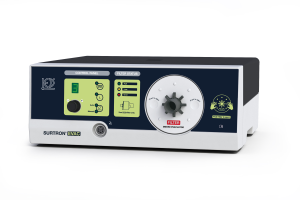

The SURTRON EVAC is a surgical smoke evacuation and filtration system developed by LED SpA. It is designed to efficiently remove and filter the smoke generated during electrosurgical procedures, enhancing both safety and visibility in the operating room.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description

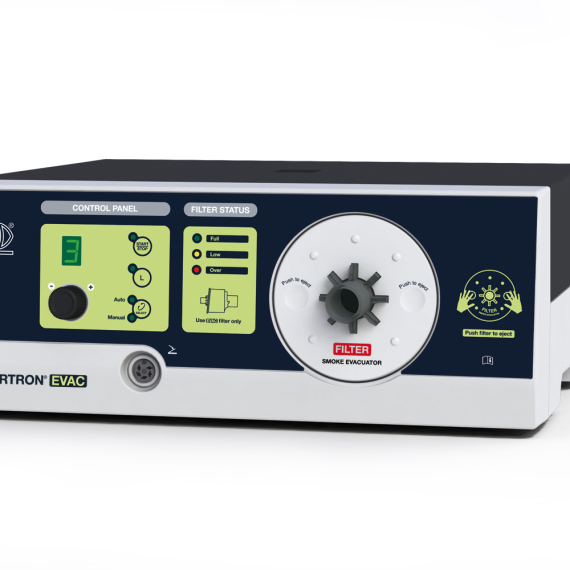

SURTRON EVAC is an aspiration and filtering system for the smoke produced during the surgical procedures. The smokes, generated during the surgical procedures, have a bad, strong, and long smell. These smokes consist of water vapour, organic gas, visible or invisible solid particles, and viral particles. So a good aspiration and filtration eliminates bad smells, reduces the bacteriologist and/or viral risks, and solves the particularly annoying problem of the optimal vision of the zone of the intervention, during the laparoscopic procedures. In SURTRON EVAC, the activation of the aspiration can be: AUTOMATIC, through an electronic system of survey of the activation of the high-frequency electrosurgical unit; or MANUAL, acting directly on the unit through a foot switch (optional). The flux of the aspiration can be regulated to be suitable for the singular necessities. For laparoscopic procedures, there is a specific function, quickly selectable. SURTRON EVAC has an electronic control of the aspiration with the indication of the status of the filters.
There are two different kinds of filters, quickly substitutable and constituted by a filtering ULPA type with an active carbon part dedicated to the elimination of the bad smells of the electrosurgical smokes and a connector of 7/8” (22mm). The filters have an electronic system for the control of the status of use.
The BLUE filter is the standard filter and it is included with the unit for the first time of use.
The RED filter is an optional spare part, created for a long time of use.
Technical Data
- Input voltage 230 VAC or 115 VAC
- Main frequency 50 Hz
- Electrical input power 800 VA
- Max vacuum flow rate 1000 LPM (35 CFM)
- Max static suction 250 mbar (83 in H2O)
- Filter type ULPA with active carbon
- Filter efficiency 99,999X%
- Particle diameter 0,12 micron
- Max vacuum flow rate with filter 300 LPM (11 CFM)
- Size WxHxD 370x144x319 mm
- Weight 4 Kg
