Electrosurgical Equipments / Surgery Unit

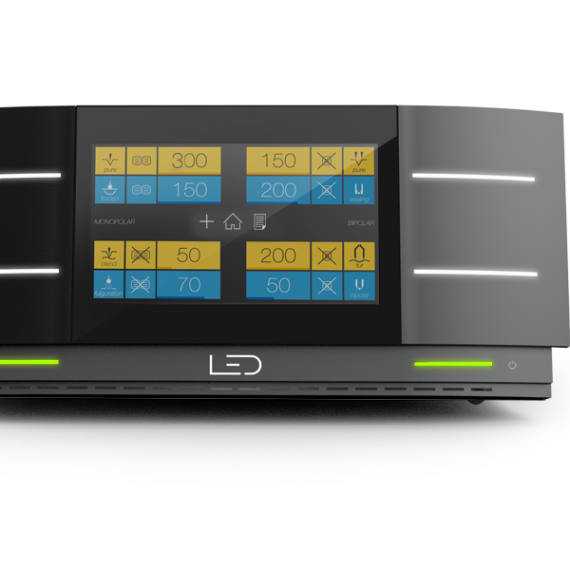

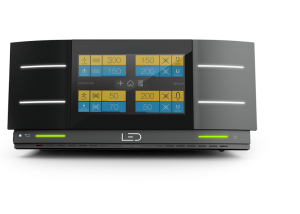

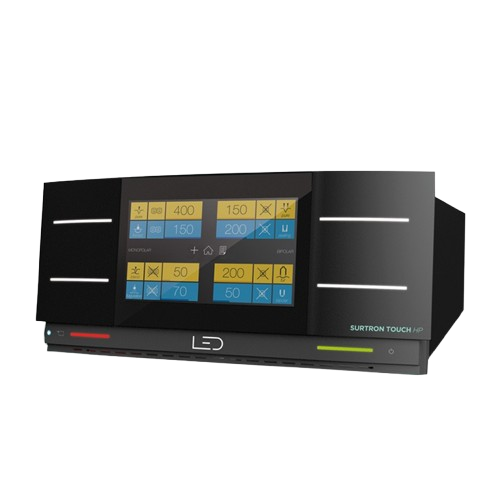

SURTRON TOUCH HP

Brands: LED Surtron

~~$0.00~~

Shipped From Abroad

The SURTRON TOUCH HP is a high-frequency electrosurgical unit developed by LED SpA, designed for advanced monopolar and bipolar surgical procedures. It integrates ergonomic design with cutting-edge technology to enhance surgical precision and safety.starkmed.com.au+6

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: LED Surtron

Description
Reviews (0)

Description

The Surtron Touch HP is one of the most advanced diathermy units from Led Spa; it comes with a 9-inch capacitive touch screen. The major objective behind developing this machine is to provide a simple, functional, and intuitive work experience. With a simple touch of the finger over the screen, healthcare professionals can customise the work setting. The diathermy machine can also change the power of Cut or Coag.
There are two monopolar outputs and two bipolar outputs, meaning that two surgeons can operate simultaneously. The vessel sealing can be done up to 7 mm. Wider monopolar and bipolar features are available. It has preset protocols, and new programs can be created. An inbuilt argon circuit is suitable for endoscopy and liver surgeries.
An open, minimal invasive/ laparoscopic procedure can be performed. It comes with the feature of Auto start and stop feature. In auto mode, bipolar can be used without connecting to the footswitch. Bipolar Micro coagulation is available in neuro and microsurgeries where there is a need for minimal power. The product is CE quality approved.

Features

Simultaneous activation of Monopolar and Bipolar
Contemporary dual monopolar
Contemporary dual bipolar
Integrated ARGON unit
Power control depending on impedance
Activating power with pedal and/or handpiece
Neutral-patient electrode contact control
Cutting function under saline solution TUR
Modular cut in wet conditions BLEND
VESSEL SEALING to clamp vessels up to 7 mm
Possibility of use for minimally invasive surgery
Monopolar / Bipolar functions
Autostart / Autostop in Bipolar modality
Adjusting the intensity of the sound

Technical Specifications

Function	Maximum Output Power
Monopolar CUT (PURE)	400 W at 300 Ω
Monopolar CUT (ENHANCED)	250 W at 300 Ω
Monopolar CUT-COAG (BLEND)	250 W at 200 Ω
Monopolar CUT (TUR)	300 W at 300 Ω
Monopolar COAG (FORCED)	150 W at 150 Ω
Monopolar COAG (SOFT)	150 W at 200 Ω
Monopolar COAG (FULGURATION)	100 W at 500 Ω
Monopolar COAG (SPRAY)	120 W at 1000 Ω
Bipolar CUT (PURE)	150 W at 100 Ω
Bipolar COAG (STANDARD)	150 W at 50 Ω
Bipolar COAG (SEALING)	250 W at 50 Ω
Working Frequency	360 kHz
ARGON Flow Regulation	0.2 – 10 LPM
ARGON Maximum Inlet Pressure	3.0 bar (43.5 psi)
Input Voltage	100 – 240 Vac
Mains Frequency	50 / 60 Hz
Electrical Input Power	1000 VA
Dimensions (WxHxD)	470 x 220 x 460 mm
Weight	13.5 kg
