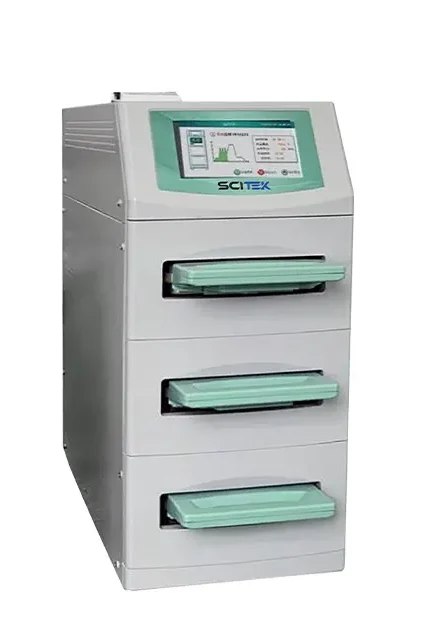

Three-layer Cassette Sterilizer

Brands: Scitek

~~$0.00~~

Shipped From Abroad

This specialist sterilization unit is designed to provide an efficient and reliable solution for sterilizing medical devices. Whether in hospital surgeries, dental clinics, laboratories, or other healthcare facilities, our cassette sterilizers meet stringent hygiene standards, ensuring that medical devices and equipment achieve the highest level of sterility before use. Choosing our cassette sterilizers means choosing an efficient, reliable, and safe sterilization solution. We are committed to providing healthcare organizations with superior device sterilization technology to ensure that patients and healthcare professionals are always kept in a sterile environment during medical procedures.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Sku:

SF1033560130127-12

Brands:: Scitek

Description
Reviews (0)

Description

Cassette Sterilizer Features:

The sterilization effect is reliable and rapid, positive pressure pulsating exhaust sterilization, and the entire sterilization process only takes 7-10 minutes. It is suitable for multi department instrument continuous surgery and emergency sterilization.
7-inch touch interface, graphical operation. The system operation status is displayed on the screen, and the sterilization program can be safely interrupted at any time.
Compact design, saving space. Each layer is independently controlled.
Multi level permission management ensures the authenticity and effectiveness of sterilization data. Network communication interface, which can be connected to the traceability system.
Equipped with a built-in self-priming circulating water tank and automatic water inlet function, the program operation is not affected by the volume of the water tank, and it is equipped with a low water level detector to prevent the evaporator from dry burning.
Built in thermal printer, real-time recording of sterilization process parameters, with the function of recording and storing the last 60 running processes.
Equipped with USB interface for data storage.
Self inspection system. Once a problem occurs during operation, the system automatically terminates operation and displays a fault code on the screen.
Customize the settings program to meet the sterilization requirements of various large and special instruments.

Cassette Sterilizer Applications:

Cassette sterilizers are commonly used in various medical and laboratory settings for the sterilization of medical instruments, equipment, and materials. They are designed to provide efficient and reliable sterilization by utilizing heat and pressure to eliminate bacteria, viruses, and other microorganisms. These sterilizers are widely employed in hospitals, dental clinics, research laboratories, and other healthcare facilities to ensure the safety and sterility of medical tools and equipment before their use in patient care or research procedures.

The three-layer cassette sterilizers has three times the sterilization capacity, saving space, and each layer is independently controlled.

Cassette Sterilizer Specifications:

Model	ST-2000TC	ST-5000TC	ST-6000TC
External Size (WxDxH)(mm)	280×600×660
Cassette External Size (WxDxH)(mm)	196×390×40	196×480×80	196x×196×80
Cassette Internal Size (WxDxH)(mm)	180×280×38	180×380×78	180×480×78
Cassette Capacity	1.8Lx3	5.2Lx3	6.0Lx3
Rated Working Temperature	138℃
Rated Working Pressure	242kPa
Working Temperature Range	115 ℃~135 ℃
Water Tank Capacity	2.5L
Power Supply	AC 220V ± 22V; 50Hz ± 1Hz;
Working Medium	Water vapor
Water Source Supply	Ultrapure water, deionized water, laboratory water, distilled water, purified water
Working Mode	Intermittent operation (≤6 cycles/hour)
Atmospheric Pressure Range	70.0kPa~106.0kPa
Environmental Temperature Range	+5 ℃ to+40 ℃
Working Relative Humidity	≤ 85%
External Size (WxDxH)(mm)	280×600×660
Package Size (WxDxH)(mm)	460x710x810
Net Weight(kg)	60	84	86
Gross Weight	80	104	106

Product Data

Cassette Capacity : 1.8Lx3; 5.2Lx3; 6.0Lx3
Rated Working Temperature : 138℃
Working Temperature Range : 115 ℃~135 ℃
Water Tank Capacity : 2.5L
Working Medium : Water vapor
